842-096 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 96POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Color	Card Type	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows [custom]	Mounting Type	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions/Bay/Row	Termination	Read Out	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features

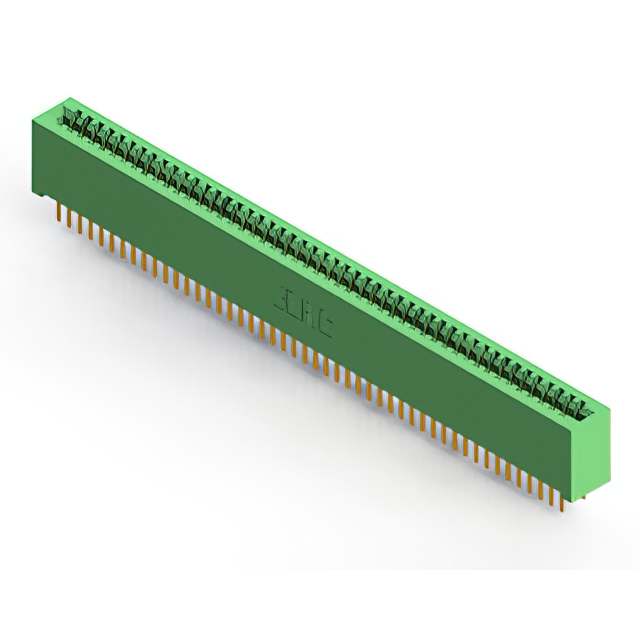

EDAC Inc. 842-096-520-201	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual
EDAC Inc. 842-096-520-204	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 842-096-559-204	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Right Angle Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
EDAC Inc. 842-096-520-212	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 842-096-556-202	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Board Edge Straddle Mount	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Card Extender

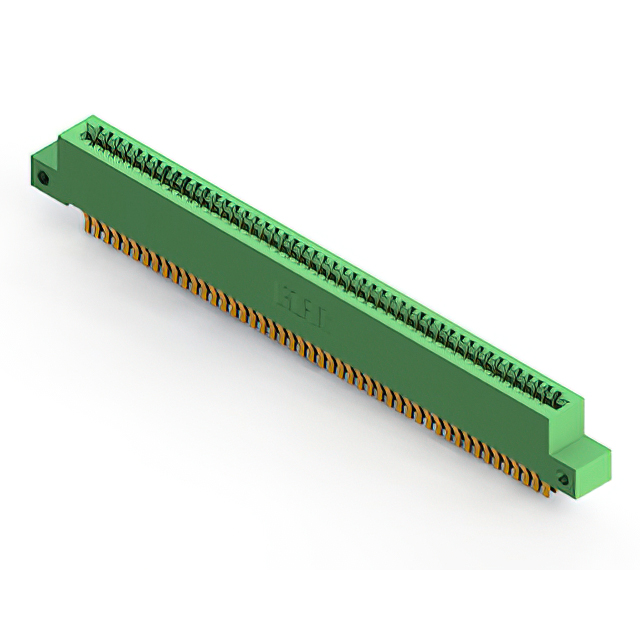

EDAC Inc. 842-096-560-212	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Board Edge Straddle Mount	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	Card Extender
EDAC Inc. 842-096-520-202	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm
EDAC Inc. 842-096-558-204	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Right Angle Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm

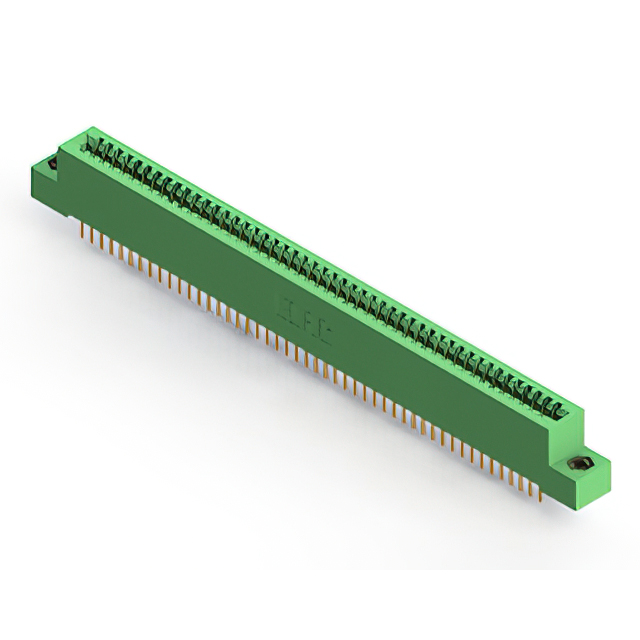

EDAC Inc. 842-096-524-208	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	4-40 Flush Mount Threaded Insert Top Opening

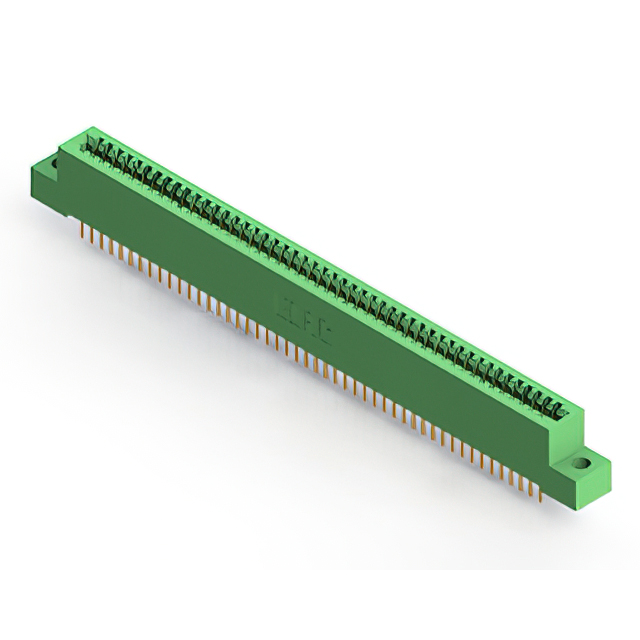

EDAC Inc. 842-096-524-204	Diallyl Phthalate (DAP)	2	0.1 "	2.54 mm	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Green	Non Specified - Dual Edge	Female	125 °C	-40 C	2	Through Hole	Gold	Cantilever	0.25 Ám	10 Áin	96	48	Solder	Dual	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm
