9008-9113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

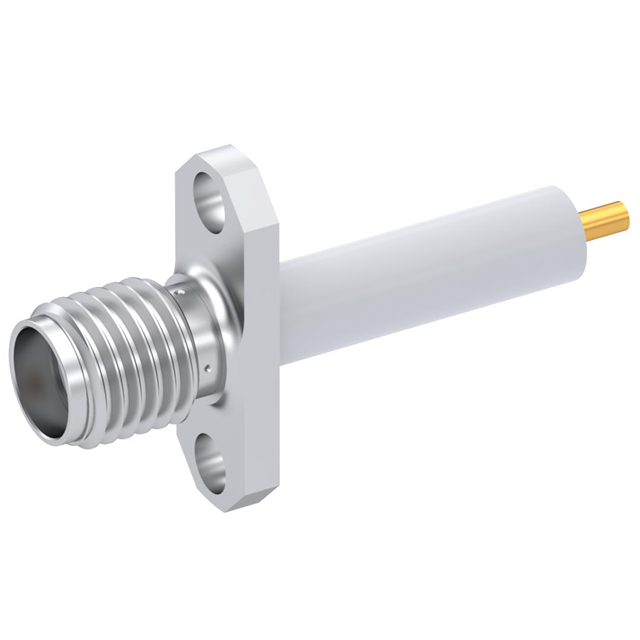

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Center Contact Plating | Body Material | Mating Cycles | Housing Color | Center Contact Material | Features | Connector Type | Shield Termination | Contact Termination | Mounting Type | Fastening Type | Impedance | Number of Ports | Mounting Feature | Connector Style | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Gold | Stainless Steel | 500 | Silver | Beryllium Copper | Extended Insulation | Female Socket Jack | Solder | Solder | Panel Mount Through Hole | Threaded | 50 Ohms | 1 | Flange | SMA | 18 GHz |
