807-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 46POS 0.156
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Rows | Contact Finish | Color | Material - Insulation | Card Thickness [Max] | Card Thickness [Min] | Termination | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Positions | Card Type | Gender | Number of Positions/Bay/Row | Contact Type | Read Out | Mounting Type | Contact Material | Pitch | Pitch | Contact Finish Thickness | Contact Finish Thickness | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 °C | -40 C | 1 | Tin | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 46 | Non Specified - Dual Edge | Female | 23 | Semi Bellows | Dual | Right Angle Through Hole | Copper Alloy | 3.96 mm | 0.156 in | |||
 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 2 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 46 | Non Specified - Dual Edge | Female | 23 | Semi Bellows | Dual | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | |

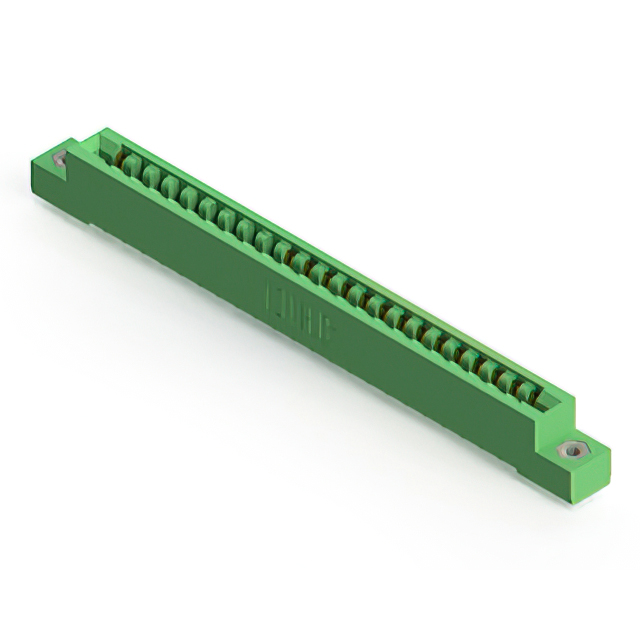

 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | |||
 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | |||

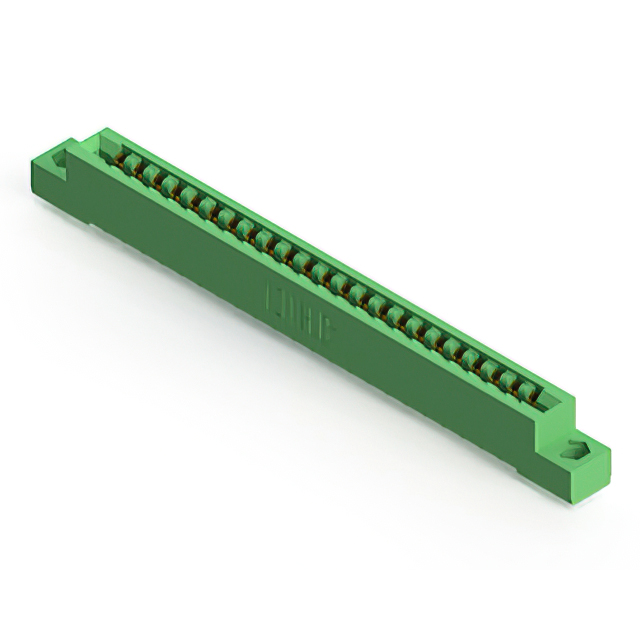

 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 46 | Non Specified - Dual Edge | Female | 23 | Semi Bellows | Dual | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | |
 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | |

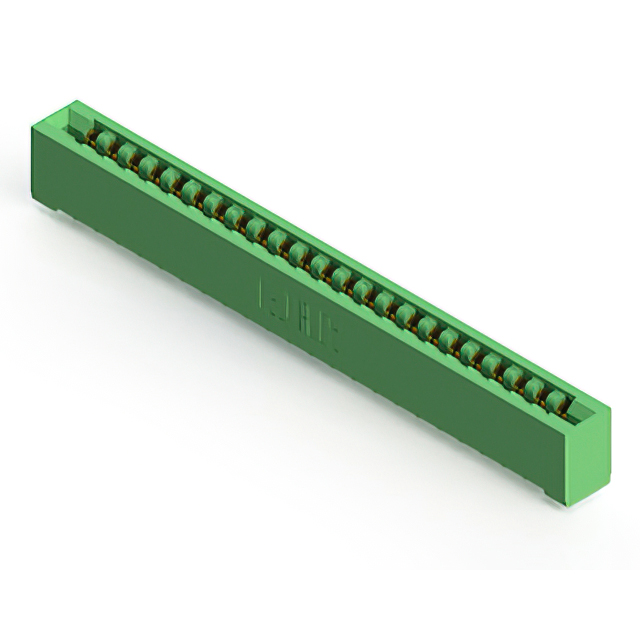

 EDAC Inc. | 125 °C | -40 C | 1 | Tin | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Right Angle Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 1 | ||||||
 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder Eyelet(s) | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin | 1 | |
 EDAC Inc. | 125 °C | -40 C | 1 | Tin | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 23 | Non Specified - Single Edge | Female | 23 | Semi Bellows | Single | Right Angle Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 1 | ||||||
 EDAC Inc. | 125 °C | -40 C | 1 | Gold | Green | Diallyl Phthalate (DAP) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Solder | 2 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | 46 | Non Specified - Dual Edge | Female | 23 | Semi Bellows | Dual | Through Hole | Copper Alloy | 3.96 mm | 0.156 in | 0.25 Ám | 10 Áin |
