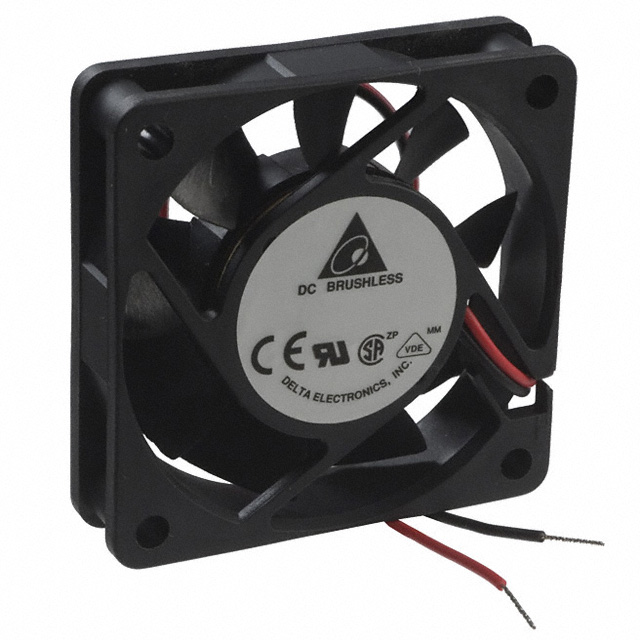

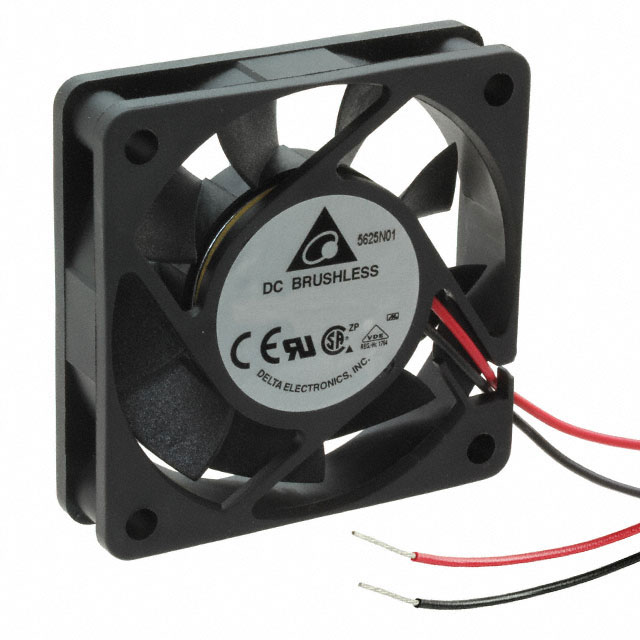

AFB0605 Series

Catalog

FAN AXIAL 60X15MM BALL 5VDC WIRE

Part	Material - Frame	Material - Blade	Lifetime @ Temp.	Current Rating (Amps)	Voltage Range [Max]	Voltage Range [Min]	Bearing Type	Termination	Voltage - Rated	Fan Type	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Approval Agency	Air Flow	Air Flow	Static Pressure	Static Pressure	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	RPM	Power (Watts)	Features
Delta Electronics AFB0605HB	Plastic	Plastic	70000 Hrs	0.3 A	6 VDC	4 VDC	Ball	2 Wire Leads	5 V	Tubeaxial	15 mm	70 °C	-10 °C	32 dB	CE CSA UL VDE	15.4 CFM	0.431 m³/min	38.6 Pa	0.155 in H2O	44.45 g	0.098 lb	60 mm	60 mm	4000 RPM	1.5 W

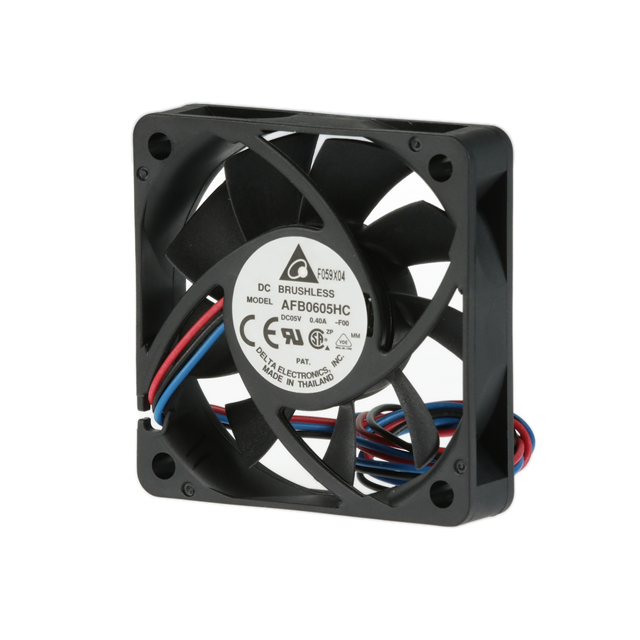

Delta Electronics AFB0605HC-F00	Plastic	Plastic	70000 Hrs	0.29 A	5.5 V	4.5 V	Ball	3 Wire Leads	5 V	Tubeaxial	13 mm	70 °C	-10 °C	31.5 dB	CE CSA UL VDE	21.2 CFM	0.594 m³/min	40.6 Pa	0.163 in H2O	33.56 g	0.074 lb	60 mm	60 mm	4200 RPM	1.45 W	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics AFB0605MC	Plastic	Plastic	70000 Hrs	0.18 A	5.5 V	4.5 V	Ball	2 Wire Leads	5 V	Tubeaxial	13 mm	70 °C	-10 °C	28 dB	CE CSA UL VDE	18.2 CFM	0.51 m³/min	29.6 Pa	0.119 in H2O	33.56 g	0.074 lb	60 mm	60 mm	3600 RPM	0.9 W
Delta Electronics AFB0605MB	Plastic	Plastic	70000 Hrs	0.2 A	6 VDC	4 VDC	Ball	2 Wire Leads	5 V	Tubeaxial	15 mm	70 °C	-10 °C	20 dB	CE CSA UL VDE	13.4 CFM	0.375 mł/min	29.6 Pa	0.119 in H2O	44.45 g	0.098 lb	60 mm	60 mm	3500 RPM

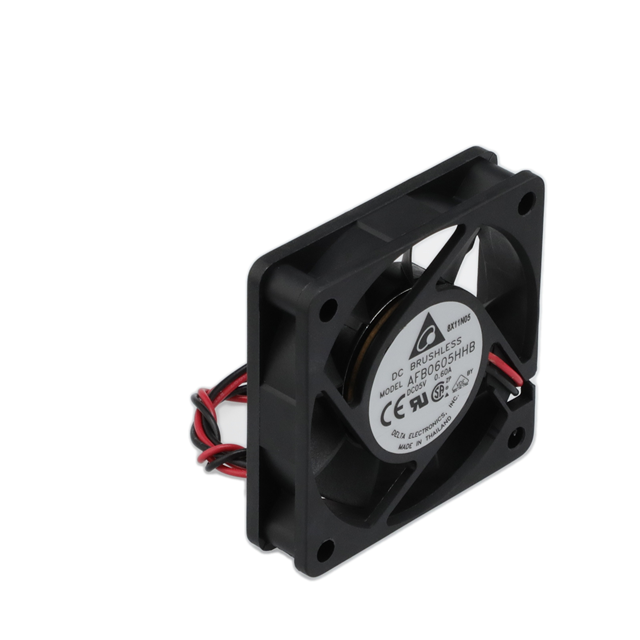

Delta Electronics AFB0605HHB	Plastic	Plastic	70000 Hrs	400 mA	6 VDC	4 VDC	Ball	2 Wire Leads	5 V	Tubeaxial	15 mm	70 °C	-10 °C	35 dB	CE CSA UL VDE	17.3 CFM	0.484 mł/min	48.6 Pa	0.195 in H2O	44.45 g	0.098 lb	60 mm	60 mm	4500 RPM	2 W

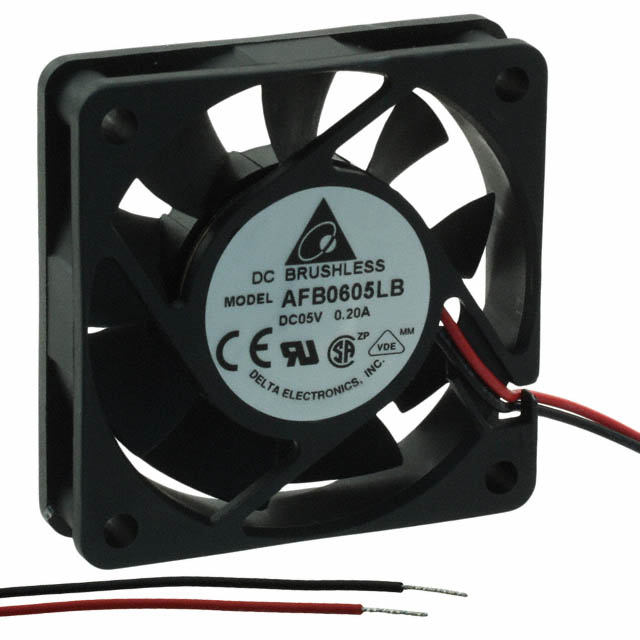

Delta Electronics AFB0605LB	Plastic	Plastic	70000 Hrs		6 VDC	4 VDC	Ball	2 Wire Leads	5 V	Tubeaxial	15 mm	70 °C	-10 °C	24 dB	CE CSA UL VDE	11.5 CFM	0.322 m³/min	21.7 Pa	0.087 in H2O	44.45 g	0.098 lb	60 mm	60 mm	3000 RPM	0.65 W
Delta Electronics AFB0605MC-F00	Plastic	Plastic	70000 Hrs	0.18 A	5.5 V	4.5 V	Ball	3 Wire Leads	5 V	Tubeaxial	13 mm	70 °C	-10 °C	28 dB	CE CSA UL VDE	18.2 CFM	0.51 m³/min	29.6 Pa	0.119 in H2O	33.56 g	0.074 lb	60 mm	60 mm	3600 RPM	0.9 W	Locked Rotor Protection Speed Sensor (Tach)
