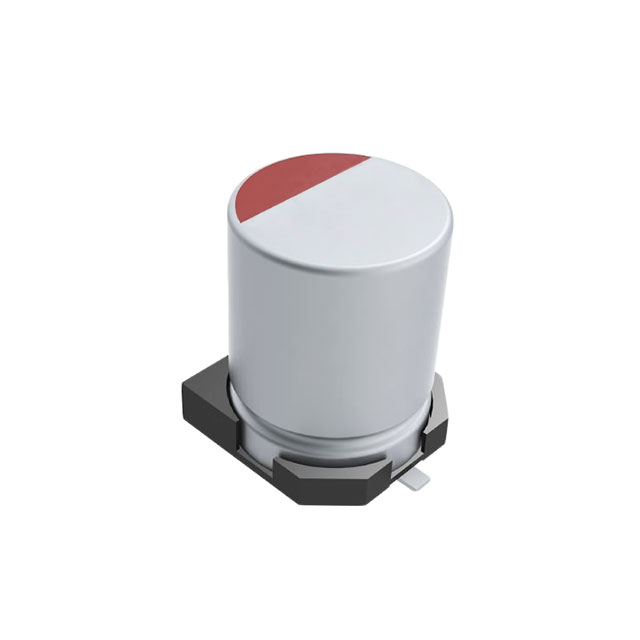

A765BC Series
Manufacturer: KEMET
Beta
⌘K
CAP ALUM POLY 100UF 20% 6.3V SMD
| Part | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Lifetime @ Temp. | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Applications | Ripple Current @ Low Frequency | ESR (Equivalent Series Resistance) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Type | Voltage - Rated | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Package / Case | Ripple Current @ High Frequency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | Surface Mount | 0.197 in | 5 mm | 2000 Hrs | 0.209 in 5.3 mm | 0.209 in 5.3 mm | General Purpose | 85 mA | 25 mOhm | 0.248 " | 6.3 mm | Polymer | 6.3 VDC | 100 µF | -55 C | 105 ░C | 20 % | Radial Can - SMD | 1.7 A |
