577102 Series
Manufacturer: Boyd Laconia, LLC
Beta
⌘K

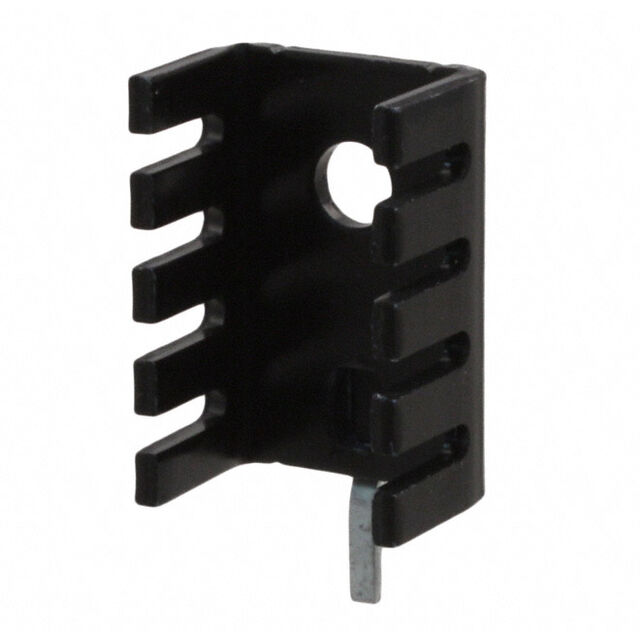

HEATSINK TO-220 W/TAB .375"
| Part | Package Cooled | Material Finish | Width [y] | Width [y] | Attachment Method | Length | Length | Shape [custom] | Shape [custom] | Thermal Resistance @ Natural | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Type | Material | Fin Height | Fin Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Boyd Laconia, LLC | TO-220 | Black Anodized | 13.21 mm | 0.52 " | Bolt On PC Pin | 0.75 in | 19.05 mm | Rectangular | Fins | 25.9 °C/W | 1 W | 8 °C/W | Board Level Vertical | Aluminum | 9.52 mm | 0.375 in |
