M80-887 Series

Catalog

HEADER CONNECTOR,PCB MOUNT,PLUG,44 CONTACTS,SKT,0.079 PITCH,PC TAIL TERMINAL,LOCKING ROHS COMPLIANT: NO

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Contact Shape	Contact Material	Voltage Rating	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Insulation Color	Mated Stacking Heights	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Termination	Connector Type	Insulation Height	Insulation Height	Style	Fastening Type	Contact Type	Mounting Type	Contact Finish - Post	Number of Rows [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions [custom]

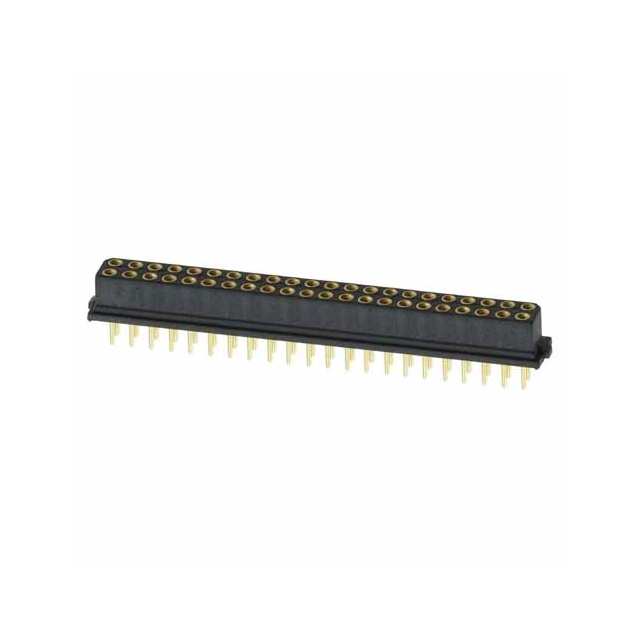

Harwin Inc. M80-8874405	10 Áin	0.25 çm	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	4	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Gold	2	12 Áin	0.3 Ám

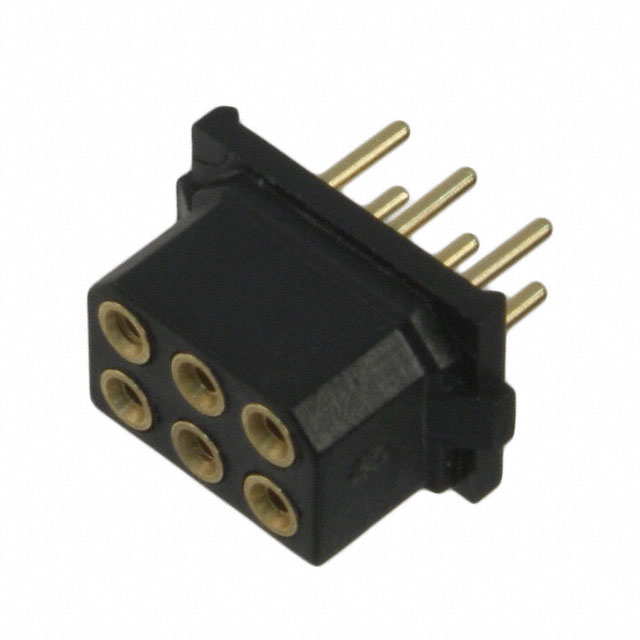

Harwin Inc. M80-8870605	10 Áin	0.25 çm	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	6	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Gold	2	12 Áin	0.3 Ám

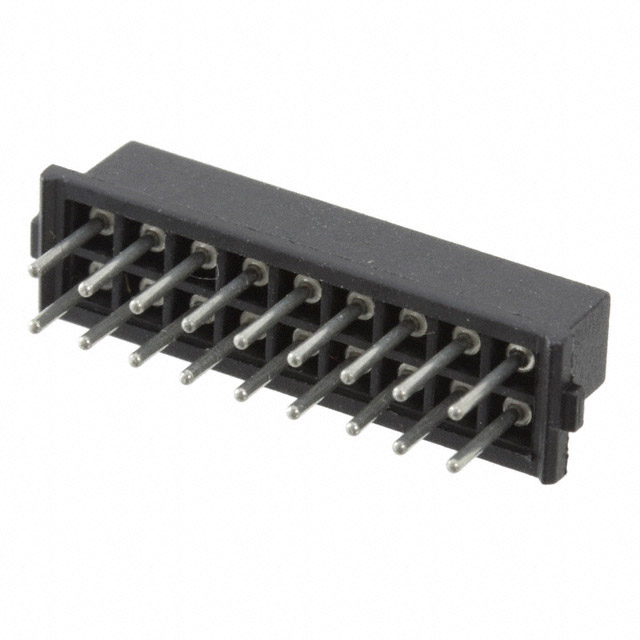

Harwin Inc. M80-8871801	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	18	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám

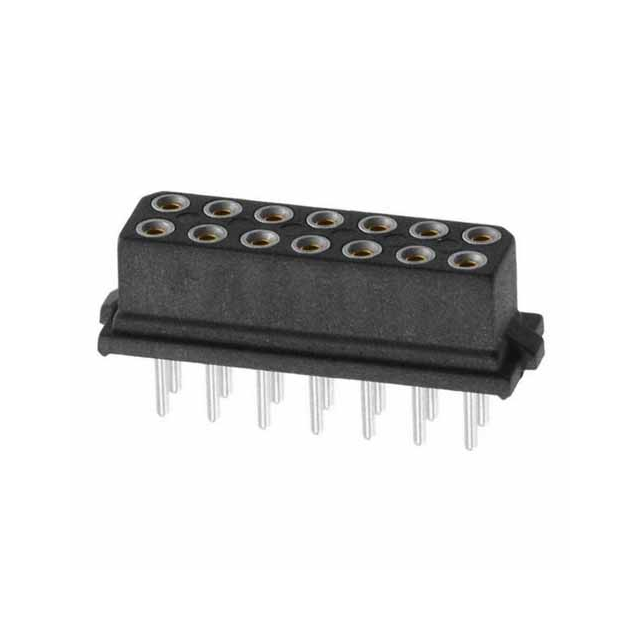

Harwin Inc. M80-8871401	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	14	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám

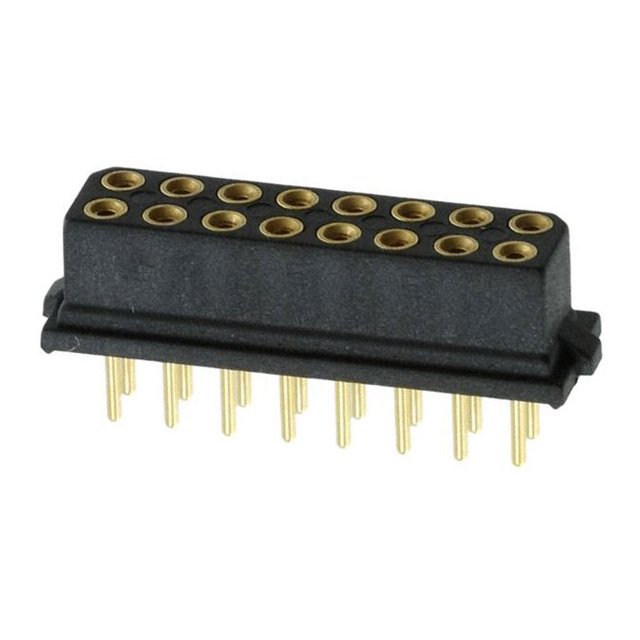

Harwin Inc. M80-8871605	10 Áin	0.25 çm	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	16	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Gold	2	12 Áin	0.3 Ám
Harwin Inc. M80-8871201	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	12	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám

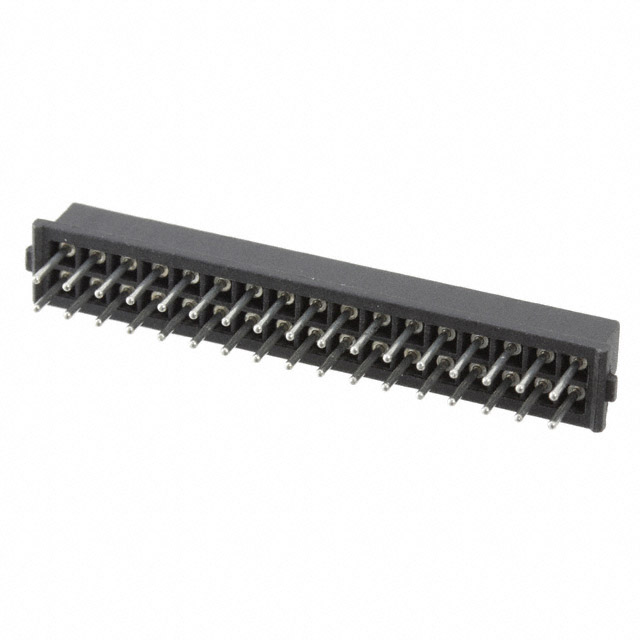

Harwin Inc. M80-8873401	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm		0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám	34

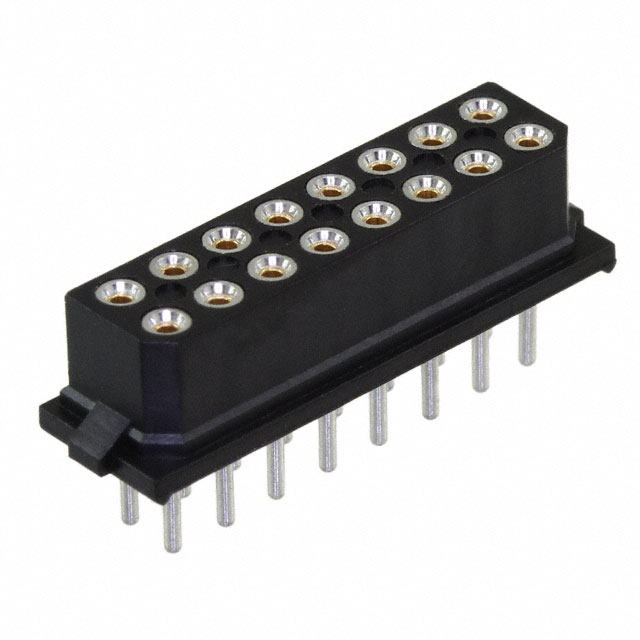

Harwin Inc. M80-8871601	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	16	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám

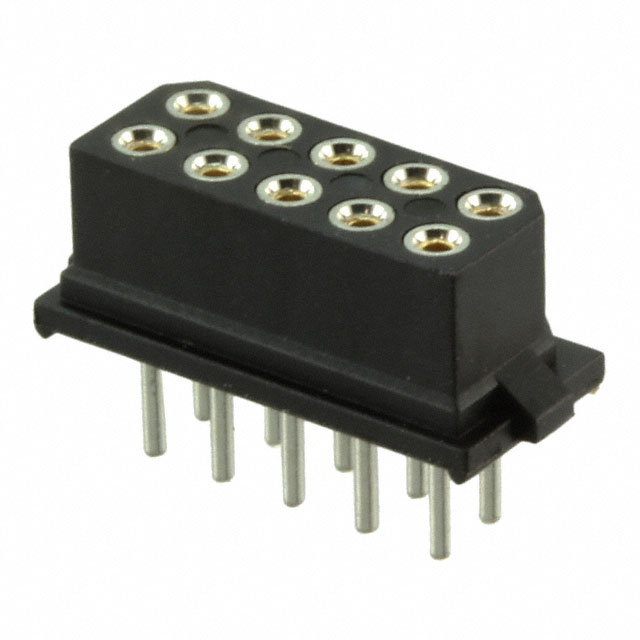

Harwin Inc. M80-8871001	137.8 Áin	3.5 Ám	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	10	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Tin-Lead	2	12 Áin	0.3 Ám

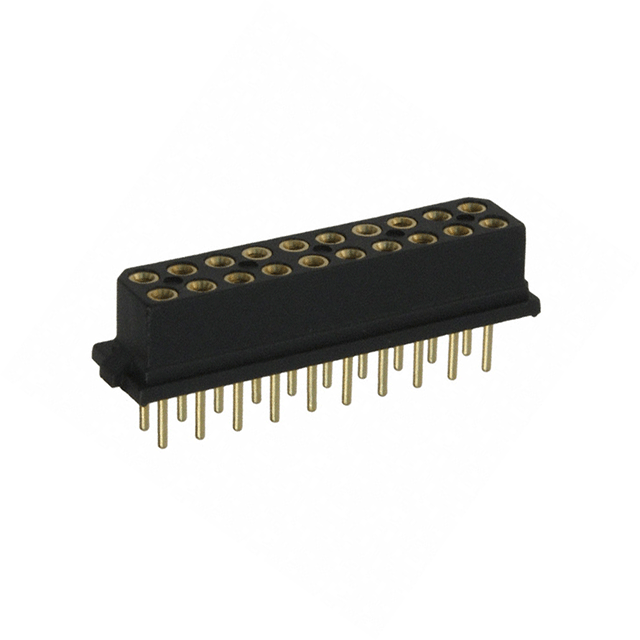

Harwin Inc. M80-8872005	10 Áin	0.25 çm	Automotive General Purpose Military	Polyester Glass Filled	Circular	Beryllium Copper	800 V	0.079 "	2 mm	20	0.118 in	3 mm	Black	7.23 mm 7.85 mm	2 mm	0.079 in	UL94 V-0	All	-55 C	125 °C	Gold	Solder	Receptacle	0.202 in	5.14 mm	Board to Board Cable	Locking Ramp	Female Socket	Through Hole	Gold	2	12 Áin	0.3 Ám
