ULS-12 Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, 2:1, 99.6 W, 1 OUTPUT, 12 V, 8.3 A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Applications	Efficiency	Voltage - Input (Min) [Min]	Type	Power (Watts)	Voltage - Isolation	Control Features	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Features	Current - Output (Max)
Murata Electronics ULS-12/8.3-D48NM-C	85 °C	-40 C	Surface Mount	8.3 A	1	75 V	12 V	ITE (Commercial)	92 %	36 V	Isolated Module	100 W	2250 VDC	Active Low Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-SMD Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO
Murata Electronics ULS-12/8.3-D48P-C	85 °C	-40 C	Through Hole	8.3 A	1	75 V	12 V	ITE (Commercial)	92 %	36 V	Isolated Module	100 W	2250 VDC	Active High Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO
Murata Electronics ULS-12/5-D48P-C	85 °C	-40 C	Through Hole		1	75 V	12 V	ITE (Commercial)	91 %	36 V	Isolated Module	60 W	2250 VDC	Active High Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO	5 A
Murata Electronics ULS-12/5-D48PH-C	85 °C	-40 C	Through Hole		1	75 V	12 V	ITE (Commercial)	91 %	36 V	Isolated Module	60 W	2250 VDC	Active High Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO	5 A
Murata Electronics ULS-12/8.3-D48PM-C	85 °C	-40 C	Surface Mount	8.3 A	1	75 V	12 V	ITE (Commercial)	92 %	36 V	Isolated Module	100 W	2250 VDC	Active High Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-SMD Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO
Murata Electronics ULS-12/2.5-D48NL2-C	85 °C	-40 C	Through Hole	2.5 A	1	75 V	12 V	ITE (Commercial)	87.7 %	36 V	Isolated Module	30 Watts	2250 VDC	Active Low Enable	33 mm	1.3 in	0.36 in	22.9 mm	9.1 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO
Murata Electronics ULS-12/5-D48NL2-C	85 °C	-40 C	Through Hole		1	75 V	12 V	ITE (Commercial)	91 %	36 V	Isolated Module	60 W	2250 VDC	Active Low Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO	5 A

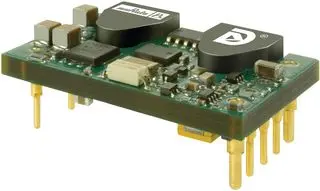

Murata Electronics ULS-12/5-D48N-C	85 °C	-40 C	Through Hole		1	75 V	12 V	ITE (Commercial)	91 %	36 V	Isolated Module	60 W	2250 VDC	Active Low Enable	33 mm	1.3 in	0.4 "	22.9 mm	10.2 mm	0.9 in	8-DIP Module 1/16 Brick	OTP OVP Remote On/Off SCP UVLO	5 A
