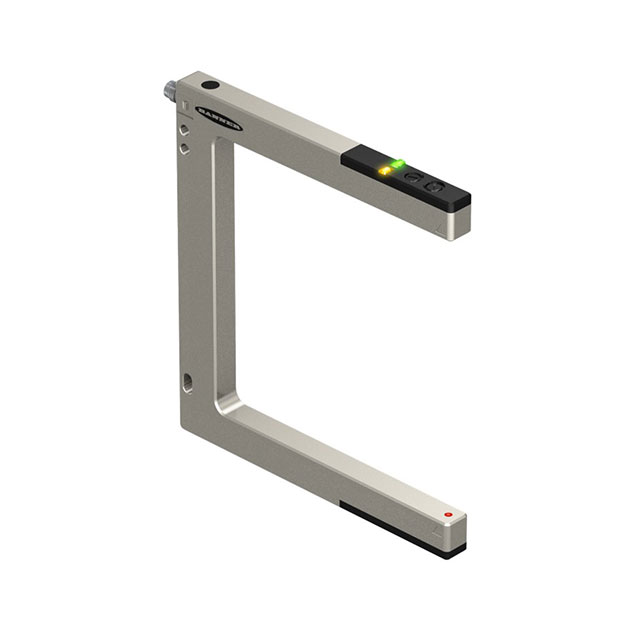

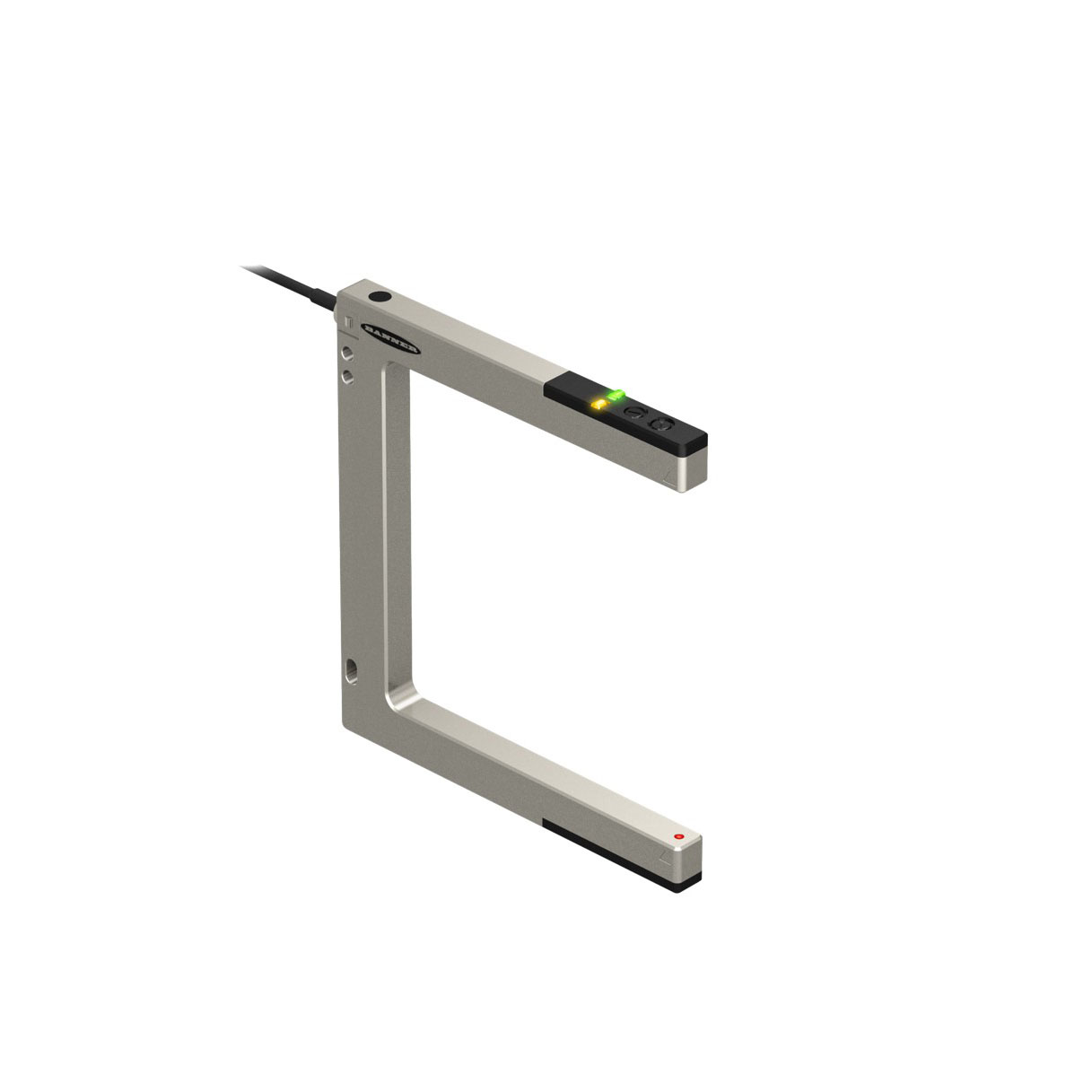

SLM120 Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K
SLM SERIES: RUGGED NICKEL PLATED
| Part | Ingress Protection | Cable Length | Cable Length | Response Time | Operating Temperature [Min] | Operating Temperature [Max] | Connection Method | Sensing Distance | Sensing Distance | Adjustment Type | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | IEC IEC IP67 IP67 NEMA 6P | 78.74 " | 2 m | 500 µs | -20 ░C | 60 °C | Cable | 120 mm | 4.724 " | Adjustable Potentiometer | NPN/PNP - Dark-ON/Light-ON - Selectable | 10 VDC | 30 VDC | LED |
 BANNER ENGINEERING | IP67 NEMA 6P | 500 µs | -20 ░C | 60 °C | Connector | 120 mm | 4.724 " | Adjustable Potentiometer | PNP - Dark-ON/Light-ON | 10 VDC | 30 VDC | LED |
