A11WBM-P Series
Manufacturer: ODU
Beta
⌘K

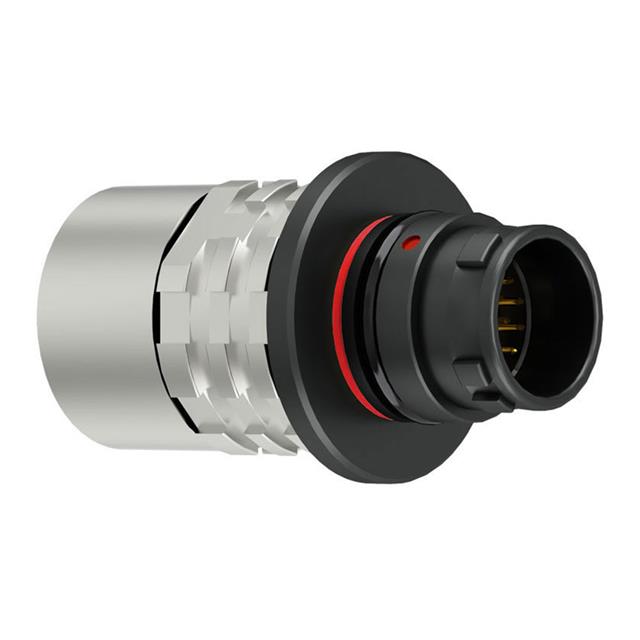

ODU AMC HD PLUG, STY 1, SZ 1, SE
| Part | Ingress Protection | Material Flammability Rating | Color | Insert Material | Number of Positions | Backshell Material, Plating | Shielding | Mounting Type | Primary Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening | Cable Opening | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Material | Applications | Features | Fastening Type | Shell Finish | Connector Type | Orientation | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IP68 - Dust Tight Waterproof | UL94 V-0 | Black Silver | Polyetheretherketone (PEEK) | 27 | Brass Ruthenium over Electroless Nickel | Shielded | Free Hanging (In-Line) | Metal | Copper Alloy | -51 °C | 125 °C | 8.5 mm | 0.335 in | Gold | 50 µin | 1.27 µm | Brass | Industrial Medical Military | Backshell | Detent Lock Push-Pull | Ruthenium over Electroless Nickel | Plug Male Pins | B | 1 |
