ED028PL Series

Catalog

CONN SOCKET PLCC 28POS

Part	Material Flammability Rating	Contact Resistance	Current Rating (Amps)	Contact Material - Mating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Post	Mounting Type	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid)	Type	Pitch - Mating	Pitch - Mating	Termination	Termination Post Length	Termination Post Length	Contact Finish - Post	Housing Material

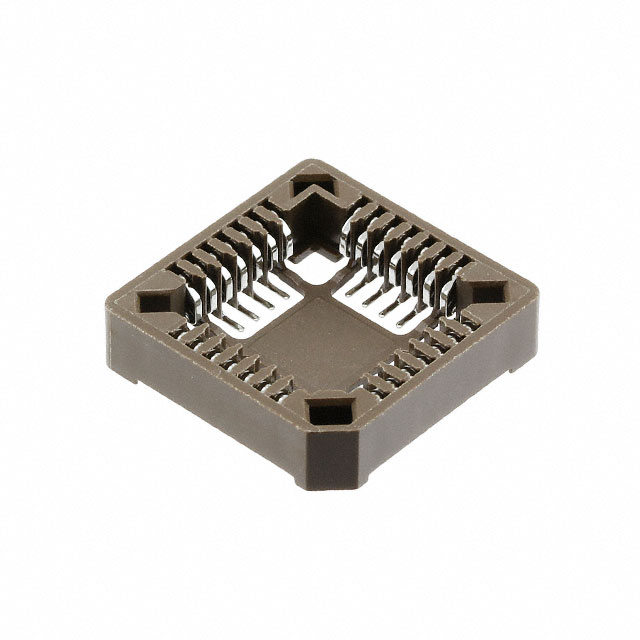

On Shore Technology Inc. ED028PLCZ-SM-N	UL94 V-0	30 mOhm	1 A	Phosphor Bronze	Closed Frame	-55 C	105 ░C	Phosphor Bronze	Surface Mount	0.05 in	1.27 mm	28	PLCC	1.27 mm	0.05 in	Solder

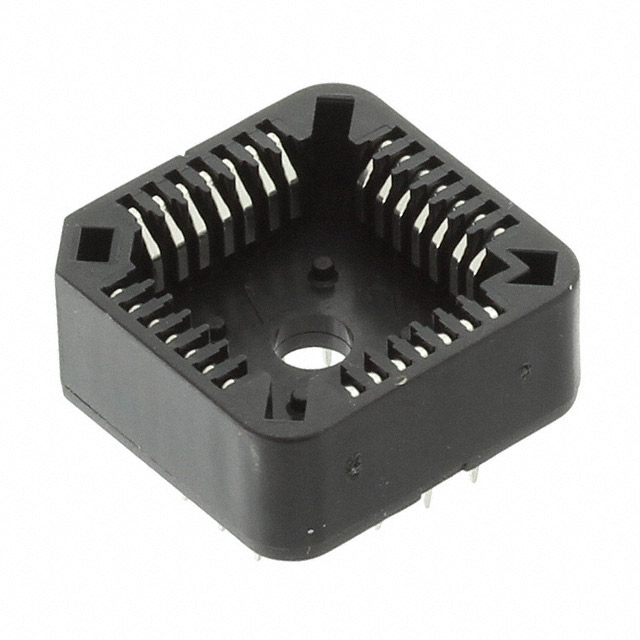

On Shore Technology Inc. ED028PLCZ	UL94 V-0	30 mOhm	1 A	Phosphor Bronze	Closed Frame	-55 C	105 ░C	Phosphor Bronze	Through Hole	0.1 in	2.54 mm	28	PLCC	2.54 mm	0.1 "	Solder	3 mm	0.118 in	Tin	Polybutylene Terephthalate (PBT)
