E2F-X2 Series

Catalog

SENSOR PROX INDUCTIVE 2MM CYLIND

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Response Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Ingress Protection	Sensing Distance	Sensing Distance	Output Type	Package / Case	Sensor Type	Indicator	Material - Body	Termination Style	Output Type

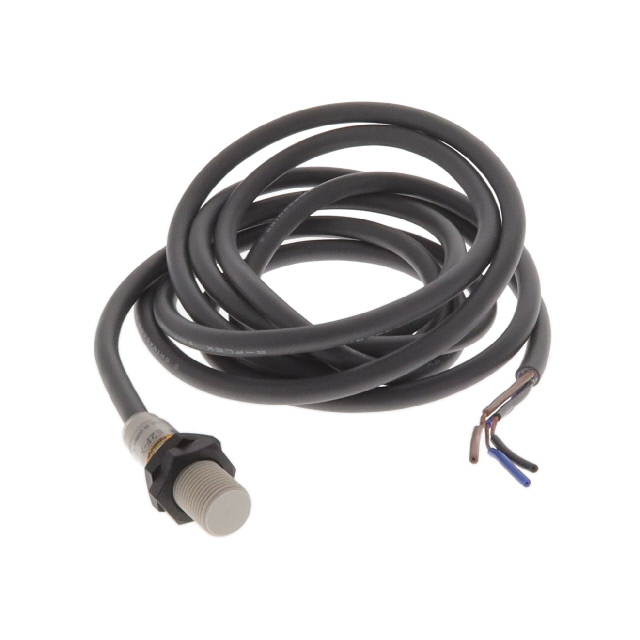

Omron Automation and Safety E2F-X2E2	Shielded	-25 °C	70 °C	1.5 kHz	10 VDC	30 VDC	IP68	2 mm	0.079 in	3-Wire NPN-NC	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads

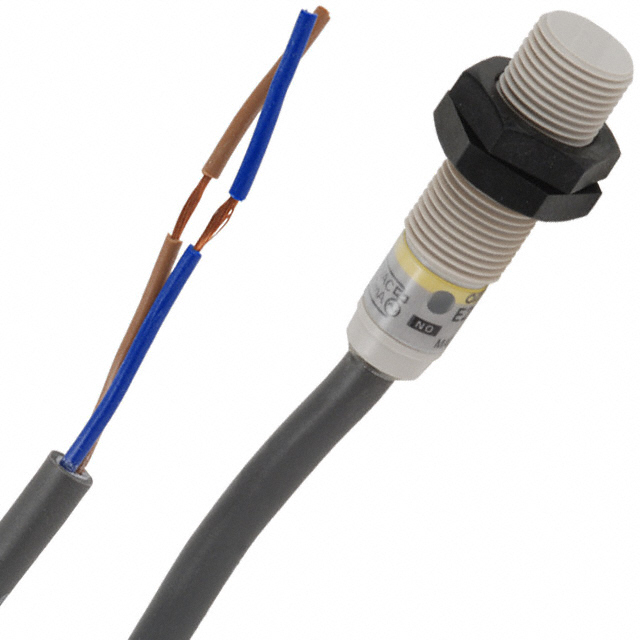

Omron Automation and Safety E2F-X2Y1	Shielded	-25 °C	70 °C	25 Hz	20 VAC	264 VAC	IP68	2 mm	0.079 in	2-Wire SCR-NO	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads
Omron Automation and Safety E2F-X2F1 5M	Shielded	-25 °C	70 °C	1.5 kHz	10 VDC	30 VDC	IP68	2 mm	0.079 in	PNP-NO	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads	3
Omron Automation and Safety E2F-X2F2	Shielded	-25 °C	70 °C	1.5 kHz	10 VDC	30 VDC	IP68	2 mm	0.079 in	PNP-NC	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads	3

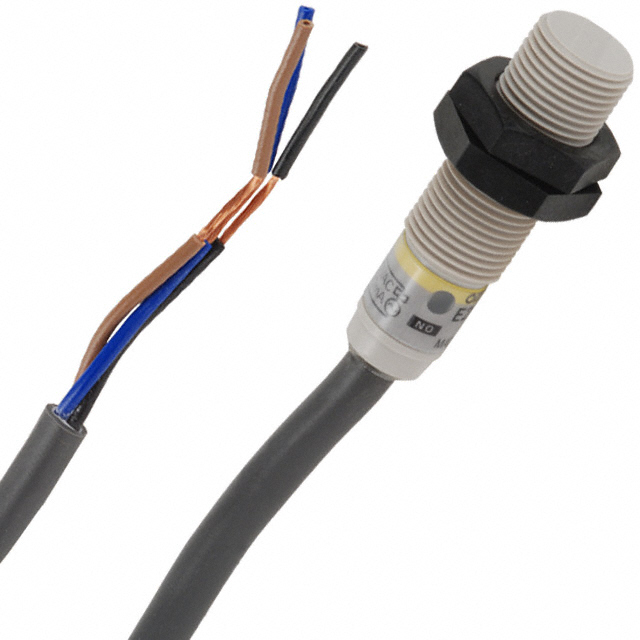

Omron Automation and Safety E2F-X2E1	Shielded	-25 °C	70 °C	1.5 kHz	10 VDC	30 VDC	IP68	2 mm	0.079 in	3-Wire NPN-NO	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads

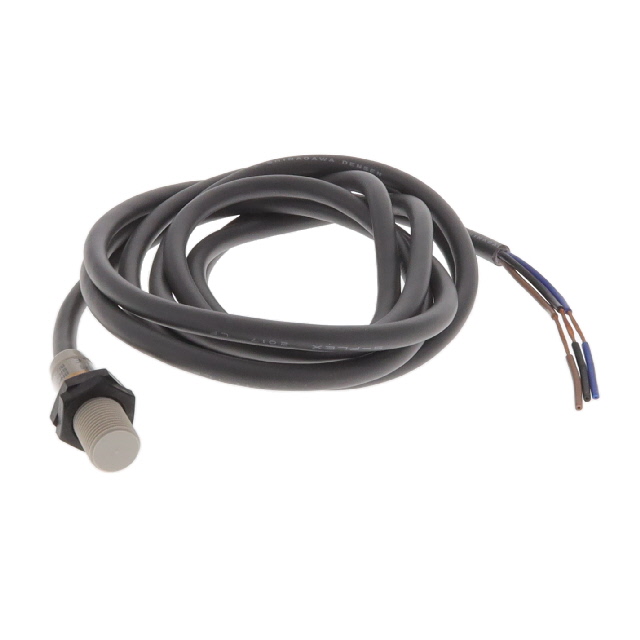

Omron Automation and Safety E2F-X2F1	Shielded	-25 °C	70 °C	1.5 kHz	10 VDC	30 VDC	IP68	2 mm	0.079 in	PNP-NO	Cylinder Threaded - M12	Inductive	LED	Plastic	Cable Leads	3
