104004 Series
Manufacturer: Molex
Beta
⌘K
CONN RCPT USB2.0 MINI B VERT
| Part | Mounting Feature | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Termination | Voltage - Rated | Mounting Type | Number of Contacts | Specifications | Contact Finish | Current Rating (Amps) | Shell/Shielding Material | Shielding | Connector Type | Features | Insulation Color | Gender | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Vertical | 85 °C | -40 °C | 1 | Solder | 5 V | Through Hole | 5 | USB 2.0 | Gold | 1 A | Phosphor Bronze | Shielded | USB - mini B | Board Guide | Blue | Receptacle | |

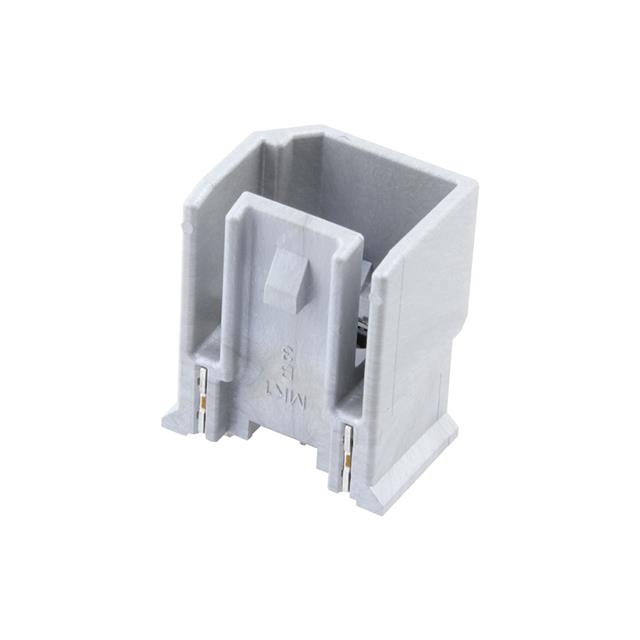

Molex | Vertical | 1 | Solder | Through Hole | 5 | Gold | Phosphor Bronze | Shielded | USB - mini B | Gray | Female Header | UL94 V-0 | ||||||
 Molex | Vertical | 85 °C | -40 °C | 1 | Solder | 5 V | Through Hole | 5 | USB 2.0 | Gold | 1 A | Phosphor Bronze | Shielded | USB - mini B | Board Guide | Black | Receptacle | UL94 V-0 |

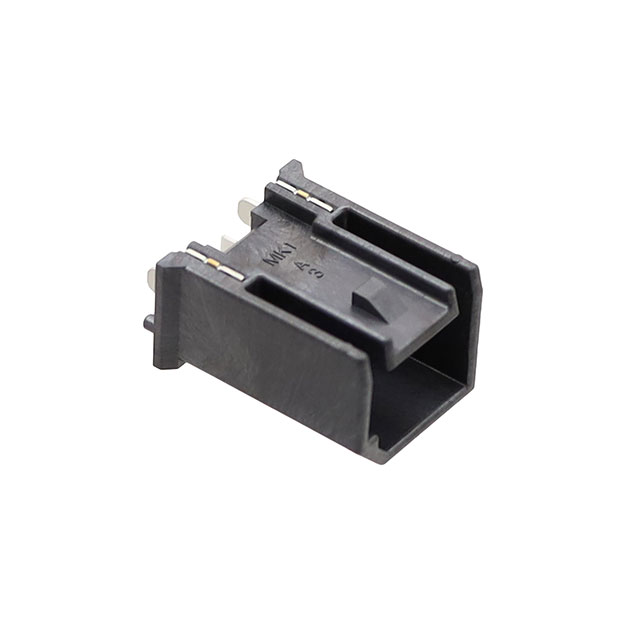

Molex | Vertical | 1 | Solder | Through Hole | 5 | Gold | Phosphor Bronze | Shielded | USB - mini B | Black | Female Header | UL94 V-0 | ||||||
Molex | ||||||||||||||||||
 Molex | Vertical | 85 °C | -40 °C | 1 | Solder | 5 V | Through Hole | 5 | USB 2.0 | Gold | 1 A | Phosphor Bronze | Shielded | USB - mini B | Black | Receptacle | UL94 V-0 |
