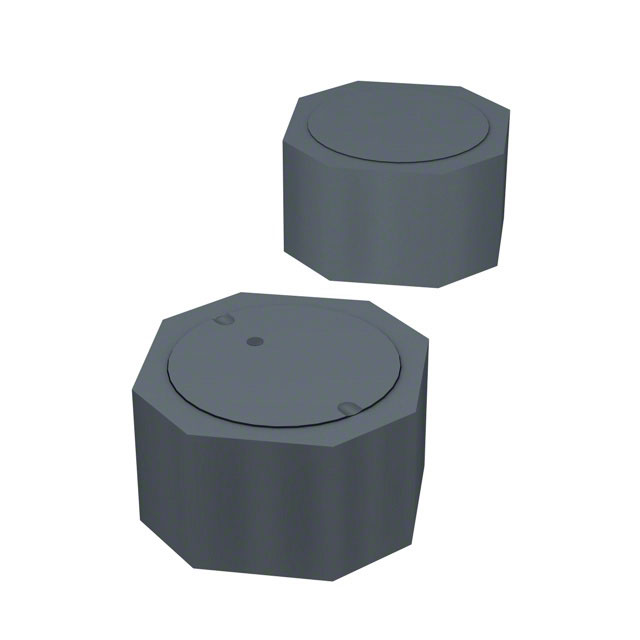

SRU5028A Series

Catalog

IND5.2X5.2X2.8MM,100UH30%0.47A,SHDSMD /TAPE & REEL - 7" REEL

Part	Current Rating (Amps)	Inductance	Ratings	Q @ Freq [custom]	Q @ Freq [custom]	Material - Core	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Type	Tolerance	Mounting Type	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR)
Bourns Inc. SRU5028A-101Y	470 mA	100 µH	AEC-Q200	15	796 kHz	Ferrite	800 mOhm	0.118 "	3 mm	420 mA	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	8 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz
Bourns Inc. SRU5028A-150Y	1.1 A	15 µH	AEC-Q200			Ferrite	140 mOhm	0.118 "	3 mm	1 A	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	23 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	2.52 MHz 18
Bourns Inc. SRU5028A-220Y	950 mA	22 µH	AEC-Q200			Ferrite	210 mOhm	0.118 "	3 mm	850 mA	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	18 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	2.52 MHz 15
Bourns Inc. SRU5028A-680Y	0.56 A	68 µH	AEC-Q200			Ferrite		0.118 "	3 mm	460 mA	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	10 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	2.52 MHz 13	550 mOhm
Bourns Inc. SRU5028A-1R2Y	3.5 A	1.2 µH	AEC-Q200			Ferrite		0.118 "	3 mm	3.4 A	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	200 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	7.96 MHz 10
Bourns Inc. SRU5028A-6R8Y	2 A	6.8 µH	AEC-Q200			Ferrite		0.118 "	3 mm	1.55 A	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	45 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	7.96 MHz 10	56 mOhm
Bourns Inc. SRU5028A-330Y	800 mA	33 µH	AEC-Q200			Ferrite		0.118 "	3 mm	0.68 A	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	16 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	2.52 MHz 15	260 mOhm
Bourns Inc. SRU5028A-470Y	700 mA	47 µH	AEC-Q200			Ferrite	360 mOhm	0.118 "	3 mm	620 mA	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	13 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	2.52 MHz 13
Bourns Inc. SRU5028A-2R2Y	3.2 A	2.2 µH	AEC-Q200			Ferrite		0.118 "	3 mm	2.5 A	125 °C	-40 C	Shielded	Drum Core Wirewound	30 %	Surface Mount	130 MHz	5.2 mm	0.205 "	0.205 "	5.2 mm	Nonstandard	100 kHz	7.96 MHz 10	27 mOhm
