SS-39100 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K

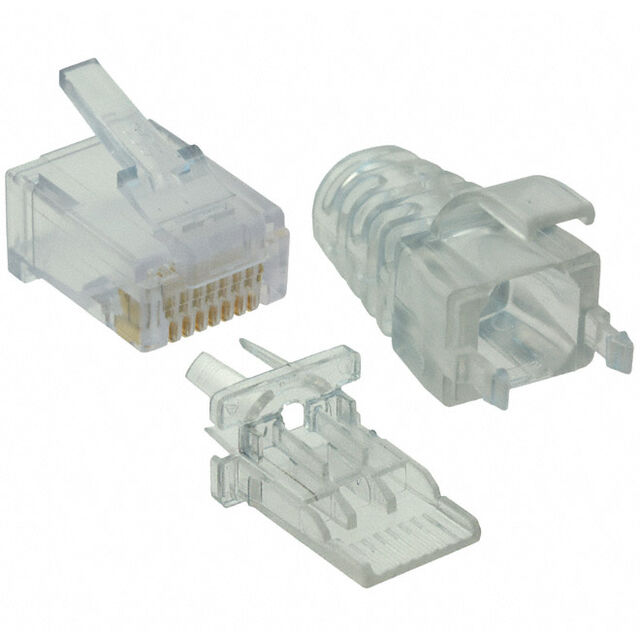

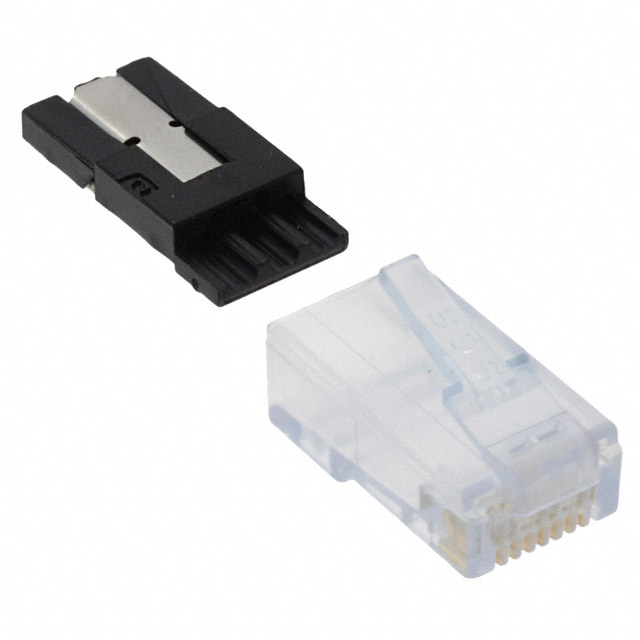

CONN RJ-45 PL 8 POS 1.02MM CRIMP ST CABLE MOUNT 8 TERMINAL 1 PORT CAT 6/CAT 6A BULK
| Part | Voltage Rating | Contact Finish | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Housing Material | Features | Ratings | Cable Type | Number of Positions/Contacts | Termination | Shielding | Color | Connector Type | Length | Length | Length [x] | Length [x] | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Molded Boot | Cat6a | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Clear Boot Translucent - Clear | Plug | 37.34 mm | 1.47 in | ||||
 Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Molded Boot | Cat6 | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Clear Boot Translucent - Clear | Plug | 37.34 mm | 1.47 in | ||||
Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Molded Boot | Cat6a | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Clear Boot Translucent - Clear | Plug | 37.34 mm | 1.47 in | ||||
Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Molded Boot | Cat6 | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Translucent - Clear | Plug | 1.467 in | 37.3 mm | ||||
 Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Phosphor Bronze | Polycarbonate (PC) | Cat6 | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Translucent - Clear | Plug | 0.885 in | 22.48 mm | |||||
 Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Cable Clamp Molded Boot | Cat6a | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Translucent - Clear | Plug | 44.1 mm | 0.145 ' | ||||
Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Molded Boot | Cat6 | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Translucent - Clear | Plug | 37.34 mm | 1.47 in | ||||
Bel Fuse Inc. | 150 VDC | Gold | 1.5 A | 50 µin | 1.27 µm | Copper Alloy | Polycarbonate (PC) | Cat6a | Round Cable Solid or Stranded Wires | 8p8c (RJ45 Ethernet) | IDC | Unshielded | Translucent - Clear | Plug | 22.61 mm | 0.89 in | 17.5 AWG | 20 AWG |
