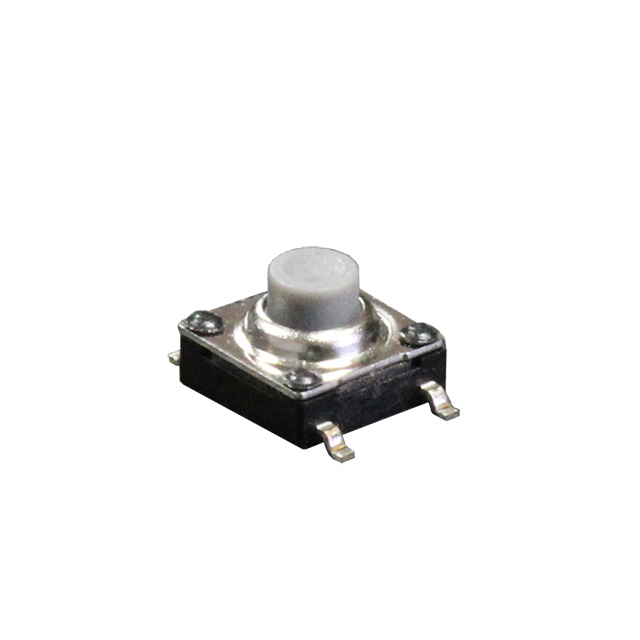

STS7.0 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 48V

Part	Actuator Material	Switch Travel	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Outline [y]	Outline [x]	Ingress Protection	Actuator Height off PCB, Vertical [z]	Actuator Type	Circuit	Mounting Type	Operating Force	Illumination	Termination Style	Contact Rating @ Voltage	Actuator Orientation
CIT Relay and Switch STS7.0LF260QG	Polyamide (PA6T) Nylon 6T	0.45 mm	Off-Mom	85 °C	-40 C	7.2 mm	7.2 mm	IP67 - Dust Tight Waterproof	7 mm	Standard	SPST-NO	Surface Mount	260 gf	Non-Illuminated	Gull Wing	0.05 A 48 VDC	Top Actuated
CIT Relay and Switch STS7.0LF200QG	Polyamide (PA6T) Nylon 6T	0.45 mm	Off-Mom	85 °C	-40 C	7.2 mm	7.2 mm	IP67 - Dust Tight Waterproof	7 mm	Standard	SPST-NO	Surface Mount	0.2 kgf	Non-Illuminated	Gull Wing	0.05 A 48 VDC	Top Actuated
