T192 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
H10BPR-TGHC-M32
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Housing Finish | Style | Size | Operating Temperature [Max] | Operating Temperature [Min] | Thread Size | Connector Type | Housing Color | Housing Material | Ingress Protection | Lock Location | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 70 mm | 4.331 in | 110 mm | 2.756 " | 53.2 mm | 2.094 " | Powder Coated | Top Entry | H10B | 125 °C | -40 C | M32 | Hood | Black | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | ||||||

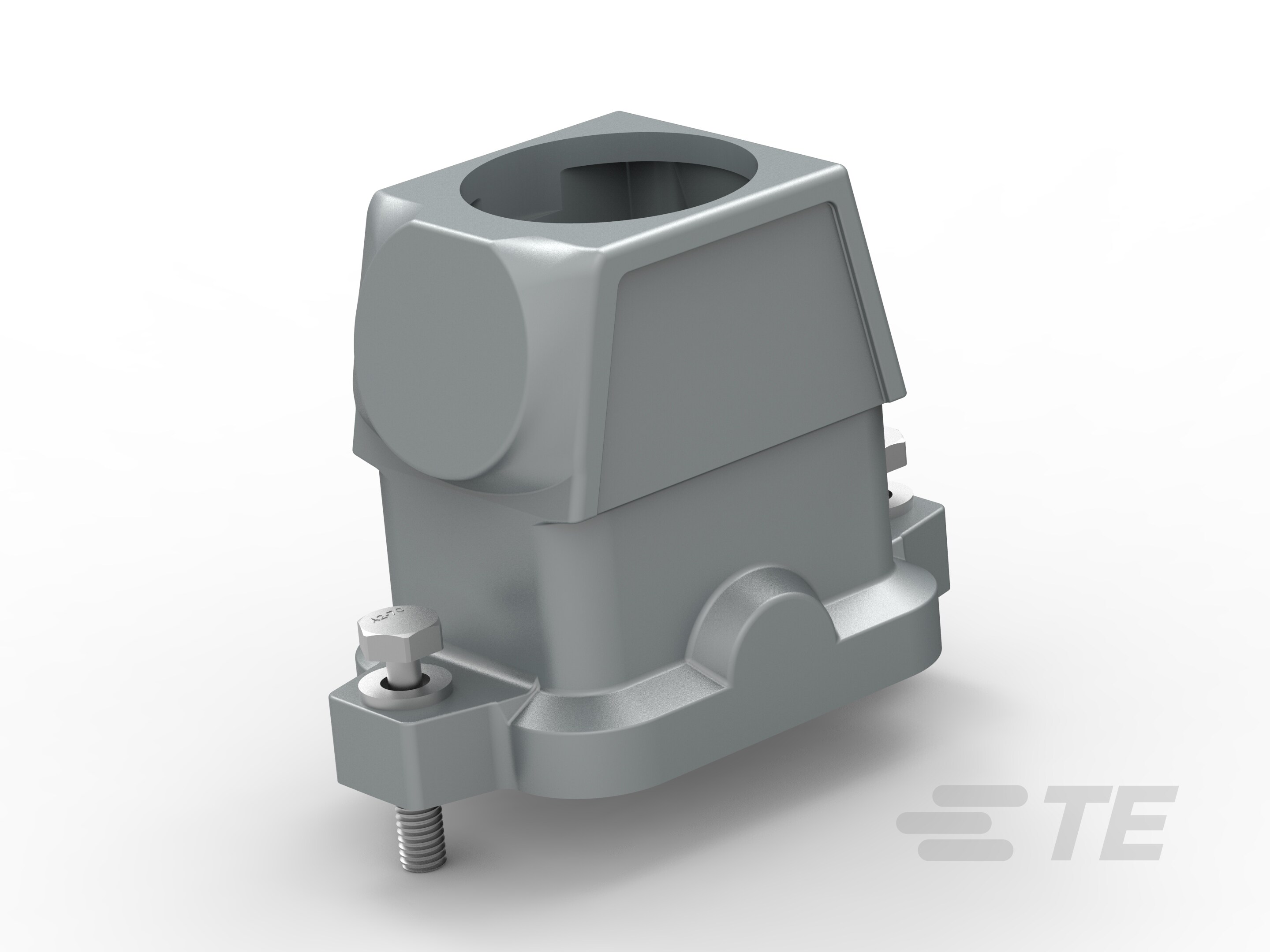

 TE Connectivity AMP Connectors | 101 mm | 5.236 " | 133 mm | 3.976 in | 58 mm | 2.283 in | Powder Coated | Top Entry | H6B | 125 °C | -40 C | M20 | Hood | Gray | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | ||||||
 TE Connectivity AMP Connectors | 70 mm | 4.331 in | 110 mm | 2.756 " | 53.2 mm | 2.094 " | Powder Coated | Top Entry | H10B | 125 °C | -40 C | M20 | Hood | Black | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | ||||||

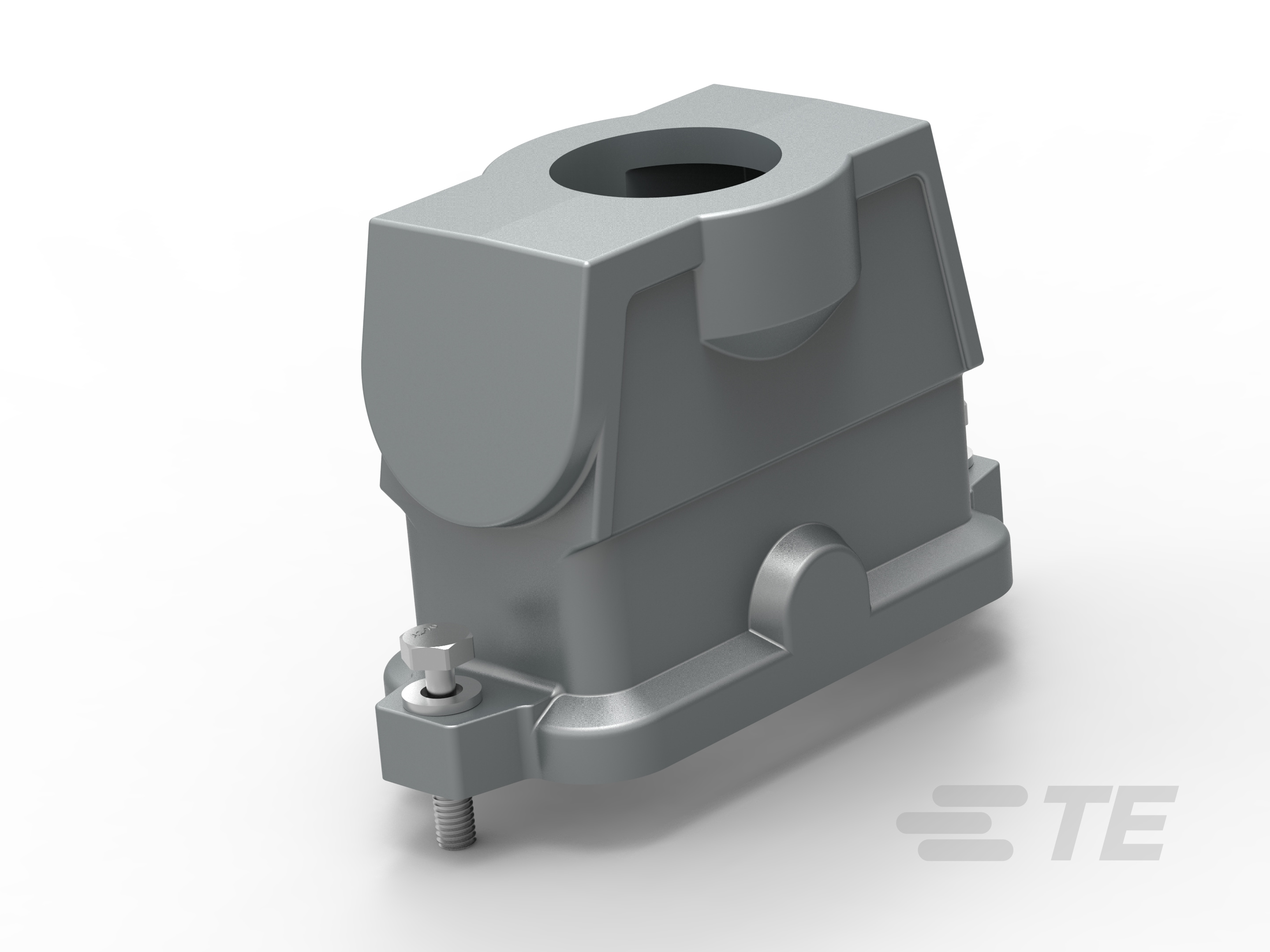

 TE Connectivity AMP Connectors | 3.15 in | 5.118 in | 2.094 in | Powder Coated | Top Entry Dual | H16B | 125 °C | -40 C | Hood | Silver | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | 53.2 mm | 130 mm | 80 mm | |||||||

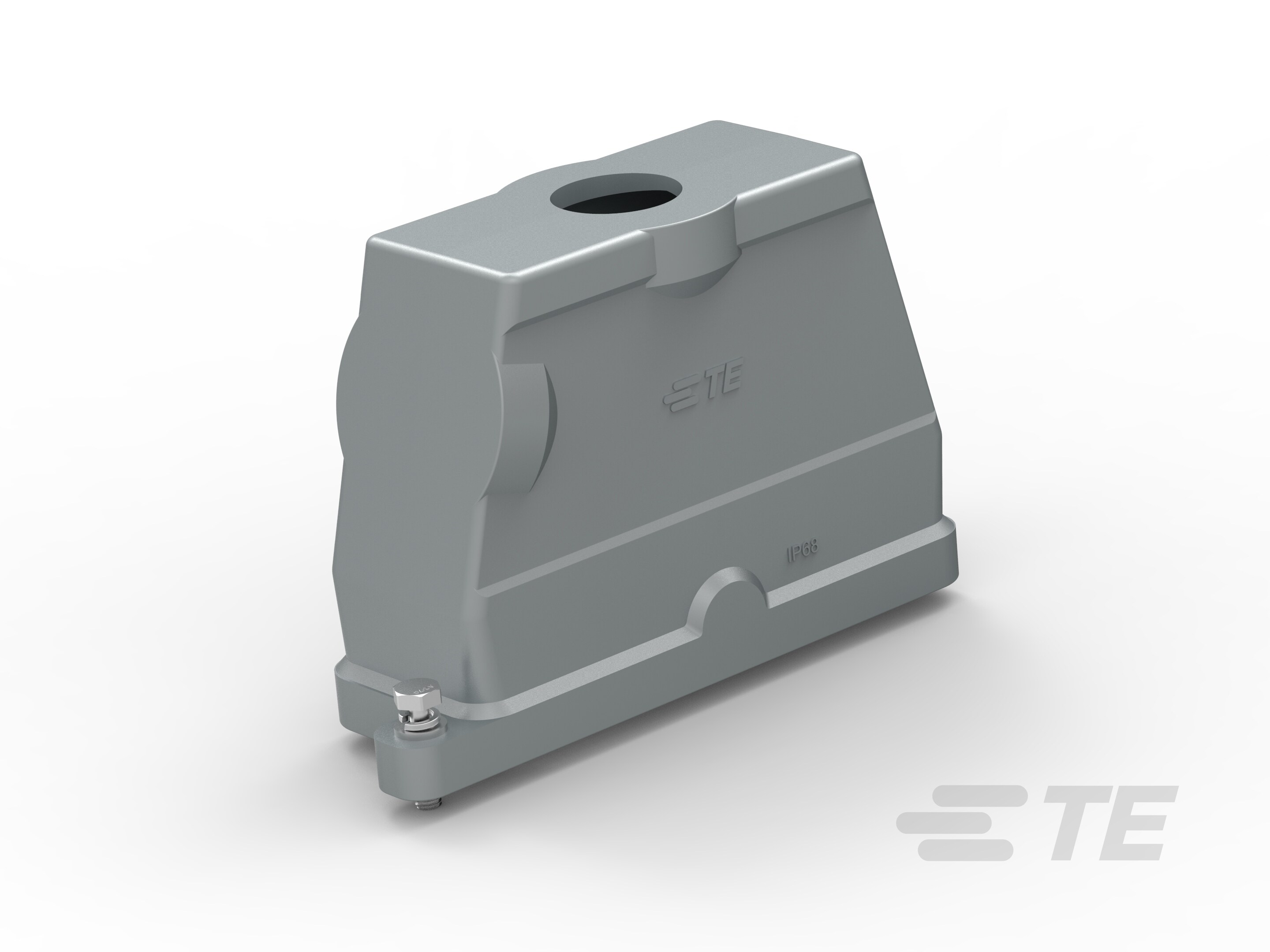

 TE Connectivity AMP Connectors | 111.75 mm | 7.598 " | 193 mm | 4.4 in | 58 mm | 2.283 in | Powder Coated | Top Entry | H24B | 125 °C | -40 C | M32 | Hood | Silver | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | ||||||

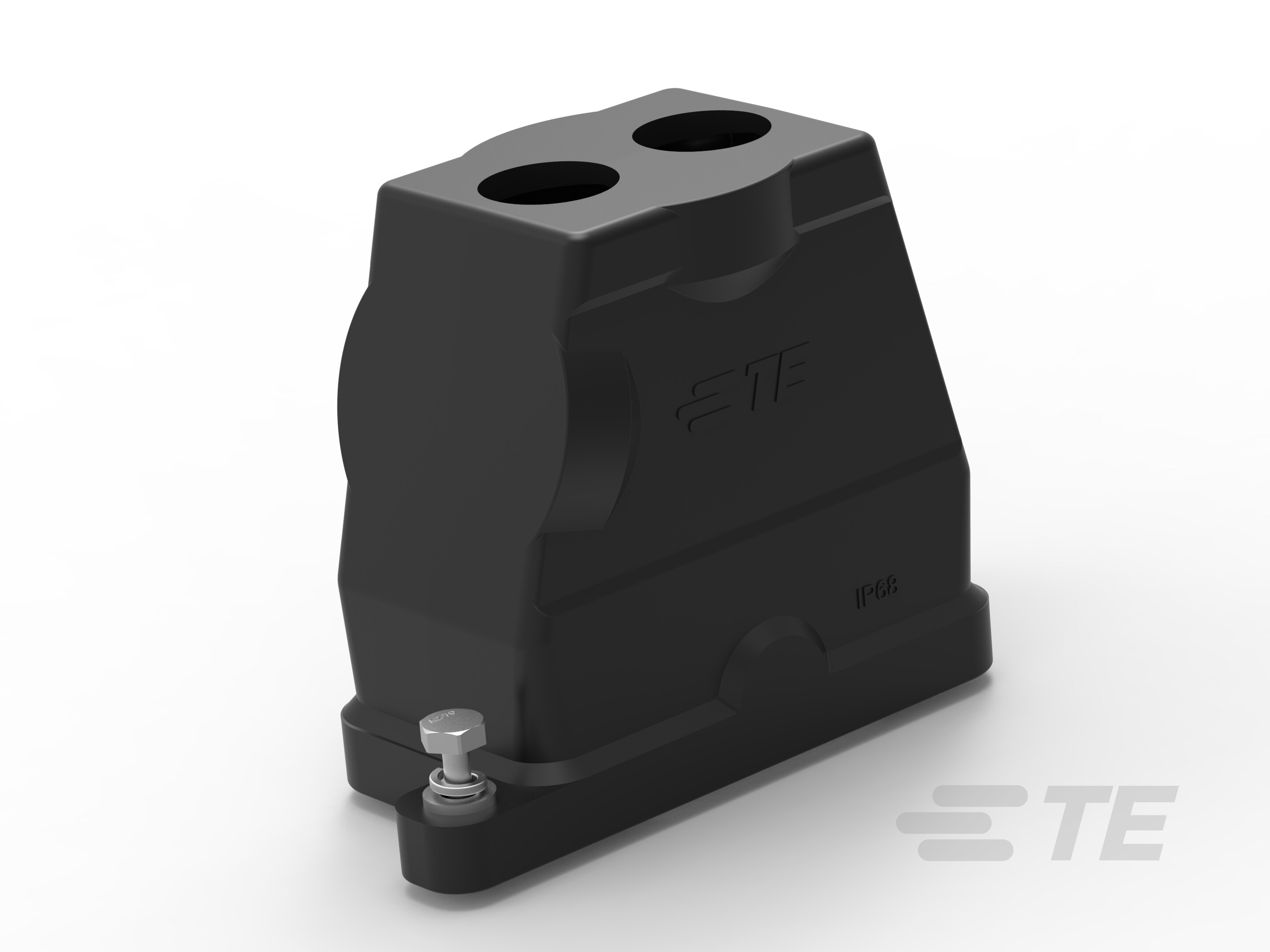

 TE Connectivity AMP Connectors | 5.748 in | 146 mm | 3.976 in | 2.283 in | Powder Coated | Top Entry Dual | H10B | 125 °C | -40 C | M20 | Hood | Black | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | 58 mm | 101 mm | ||||||

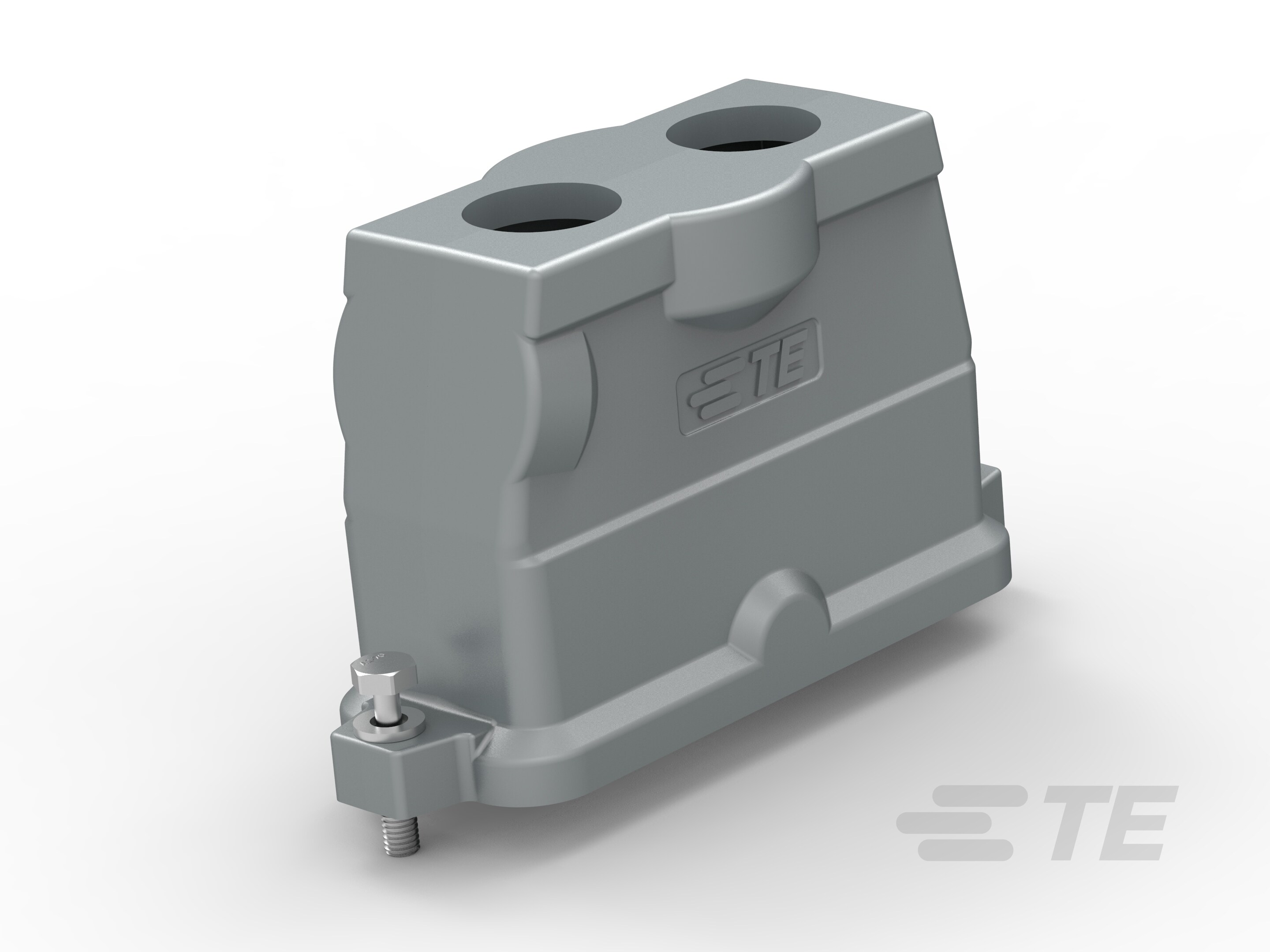

 TE Connectivity AMP Connectors | Powder Coated | Top Entry Dual | H24B | 125 °C | -40 C | PG21 | Hood | Silver | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | 2.244 in 3.543 in 6.142 in | 57 mm 90 mm 156 mm | ||||||||||
 TE Connectivity AMP Connectors | 195 mm | 7.598 " | 193 mm | 7.677 in | 58 mm | 2.283 in | Powder Coated | Top Entry | H24B | 125 °C | -40 C | M63 | Hood | Black | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | ||||||
 TE Connectivity AMP Connectors | 70 mm | 3.78 in | 96 mm | 2.756 " | 53.2 mm | 2.094 " | Powder Coated | Top Entry | H6B | 125 °C | -40 C | Hood | Silver | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood | |||||||

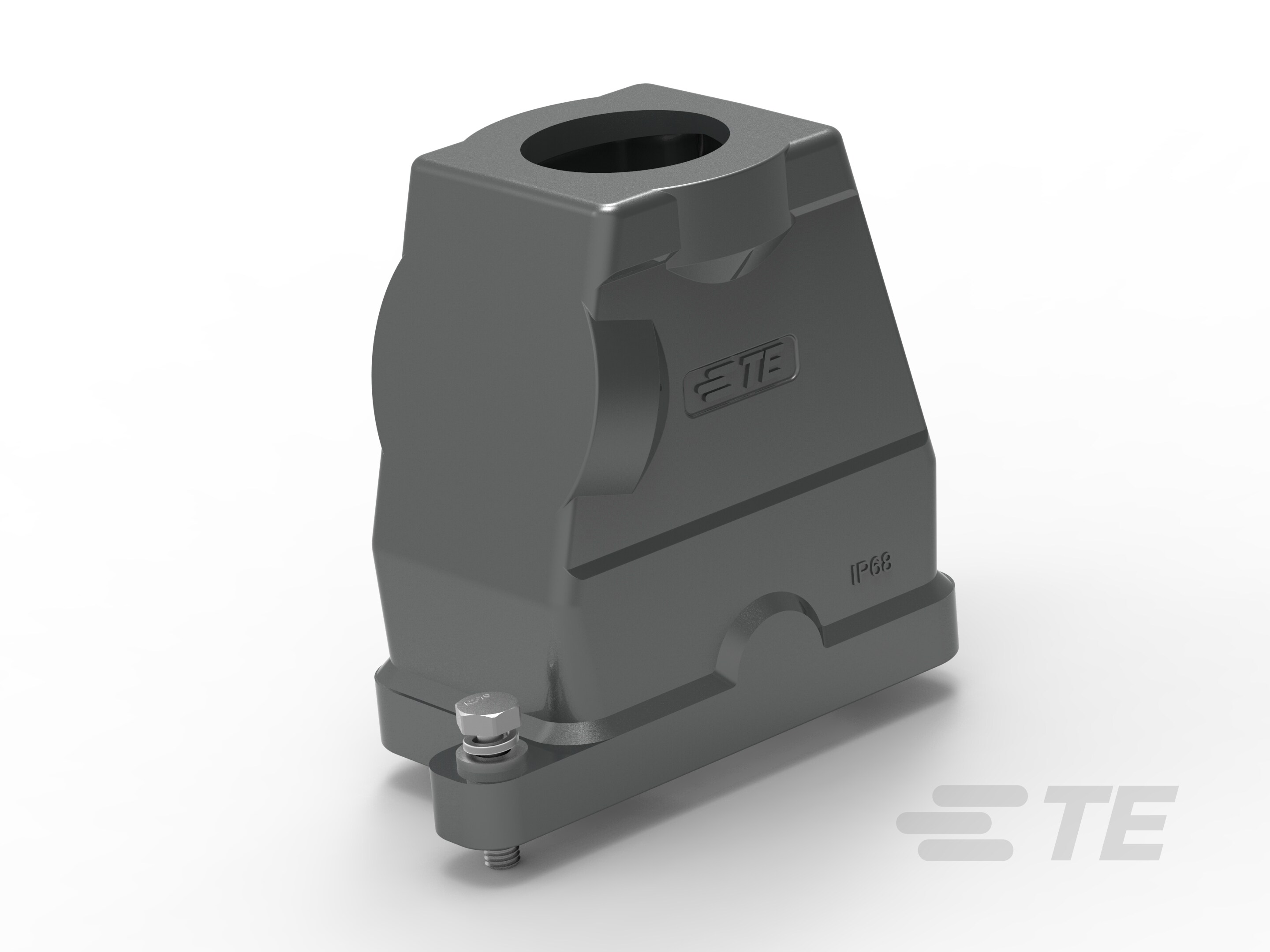

 TE Connectivity AMP Connectors | 101 mm | 5.236 " | 133 mm | 3.976 in | 58 mm | 2.283 in | Powder Coated | Top Entry | H6B | 125 °C | -40 C | PG29 | Hood | Gray | Aluminum Alloy Die Cast | IP68 - Dust Tight Waterproof | Screw Locks on Hood |
