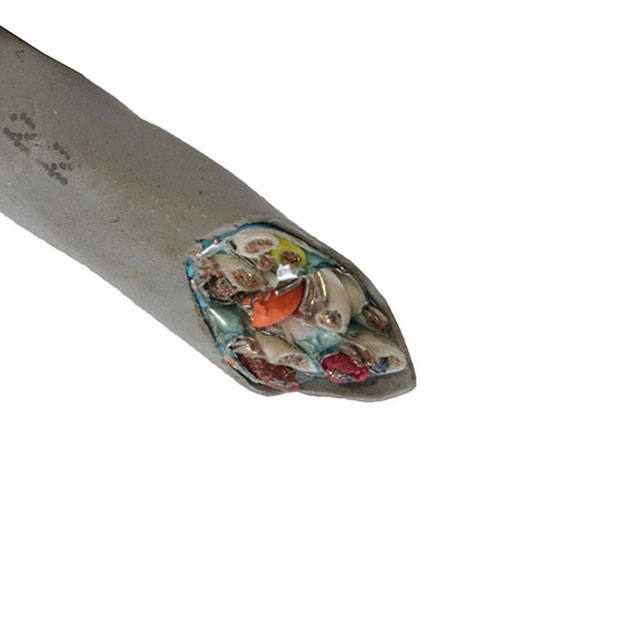

78235 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 5 PAIR, 22 AWG, 0.382 MM², 1000 FT, 305 M
| Part | Shield Coverage | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Features | Conductor Material | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Conductor Insulation | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Ratings | Shield Type | Voltage | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 80 °C | -40 C | Polyphenylene Ether Modified (mPPE) | 0.27 " | 6.86 mm | 22 AWG | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | Slate | 0.381 mm | 0.015 in | Polyphenylene Ether Modified (mPPE) | 304.8 m | 1000 ft | 34 AWG | 19 | 10 | ISO 10993 UL Style 21460 | Foil | 300 VDC | Multi-Pair |
