G41F1C-P Series
Manufacturer: ODU
Beta
⌘K

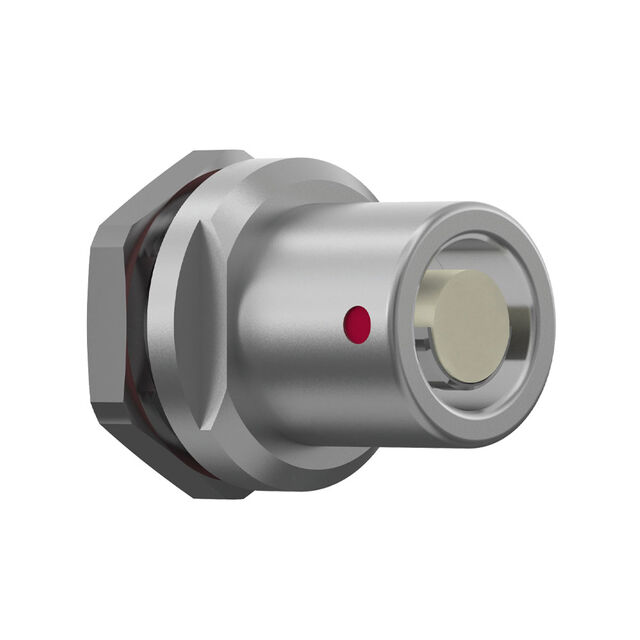

ODU MINI-SNAP RECEPT, STY 4, SZ
| Part | Mounting Type | Shell Size - Insert | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Fastening Type | Ingress Protection | Shell Material | Voltage Rating | Mounting Feature | Orientation [custom] | Connector Type | Shell Finish | Primary Material | Contact Finish - Mating | Applications | Insert Material | Color | Contact Material | Material Flammability Rating | Number of Positions | Shielding | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Panel Mount | 1 | 120 °C | -40 C | 7.5 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 450 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 5 | Unshielded | ||
Panel Mount | 1 | 120 °C | -40 C | 7.5 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 500 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 4 | Unshielded | ||
Panel Mount | 1 | 120 °C | -40 C | 7.5 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 333 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 7 | Unshielded | ||
Panel Mount Through Hole | 1 | 120 °C | -40 C | 4 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 366 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 12 | Unshielded | Solder | |
Panel Mount | 1 | 120 °C | -40 C | 7.5 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 333 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 7 | Unshielded | ||
Panel Mount | 1 | 120 °C | -40 C | 7.5 A | Push-Pull | IP68 - Dust Tight Waterproof | Brass | 450 V | Bulkhead - Rear Side Nut | 1 | Receptacle Female Sockets | Chrome over Nickel | Metal | Gold | Industrial Medical Military Testing Equipment & Measurement | Polyetheretherketone (PEEK) | Silver | Brass | UL94 V-0 | 5 | Unshielded |
