8363-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Length - Overall	Length - Overall	Contact Material	Contact Finish	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]

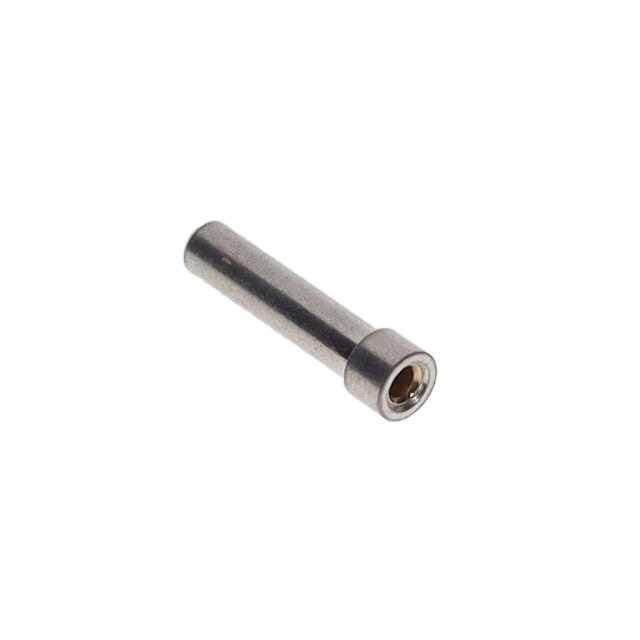

Mill-Max Manufacturing Corp. 8363-0-15-01-35-27-10-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.23 in	5.84 mm	30 Áin	0.76 Ám	Standard Tail	0.29 in	7.37 mm	Beryllium Copper	Gold	0.072 "	1.83 mm	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 8363-0-15-01-35-14-10-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.23 in	5.84 mm	10 Áin	0.25 Ám	Standard Tail	0.29 in	7.37 mm	Beryllium Copper	Gold	0.072 "	1.83 mm	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 8363-0-15-15-35-27-10-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.23 in	5.84 mm	30 Áin	0.76 Ám	Standard Tail	0.29 in	7.37 mm	Beryllium Copper	Gold	0.072 "	1.83 mm	1.45 mm	0.057 in
Mill-Max Manufacturing Corp. 8363-0-15-80-35-84-10-0	-55 C	125 °C	Solder	0.64 mm	0.015 "	0.025 in	0.38 mm	0.23 in	5.84 mm	100 µin	2.54 µm	Standard Tail	0.29 in	7.37 mm	Beryllium Copper	Tin	0.072 "	1.83 mm	1.45 mm	0.057 in
