PTS635 Series

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Actuator Material	Mounting Type	Contact Rating @ Voltage	Operating Force	Switch Function	Circuit	Illumination	Outline [y]	Outline [x]	Actuator Orientation	Mechanical Life	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical [z]	Termination Style	Actuator Length, Right Angle

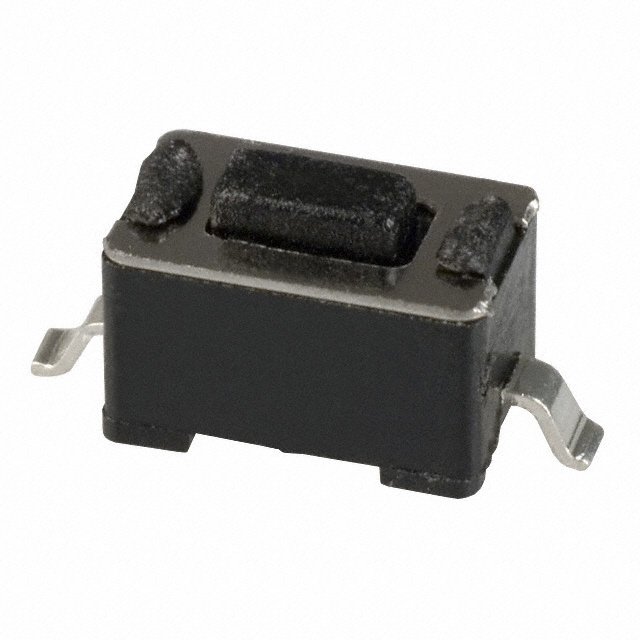

Littelfuse/Commercial Vehicle Products PTS635SL43SMTR	Nylon 6/6 Polyamide (PA66)	Surface Mount	0.05 A 12 VDC	130 gf	Off-Mom	SPST-NO	Non-Illuminated	3.5 mm	6 mm	Top Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C	4.3 mm	Gull Wing

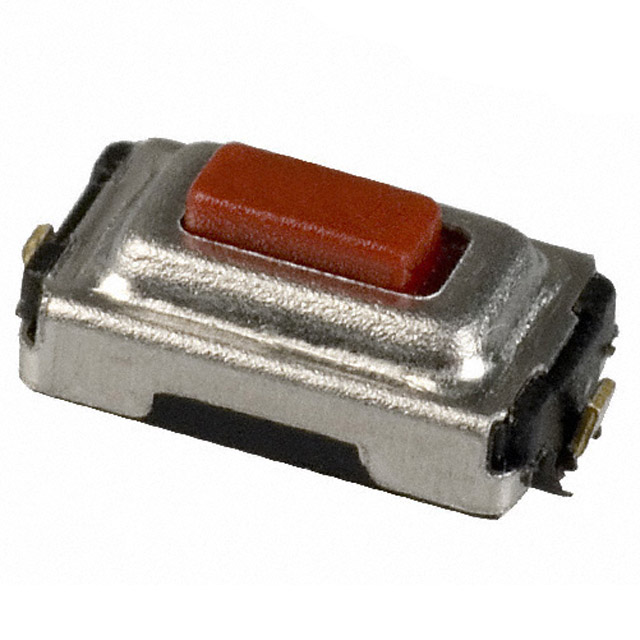

Littelfuse/Commercial Vehicle Products PTS635SK25SM	Nylon 6/6 Polyamide (PA66)	Surface Mount	0.05 A 12 VDC	260 gf	Off-Mom	SPST-NO	Non-Illuminated	3.7 mm	6.1 mm	Top Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C	2.5 mm	Gull Wing

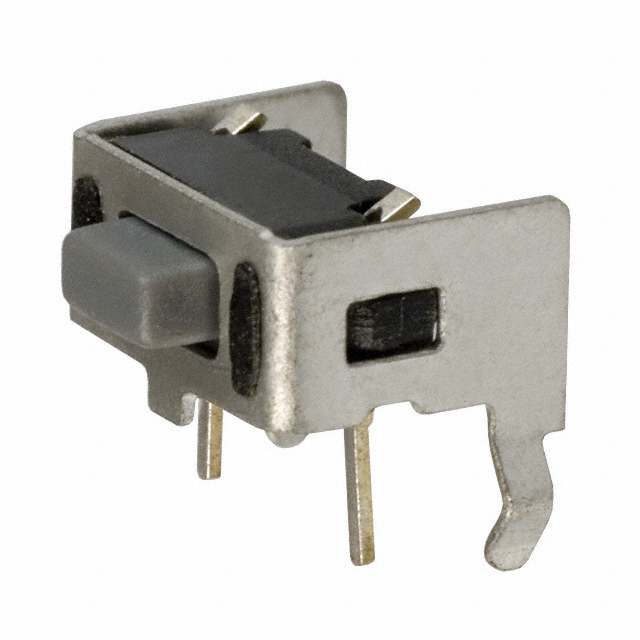

Littelfuse/Commercial Vehicle Products PTS635VH39 LFS	Nylon 6/6 Polyamide (PA66)	Through Hole Right Angle	0.05 A 12 VDC	200 gf	Off-Mom	SPST-NO	Non-Illuminated	3.5 mm	6 mm	Side Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C		PC Pin	3.85 mm
Littelfuse/Commercial Vehicle Products PTS635SK25SMTR LFS	Nylon 6/6 Polyamide (PA66)	Surface Mount	0.05 A 12 VDC	260 gf	Off-Mom	SPST-NO	Non-Illuminated	3.7 mm	6.1 mm	Top Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C	2.5 mm	Gull Wing
Littelfuse/Commercial Vehicle Products PTS635SL43SMTR LFS	Nylon 6/6 Polyamide (PA66)	Surface Mount	0.05 A 12 VDC	130 gf	Off-Mom	SPST-NO	Non-Illuminated	3.5 mm	6 mm	Top Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C	4.3 mm	Gull Wing
Littelfuse/Commercial Vehicle Products PTS635VH31 LFS	Nylon 6/6 Polyamide (PA66)	Through Hole Right Angle	0.05 A 12 VDC	200 gf	Off-Mom	SPST-NO	Non-Illuminated	3.5 mm	6 mm	Side Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C		PC Pin	3.15 mm

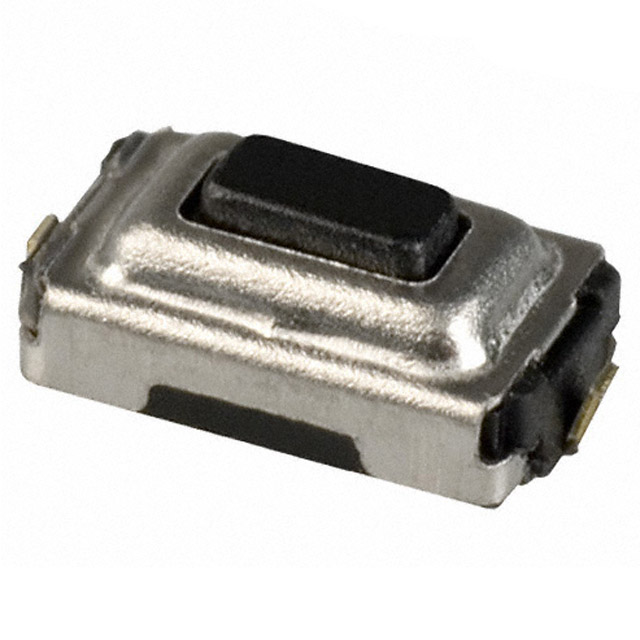

Littelfuse/Commercial Vehicle Products PTS635SL25SMTR	Nylon 6/6 Polyamide (PA66)	Surface Mount	0.05 A 12 VDC	130 gf	Off-Mom	SPST-NO	Non-Illuminated	3.7 mm	6.1 mm	Top Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C	2.5 mm	Gull Wing
Littelfuse/Commercial Vehicle Products PTS635SH43		Surface Mount	0.05 A 12 VDC	200 gf	Off-Mom	SPST-NO	Non-Illuminated			Top Actuated	20000 Cycles	Standard	-40 °C	60 °C	4.3 mm	Gull Wing
Littelfuse/Commercial Vehicle Products PTS635SL25SM LFS		Through Hole	0.05 A 12 VDC	130 gf	Off-Mom	SPST-NO	Non-Illuminated			Top Actuated	20000 Cycles	Standard	-40 °C	60 °C		PC Pin

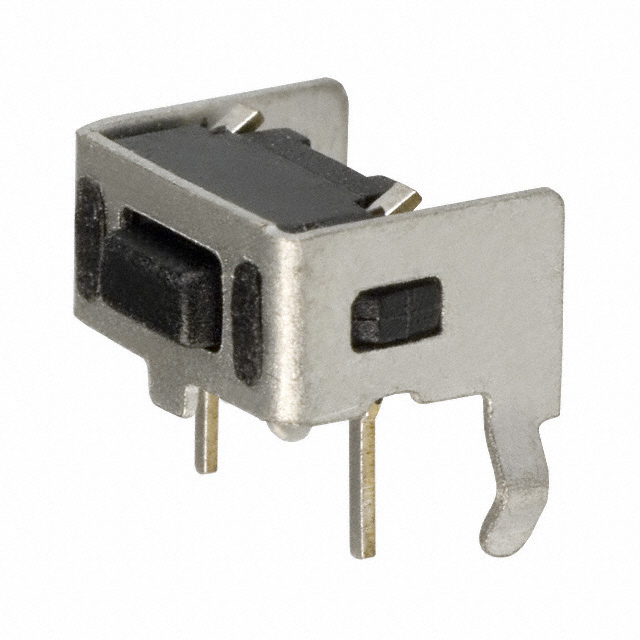

Littelfuse/Commercial Vehicle Products PTS635VL39 LFS	Nylon 6/6 Polyamide (PA66)	Through Hole Right Angle	0.05 A 12 VDC	130 gf	Off-Mom	SPST-NO	Non-Illuminated	3.5 mm	6 mm	Side Actuated	20000 Cycles	Rectangular Button	-40 °C	60 °C		PC Pin	3.85 mm
