NTE305 Series

Catalog

LED-DISPLAY-RED

Part	Voltage - Forward (Vf) (Typ)	Number of Characters	Color	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Test	Display Type	Power Dissipation (Max) [Max]	Millicandela Rating	Package / Case	Package / Case [x]	Package / Case	Wavelength - Peak	Package / Case

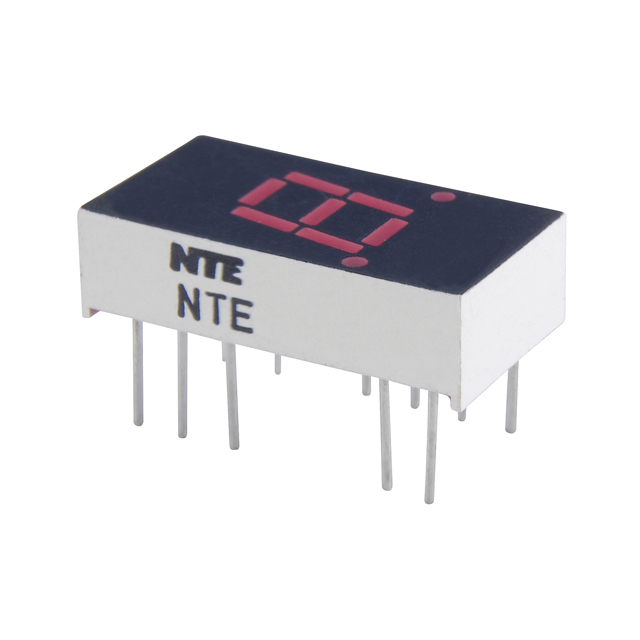

NTE Electronics, Inc NTE3057	1.85 V	1	Red	Common Cathode	7.62 mm	0.3 in	0.738 "	18.75 mm	0.386 in	9.8 mm	0.2 "	0.2 "	20 mA	7-Segment	100 mW	10.5 mcd	10 Leads 14-DIP	0.3 in	7.62 mm	660 nm

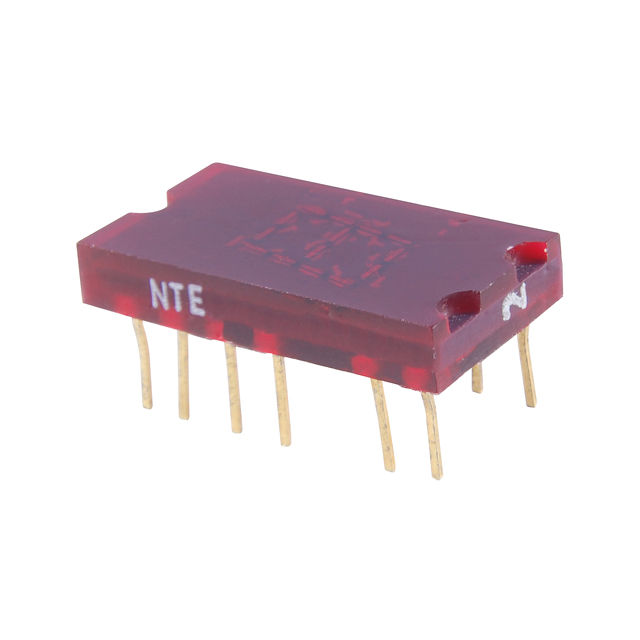

NTE Electronics, Inc NTE3050	3.4 V	1	Red	Common Anode	6.86 mm	0.27 in	0.12 inches	3.05 mm	0.4 "	10.16 mm	0.76 "	19.3 mm	20 mA	7-Segment		0.275 mcd				660 nm

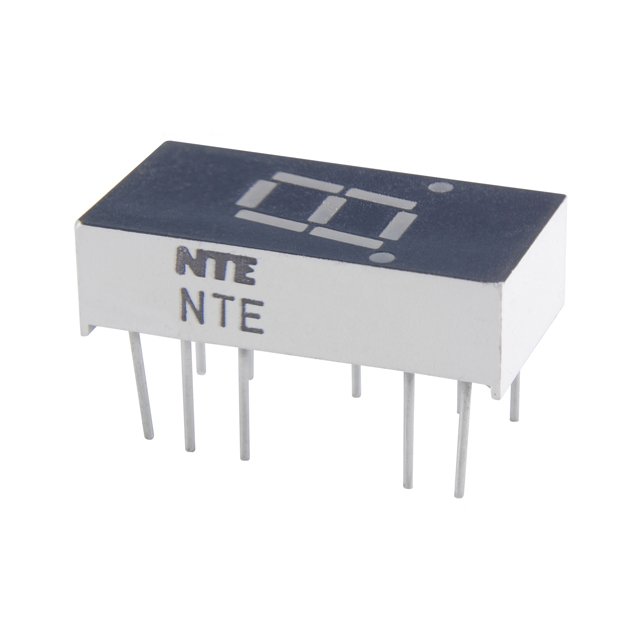

NTE Electronics, Inc NTE3058	2.1 V	1		Common Cathode	7.62 mm	0.3 in	0.738 "	18.75 mm	0.386 in	9.8 mm	0.2 "	0.2 "	10 mA	7-Segment	75 mw	2 mcd	10 Leads 14-DIP	0.3 in	7.62 mm	630 nm

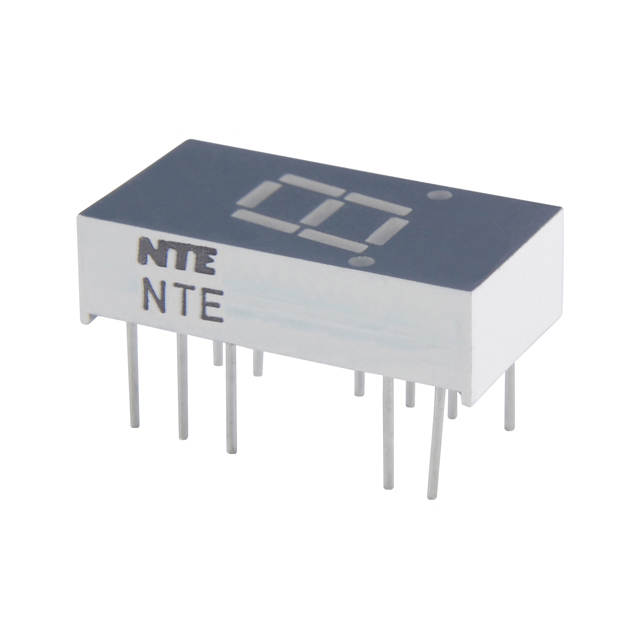

NTE Electronics, Inc NTE3059	2.1 V	1	Green	Common Cathode	7.62 mm	0.3 in	0.738 "	18.75 mm	0.386 in	9.8 mm	0.2 "	0.2 "	10 mA	7-Segment	75 mw	2 mcd	10 Leads 14-DIP	0.3 in	7.62 mm	565 nm

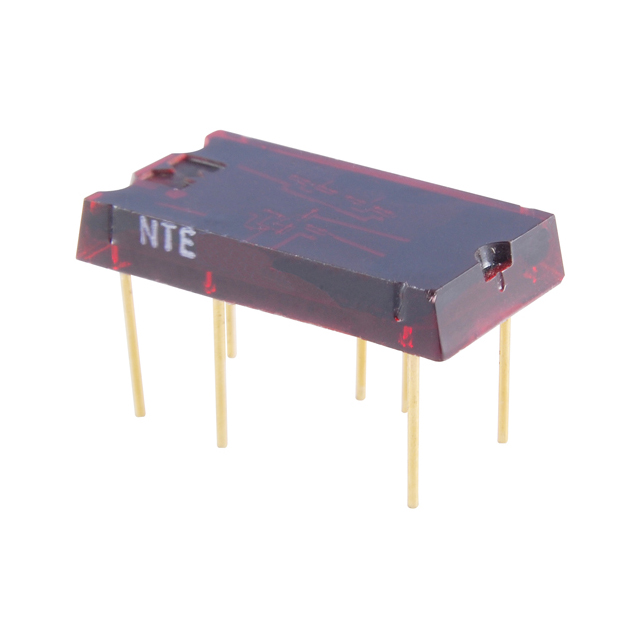

NTE Electronics, Inc NTE3051			Red	Common Anode	6.86 mm	0.27 in	0.12 inches	3.05 mm	0.4 "	10.16 mm	0.76 "	19.3 mm	20 mA			0.275 mcd	14-DIP 6 Leads			660 nm	0.3 in 7.62 mm
NTE Electronics, Inc NTE3054	2.1 V	1	Green	Common Anode	7.62 mm	0.3 in	0.738 "	18.75 mm	0.386 in	9.8 mm	0.2 "	0.2 "	10 mA	7-Segment	75 mw	2 mcd				565 nm
