171510 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

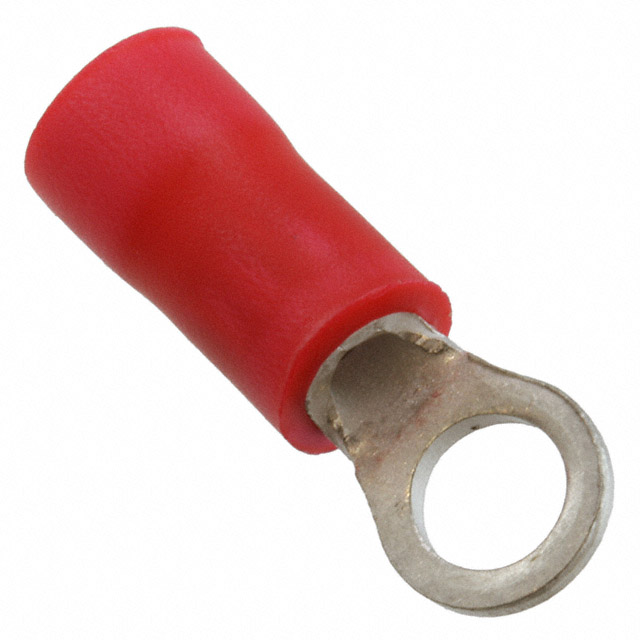

CONN RING CIRC 18-22AWG #4 CRIMP
| Part | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Thickness | Thickness | Contact Material | Features | Mounting Type | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Color | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Stud/Tab Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | 0.79 mm | 0.031 in | Copper | Serrated Termination | Free Hanging (In-Line) | Circular | 5.5 mm | 0.217 in | Red | Insulated | 22 AWG | 17.5 AWG | Crimp | 4 Stud |
 TE Connectivity AMP Connectors | 2.03 mm | 0.12 " | 0.08 in | 3.05 mm | 0.79 mm | 0.031 in | Copper | Serrated Termination | Free Hanging (In-Line) | Circular | 5.5 mm | 0.217 in | Red | Insulated | 22 AWG | 17.5 AWG | Crimp | 6 Stud |
