311-87 Series
Manufacturer: Preci-Dip
Beta
⌘K

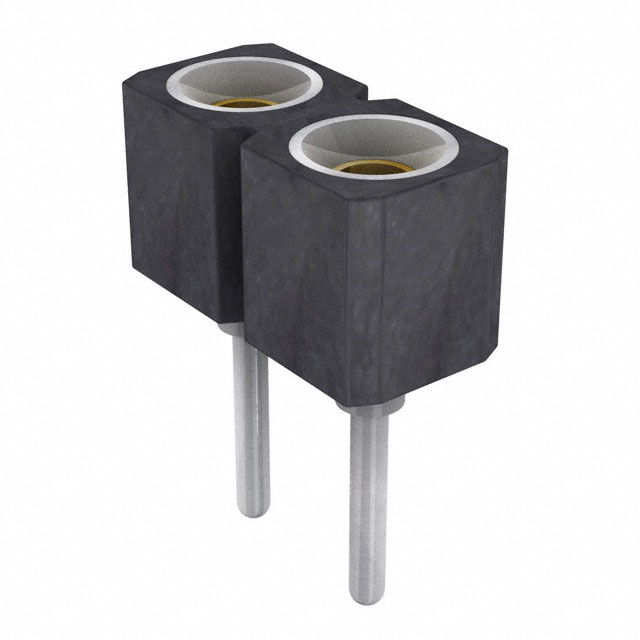

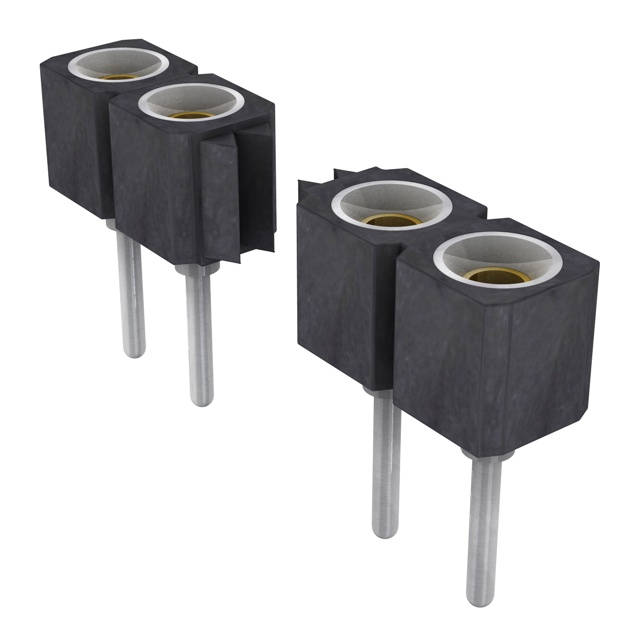

CONN SOCKET 19POS 0.1 GOLD PCB
| Part | Insulation Material | Contact Shape | Contact Material | Connector Type | Contact Finish - Post | Number of Positions | Insulation Height [z] | Insulation Height [z] | Insulation Color | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Fastening Type | Number of Positions Loaded | Contact Finish - Mating | Termination | Contact Finish Thickness - Mating | Contact Length - Post | Contact Length - Post | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Current Rating (Amps) | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 19 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 24 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
 Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 2 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 36 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | 31 | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 51 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | 33 | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 13 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 56 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A | |
Preci-Dip | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | Circular | Beryllium Copper | Socket | Tin | 60 | 4.1 mm | 0.161 in | Black | UL94 V-0 | 0.1 " | 2.54 mm | Push-Pull | All | Gold | Solder | Flash | 0.165 in | 4.19 mm | Through Hole | Female Socket | -55 C | 125 °C | 1 | 3 A |
