ASA01 Series

Catalog

CONN PLG HSG FMALE 12POS INLINE

Part	Housing Color	Note	Contact Shape	Connector Type	Fastening Type	Number of Positions	Shielding	Insert Material	Type	Includes Total Count	Includes	Orientation	Ingress Protection Description	Ingress Protection IP Rating	Features	Shell Finish	Shell Material	Material Flammability Rating	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type
TE Intercontec ASA012N00410235000	Silver	Contacts Not Included	Circular	Plug Housing	Push-Twist	12	Shielded	PBT Polybutylene Terephthalate	For Female Sockets	3 pcs	Backshell Cable Clamp Connector	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Backshell Cable Clamp Coupling Nut	Nickel	Zinc Die Cast	UL94 V-0	-20 °C	130 °C	Free Hanging (In-Line)
TE Intercontec ASA014N00410235000	Silver	Contacts Not Included	Circular	Plug Housing	Push-Twist	17	Shielded	PBT Polybutylene Terephthalate	For Female Sockets	3 pcs	Backshell Cable Clamp Connector	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Backshell Cable Clamp Coupling Nut	Nickel	Zinc Die Cast	UL94 V-0	-20 °C	130 °C	Free Hanging (In-Line)
TE Intercontec ASA014N00620235000	Silver	Contacts Not Included	Circular	Plug Housing	Push-Twist	17	Shielded	PBT Polybutylene Terephthalate	For Female Sockets	3 pcs	Backshell Cable Clamp Connector	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Backshell Cable Clamp Coupling Nut	Nickel	Zinc Die Cast	UL94 V-0	-20 °C	130 °C	Free Hanging (In-Line)

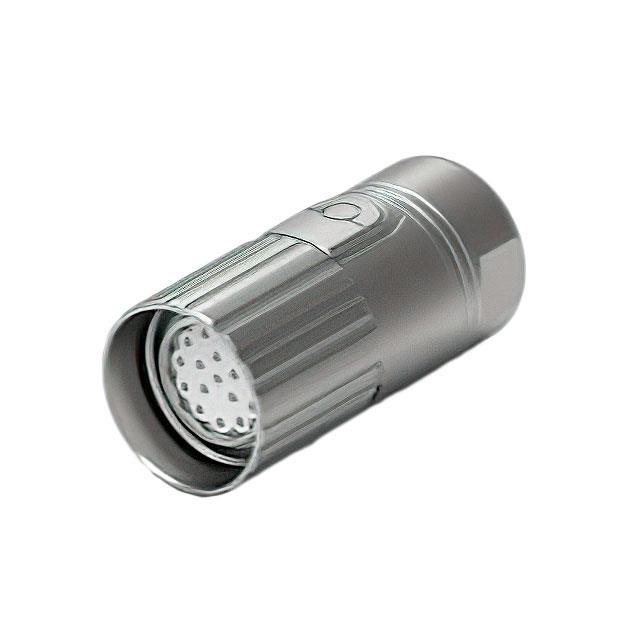

TE Intercontec ASA014N00610235000	Silver	Contacts Not Included	Circular	Plug Housing	Push-Twist	17	Shielded	PBT Polybutylene Terephthalate	For Female Sockets	3 pcs	Backshell Cable Clamp Connector	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Backshell Cable Clamp Coupling Nut	Nickel	Zinc Die Cast	UL94 V-0	-20 °C	130 °C	Free Hanging (In-Line)

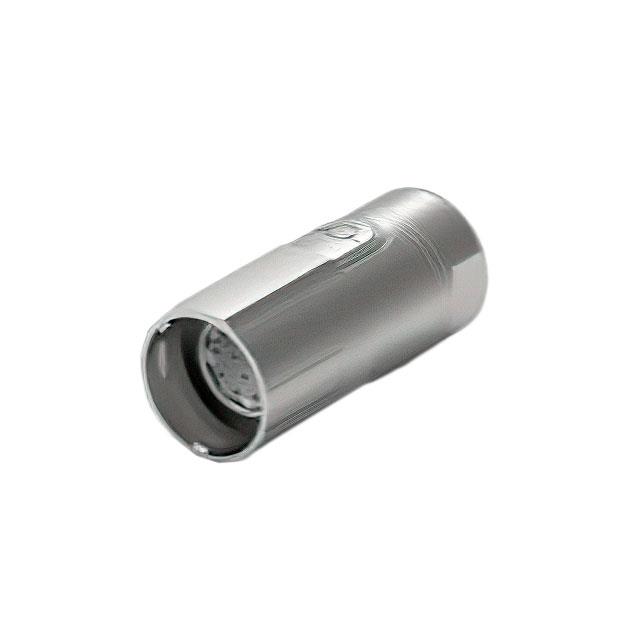

TE Intercontec ASA012N00410100000	Silver	Contacts Not Included	Circular	Plug Housing	Push-Twist	12	Shielded	PBT Polybutylene Terephthalate	For Female Sockets	3 pcs	Backshell Cable Clamp Connector	Keyed	Dust Tight Water Resistant Waterproof	IP66 IP67	Backshell Cable Clamp Coupling Nut	Nickel	Zinc Die Cast	UL94 V-0	-20 °C	130 °C	Free Hanging (In-Line)
