4219-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

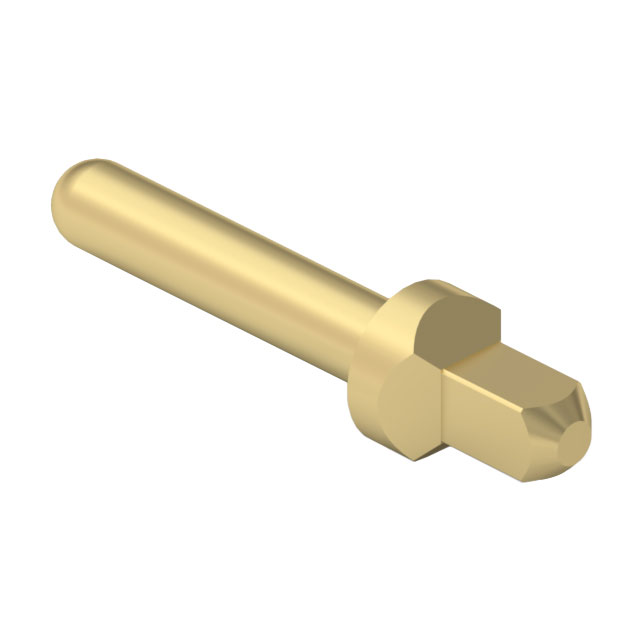

.296" VENTED PIN FOR PLATED THRO
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Terminal Style | Termination | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Mounting Hole Diameter | Mounting Hole Diameter | Length - Overall [x] | Length - Overall [x] | Terminal Type | Insulation | Contact Finish | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.2 in | 5.08 mm | Brass Alloy | Double End | Press-Fit | Through Hole | 0.072 " | 1.83 mm | 0.25 Ám | 10 Áin | 0.04 in | 1.02 mm | 1.3 mm | 0.051 in | 7.52 mm | 0.296 in | PC Pin | Non-Insulated | Gold | 0.06 " | 1.52 mm | 0.05 in | 1.27 mm |
