FR02FC10 Series

Catalog

SWITCH DIP N.O./N.C. SP10T 10 FLUSH SCREWDRIVER 0.1A 5VDC GULL WING 10000CYCLES SMD TUBE

Part	Body Material	Electrical Life	Length [x]	Length [x]	Mechanical Life	Washable	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Actuator Level	Actuator Type	Voltage Rating	Number of Positions	Contact Material	Pitch	Pitch	Termination Style
NKK Switches FR02FC10P-S	Polyamide (PA) Nylon Glass Filled	10000 Cycles	0.394 in	10 mm	10000 Steps		100 mA	85 °C	-25 °C	BCD Complement	0.154 in	3.9 mm	Gold	Surface Mount	Flush Recessed	Rotary for Tool	5 V	10	Copper Alloy	2.54 mm	0.1 "	Gull Wing

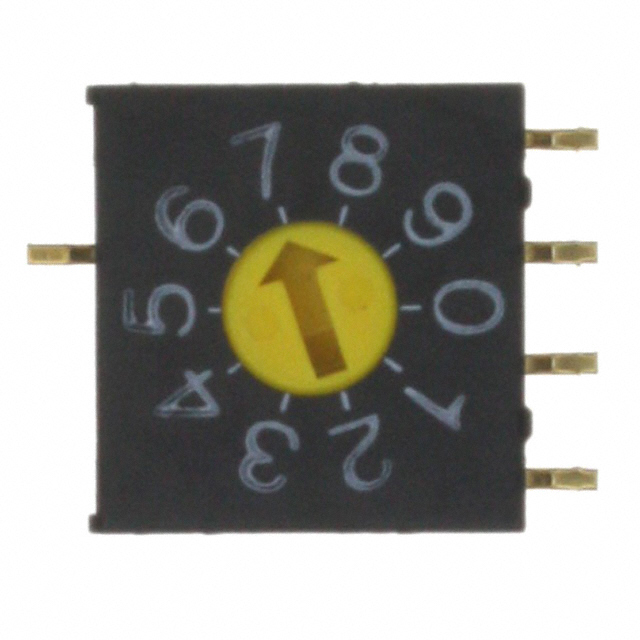

NKK Switches FR02FC10P-R	Polyamide (PA) Nylon Glass Filled	10000 Cycles	0.394 in	10 mm	10000 Steps		100 mA	85 °C	-25 °C	BCD Complement	0.154 in	3.9 mm	Gold	Surface Mount	Flush Recessed	Rotary for Tool	5 V	10	Copper Alloy	2.54 mm	0.1 "	Gull Wing
