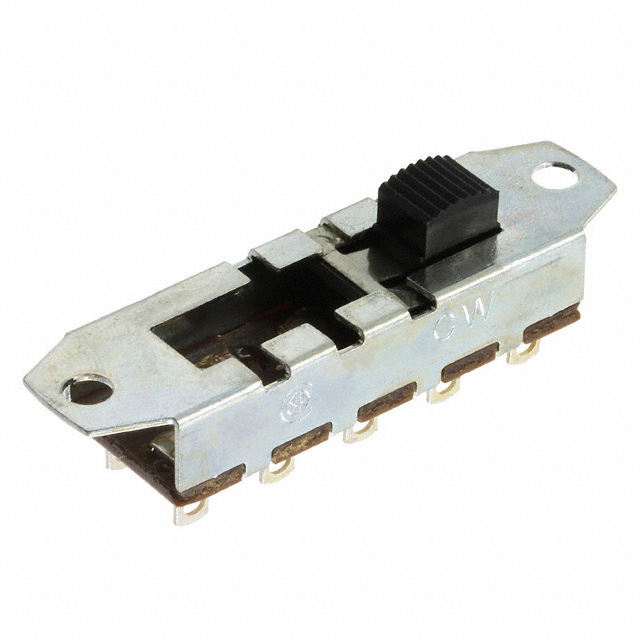

G-1138S Series
Manufacturer: CW Industries
Beta
⌘K

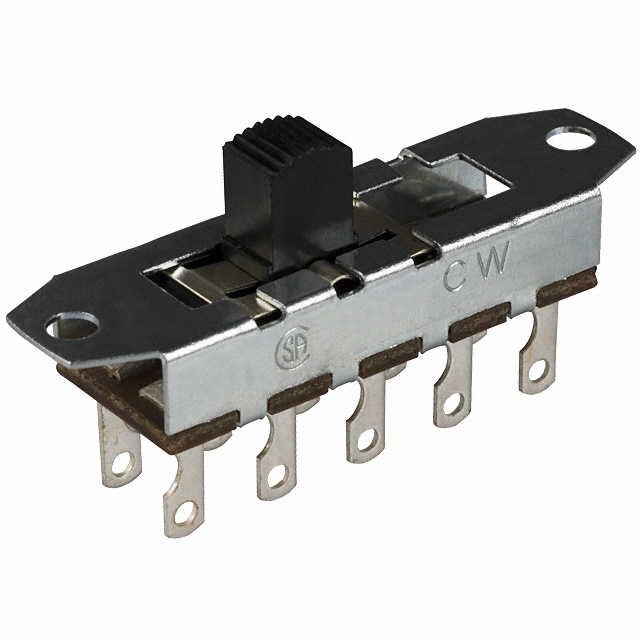

SWITCH SLIDE DP4T 11A 125V
| Part | Mechanical Life | Switch Travel | Electrical Life | Actuator Material | Contact Material | Actuator Type | Actuator Length [x] | Contact Finish | Contact Timing | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Termination Style | Current Rating (Amps) | Switch Function | Mounting Type | Voltage Rating - DC | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CW Industries | 10000 Steps | 6.76 mm | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Standard | 4.78 mm | Silver | Not Specified | -10 °C | 104 °C | 125 V | Solder Lug | 11 A 500 mA | On-On-On-On | Panel Mount | 125 VDC | DP4T |
 CW Industries | 10000 Steps | 6.76 mm | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Standard | 8.74 mm | Silver | Not Specified | -10 °C | 104 °C | 125 V | Solder Lug | 11 A 500 mA | On-On-On-On | Panel Mount | 125 VDC | DP4T |
 CW Industries | 10000 Steps | 6.76 mm | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Standard | Silver | Not Specified | -10 °C | 104 °C | 125 V | Solder Lug | 11 A 500 mA | On-On-On-On | Panel Mount | 125 VDC | DP4T | |
CW Industries | 10000 Steps | 6.76 mm | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Standard | 8.74 mm | Silver | Not Specified | -10 °C | 104 °C | 125 V | Solder Lug | 11 A 500 mA | On-On-On-On | Panel Mount | 125 VDC | DP4T |
CW Industries | 10000 Steps | 6.76 mm | 6000 Cycles | Nylon 6/6 Polyamide (PA66) | Copper | Standard | 4.78 mm | Silver | Not Specified | -10 °C | 104 °C | 125 V | PC Pin | 11 A 500 mA | On-On-On-On | Through Hole | 125 VDC | DP4T |
