895-066 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 66POS 0.100

...

Part	Termination	Termination Rows	Flange Feature	Mounting Type	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Card Type	Pitch	Pitch	Contact Finish	Number of Positions	Number of Rows	Color	Contact Material	Read Out	Contact Type	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Termination Rows [custom]	Number of Rows [custom]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 895-066-524-108	Solder	1	4-40 Threaded Insert Top Mount Opening	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Non Specified - Single Edge	0.1 "	2.54 mm	Gold	66	1	Black	Copper Alloy	Single	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C
EDAC Inc. 895-066-540-507	Wire Wrap		M3 Threaded Insert Top Mount Opening	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2
EDAC Inc. 895-066-523-502	Solder			Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	3.25 mm	0.128 "
EDAC Inc. 895-066-520-504	Solder			Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	3.96 mm	0.156 "
EDAC Inc. 895-066-555-803	Solder		Floating Bobbin Top Mount Opening	Board Edge Straddle Mount	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	2.95 mm	0.116 "	Card Extender

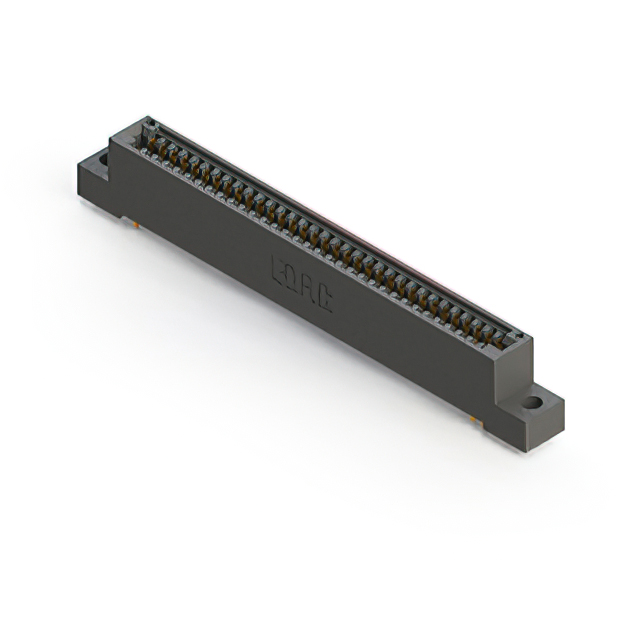

EDAC Inc. 895-066-541-204	Wire Wrap		Flush Mount Top Opening Unthreaded	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	3.96 mm	0.156 "

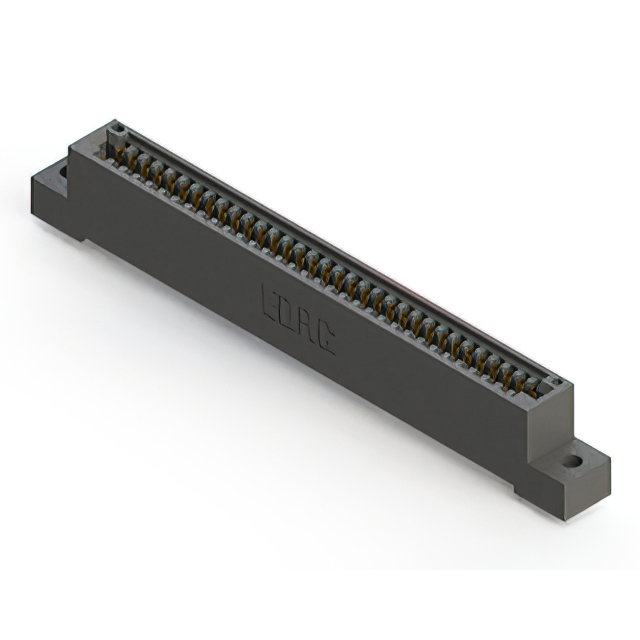

EDAC Inc. 895-066-556-202	Solder		Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	3.25 mm	0.128 "	Card Extender
EDAC Inc. 895-066-540-812	Wire Wrap		Side Mount Opening Unthreaded	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2	3.25 mm	0.128 "
EDAC Inc. 895-066-523-807	Solder		M3 Threaded Insert Top Mount Opening	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	33	Non Specified - Dual Edge	0.1 "	2.54 mm	Gold	66		Black	Copper Alloy	Dual	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C	2	2
EDAC Inc. 895-066-541-112	Wire Wrap	1	Flush Mount Side Opening Unthreaded	Through Hole	Female	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	66	Non Specified - Single Edge	0.1 "	2.54 mm	Gold	66	1	Black	Copper Alloy	Single	Cantilever	Polyphenylene Sulfide (PPS)	125 °C	-40 C			3.25 mm	0.128 "
