TPSM82822 Series

Catalog

5.5-V INPUT, 2-A STEP-DOWN MODULE WITH INTEGRATED INDUCTOR IN 2 X 2.5 X 1.1-MM ΜSIP PACKAGE

Part	Mounting Type	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Number of Outputs	Type	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Features	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Efficiency	Voltage - Input (Max) [Max]	Board Type	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Regulator Topology	Utilized IC / Part	Contents	Voltage - Output	Current - Output	Frequency - Switching	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]
Texas Instruments TPSM828224SILR	Surface Mount	2 A	125 °C	-40 C	ITE (Commercial)	3.3 V	2.4 V	1	Non-Isolated PoL Module	10-TFDFN Module	1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	Remote On/Off	2	2.5	10-uSIP	95 %	5.5 V

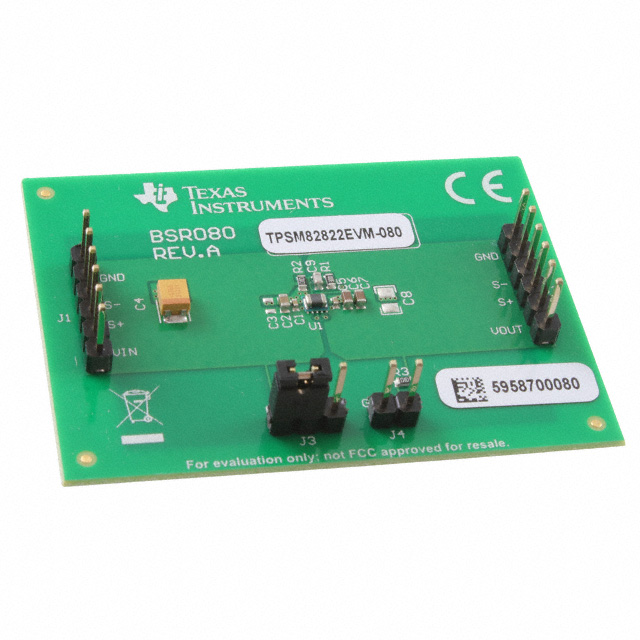

Texas Instruments TPSM82822EVM-080																							Fully Populated	Board(s)	1	1 Non-Isolated Output Non-Isolated	2.4 V	5.5 V	DC/DC Step Down	Buck	TPSM82822	Board(s)	1.8 V	2 A	4 MHz
Texas Instruments TPSM828222SILR	Surface Mount	2 A	125 °C	-40 C	ITE (Commercial)	1.8 V	2.4 V	1	Non-Isolated PoL Module	10-TFDFN Module	1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	Remote On/Off	2	2.5	10-uSIP	95 %	5.5 V
Texas Instruments TPSM82822SILR	Surface Mount	2 A	125 °C	-40 C	ITE (Commercial)		2.4 V	1	Non-Isolated PoL Module	10-LDFN Exposed Pad Module	1.1 mm 1.6 mm	2 mm 3 mm	0.1 " 0.15 "	2.5 mm 3.8 mm	0.08 in 0.12 in	0.04 in 0.06 "	Adjustable Output	3	3.8	10-uSIP	95 %	5.5 V														4 V	0.6 V
Texas Instruments TPSM828223SILR	Surface Mount	2 A	125 °C	-40 C	ITE (Commercial)	2.5 V	2.4 V	1	Non-Isolated PoL Module	10-TFDFN Module	1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	Remote On/Off	2	2.5	10-uSIP	95 %	5.5 V
Texas Instruments TPSM828221SILR	Surface Mount	2 A	125 °C	-40 C	ITE (Commercial)	1.2 V	2.4 V	1	Non-Isolated PoL Module	10-TFDFN Module	1.1 mm	2 mm	0.1 "	2.5 mm	0.08 in	0.04 in	Remote On/Off	2	2.5	10-uSIP	95 %	5.5 V
