K22X-E9P Series
Manufacturer: Kycon, Inc.
Beta
⌘K

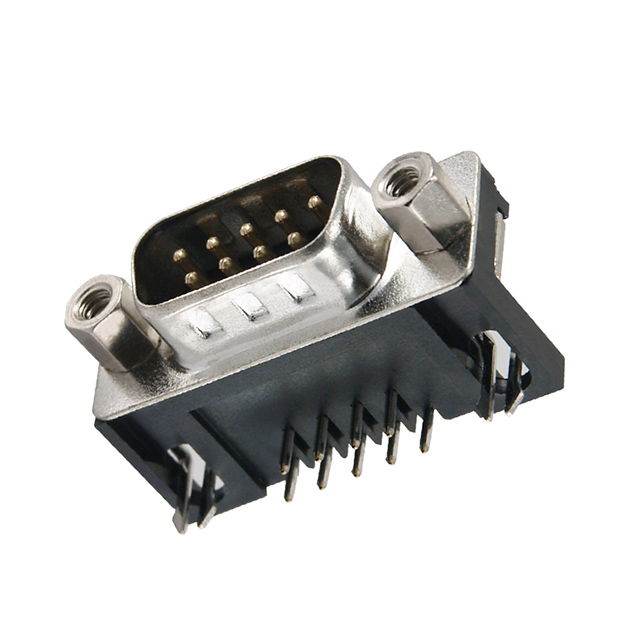

CONN D-SUB PLUG 9POS R/A SOLDER
| Part | Voltage Rating | Contact Material | Contact Form | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Termination | Connector Style | Current Rating (Amps) | Connector Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish | Flange Feature | Shell Material, Finish | Backset Spacing | Backset Spacing | Features | Material Flammability Rating | Number of Positions | Number of Rows [custom] | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | 30 VDC | Brass | Stamped | Polybutylene Terephthalate (PBT) Glass Filled | -55 C | 105 ░C | Black | Solder | D-Sub | 2 A | Plug Male Pins | 1 | DE E | 30 Áin | 0.76 Ám | Right Angle Through Hole | Gold | 4-40 Mating Side Female Screwlock | Nickel Plated Steel | 8.08 mm | 0.318 " | Board Lock Grounding Indents | UL94 V-0 | 9 | 2 | Signal |
