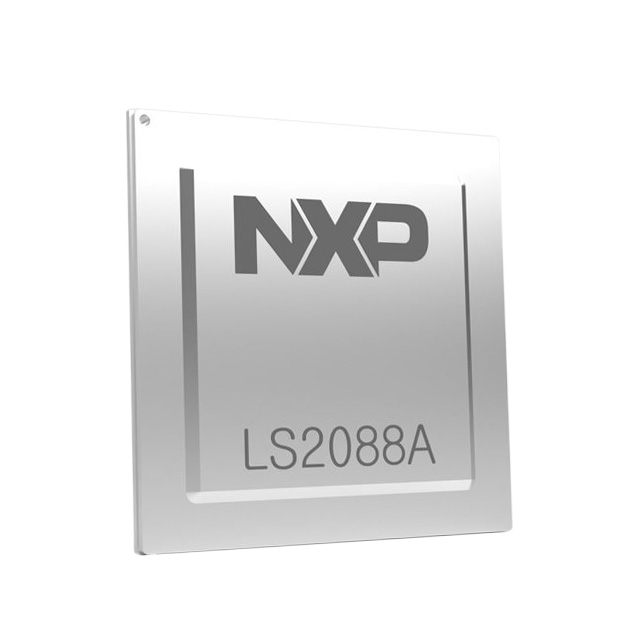

LS2088 Series

Catalog

LAYERSCAPE 64-BIT ARM CORTEX-A72, 8-CORE, 2.1GHZ, 0 TO 105C, SECURITY DISABLED, AIOP/ TRAY ROHS COMPLIANT: YES

Part	Package / Case	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Number of Cores/Bus Width	RAM Controllers	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Additional Interfaces	SATA	SATA	Ethernet	Core Processor	USB	Mounting Type	Contents	Board Type	Utilized IC / Part	Type
Freescale Semiconductor - NXP LS2088ASN711B	1292-BBGA FCBGA	37.5	1292-FCPBGA	37.5	8 Core 64 Bit	DDR4	2.1 GHz	105 °C	0 °C	I2C SPI UART	SATA 6Gbps	2	10GbE (8) 2.5GbE (16)	ARM® Cortex®-A72	USB 3.0 + PHY (2)	Surface Mount
Freescale Semiconductor - NXP LS2088AXE7V1B	1292-BFBGA FCBGA	37.5	1292-FCPBGA	37.5	8 Core 64 Bit	DDR4	2 GHz	105 ░C	-40 °C		SATA 6Gbps	2	10GbE (8) 1GbE (16) 2.5GbE (1)	ARM® Cortex®-A72	USB 3.0 (2) + PHY	Surface Mount
Freescale Semiconductor - NXP LS2088AXN7V1B	1292-BFBGA FCBGA	37.5	1292-FCPBGA	37.5	8 Core 64 Bit	DDR4	2 GHz	105 ░C	-40 °C		SATA 6Gbps	2	10GbE (8) 1GbE (16) 2.5GbE (1)	ARM® Cortex®-A72	USB 3.0 (2) + PHY	Surface Mount
Freescale Semiconductor - NXP LS2088AXE711B	1292-BBGA FCBGA	37.5	1292-FCPBGA	37.5	8 Core 64 Bit	DDR4	2.1 GHz	105 °C	-40 °C	I2C SPI UART	SATA 6Gbps	2	10GbE (8) 2.5GbE (16)	ARM® Cortex®-A72	USB 3.0 + PHY (2)	Surface Mount
Freescale Semiconductor - NXP LS2088ASE7QQB	1292-BBGA FCBGA	37.5	1292-FCPBGA	37.5	8 Core 64 Bit	DDR4	1.6 GHz	105 °C	0 °C	I2C SPI UART	SATA 6Gbps	2	10GbE (8) 2.5GbE (16)	ARM® Cortex®-A72	USB 3.0 + PHY (2)	Surface Mount
Freescale Semiconductor - NXP LS2088ARDB-KIT														ARM® Cortex®-A72		Fixed	Board(s)	Evaluation Platform	LS2088A	MPU
