NCP1090 Series
Manufacturer: ON Semiconductor
Beta
⌘K
INTEGRATED POE-PD INTERFACE CONTROLLER, IEEE 802.3AF, 15W
| Part | Mounting Type | Internal Switch(s) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Package / Case | Package / Case [y] | Package / Case [x] | Power - Max [Max] | Voltage - Supply [Min] | Voltage - Supply [Max] | Auxiliary Sense | Number of Channels | Standards | Function | Type | Supplied Contents | Contents | Utilized IC / Part | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | Surface Mount | 85 °C | -40 °C | 8-SOIC | 8-SOIC | 3.9 mm | 0.154 in | 12.95 W | 0 V | 57 V | 1 | 802.3af (PoE) | |||||||||

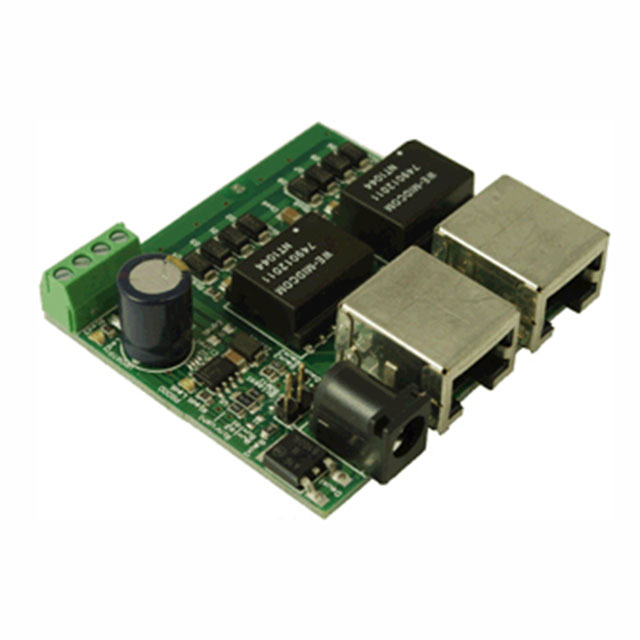

 ON Semiconductor | Power Over Ethernet (POE) | Power Management | Board(s) | Board(s) | NCP1090 | ||||||||||||||||
 ON Semiconductor | Surface Mount | 85 °C | -40 °C | 8-TSSOP | 8-TSSOP | 12.95 W | 0 V | 57 V | 1 | 802.3af (PoE) | 0.173 " | 4.4 mm | |||||||||
ON Semiconductor | Surface Mount | 85 °C | -40 °C | 8-SOIC | 8-SOIC | 3.9 mm | 0.154 in | 12.95 W | 0 V | 57 V | 1 | 802.3af (PoE) |
