PKU441 Series

Catalog

DC DC CONVERTER 1.8V 45W

Part	Voltage - Input (Min) [Min]	Package / Case	Features	Control Features	Mounting Type	Power (Watts)	Efficiency	Voltage - Input (Max) [Max]	Number of Outputs	Type	Current - Output (Max) [Max]	Supplier Device Package	Standard Number	Applications	Approval Agency	Voltage - Output 1	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]
Flex Power Modules PKU4418GPI	36 V	Sixteenth Brick	Adjustable Output Remote On/Off Remote Sense	Active Low Enable	Through Hole	45 W	86.8 %	75 V	1	Isolated Module	25 A	Sixteenth Brick	62368-1	ITE (Commercial)	CB CSA IEC TUV UL	1.8 V	1.5 kV	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	120 °C	-45 °C

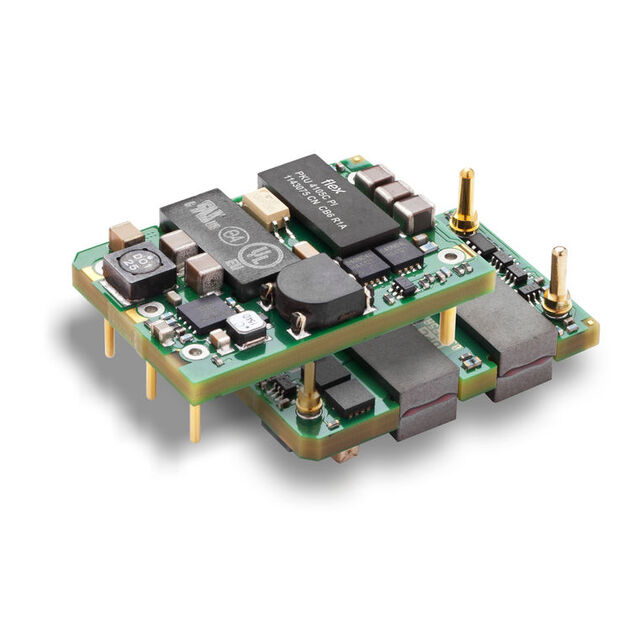

Flex Power Modules PKU4416ZSI	28 V	Sixteenth Brick	Adjustable Output Remote On/Off	Active Low Enable	Surface Mount	43 W	91.7 %	60 V	1	Isolated Module	1.8 A	Sixteenth Brick	62368-1	ITE (Commercial)	CB CSA IEC TUV UL	24 V	1.5 kV	0.9 in			1.3 in	0.38 in	33 mm	125 °C	-40 °C	9.6 mm	22.9 mm
Flex Power Modules PKU4411EPI	36 V	Sixteenth Brick	Adjustable Output Remote On/Off	Active Low Enable	Through Hole	40 W	90.8 %	72 V	1	Isolated Module	8 A	Sixteenth Brick	62368-1	ITE (Commercial)	CB CSA IEC TUV UL	5 V	1.5 kV	0.9 in			1.3 in	0.3 in	33 mm	105 C	-40 °C	7.5 mm	22.9 mm
Flex Power Modules PKU4411ESI	36 V	Sixteenth Brick	Adjustable Output Remote On/Off	Active Low Enable	Surface Mount	40 W	90.8 %	72 V	1	Isolated Module	8 A	Sixteenth Brick	62368-1	ITE (Commercial)	CB CSA IEC TUV UL	5 V	1.5 kV	0.9 in			1.3 in	0.3 in	33 mm	105 C	-40 °C	7.5 mm	22.9 mm
