R12547 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

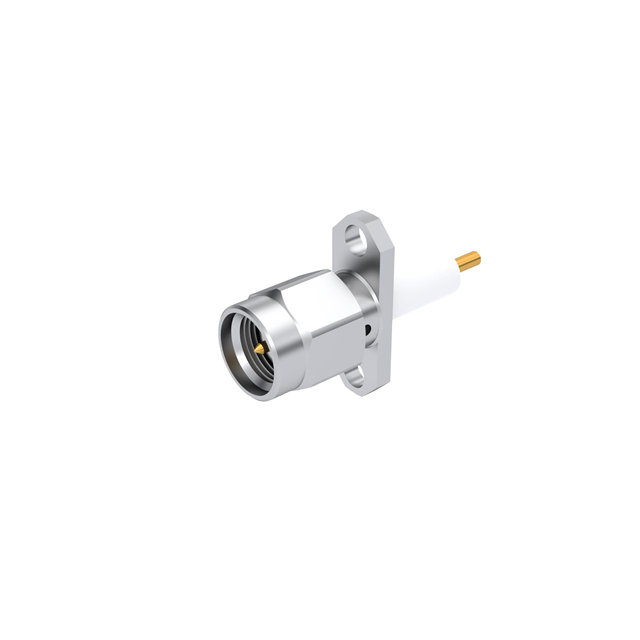

SMA / ADJUST. 2 HOLE FLANGE PLUG
| Part | Center Contact Plating | Mating Cycles | Dielectric Material | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Shield Termination | Mounting Feature | Contact Termination | Housing Color | Mounting Type | Number of Ports | Connector Type | Impedance | Frequency - Max [Max] | Features | Center Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 V | -65 ░C | 165 °C | SMA | Solder | Flange | Solder | Silver | Panel Mount Through Hole | 1 | Plug Male Pin | 50 Ohms | 18 GHz | Extended Insulation | Brass | Threaded |
 Radiall USA, Inc. | Gold | 500 | Polytetrafluoroethylene (PTFE) | Stainless Steel | 500 V | -65 ░C | 165 °C | SMA | Solder | Flange | Solder | Silver | Panel Mount Through Hole | 1 | Plug Male Pin | 50 Ohms | 18 GHz | Extended Insulation | Brass | Threaded |
