2000 Series

Catalog

FIXED IND 18UH 4.5A 32 MOHM TH

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Shielding	Type	Mounting Type	Inductance	Package / Case	Inductance Frequency - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	DC Resistance (DCR) [Max]
Bourns Inc. 2000-180-H-RC	4.5 A	-55 C	105 ░C	32 mOhm	Unshielded	Toroidal	Through Hole	18 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	15 %

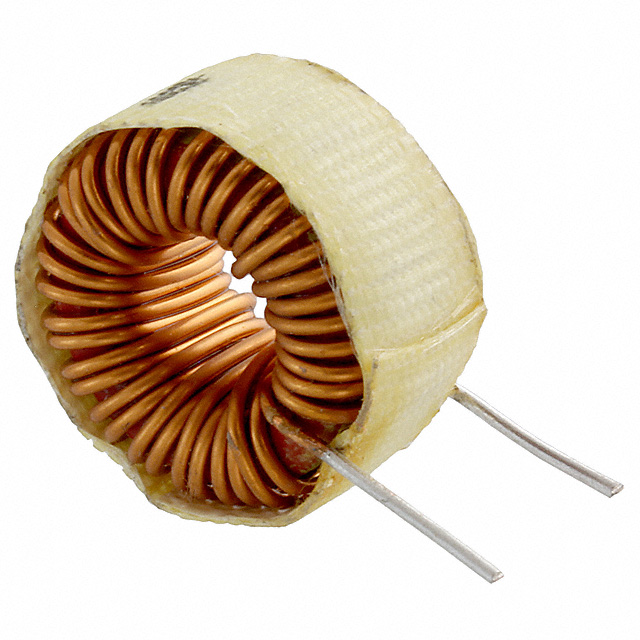

Bourns Inc. 2000-180-V-RC	4.5 A	-55 C	105 ░C	32 mOhm	Unshielded	Toroidal	Through Hole	18 µH	Radial Vertical (Open)	1 kHz			15 %	0.68 in	10.41 mm	17.27 mm	0.41 in
Bourns Inc. 2000-3R3-V-RC	11.1 A	-55 C	105 ░C	5.3 mOhm	Unshielded	Toroidal	Through Hole	3.3 µH	Radial Vertical (Open)	1 kHz			20 %	0.68 in	10.41 mm	17.27 mm	0.41 in
Bourns Inc. 2000-2R7-H-RC	14.7 A	-55 C	105 ░C	3 mOhm	Unshielded	Toroidal	Through Hole	2.7 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	20 %
Bourns Inc. 2000-100-H-RC	6.6 A	-55 C	105 ░C		Unshielded	Toroidal	Through Hole	10 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	15 %					15 mOhm
Bourns Inc. 2000-330-H-RC	3.5 A	-55 C	105 ░C		Unshielded	Toroidal	Through Hole	33 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	15 %					54 mOhm
Bourns Inc. 2000-150-V-RC	4.7 A	-55 C	105 ░C	29 mOhm	Unshielded	Toroidal	Through Hole	15 µH	Radial Vertical (Open)	1 kHz			15 %	0.68 in	10.41 mm	17.27 mm	0.41 in
Bourns Inc. 2000-220-V-RC	4.3 A	-55 C	105 ░C		Unshielded	Toroidal	Through Hole	22 µH	Radial Vertical (Open)	1 kHz			15 %	0.68 in	10.41 mm	17.27 mm	0.41 in	35 mOhm
Bourns Inc. 2000-470-H-RC	3.2 A	-55 C	105 ░C		Unshielded	Toroidal	Through Hole	47 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	15 %					64 mOhm
Bourns Inc. 2000-1R2-H-RC	20.2 A	-55 C	105 ░C	1.7 mOhm	Unshielded	Toroidal	Through Hole	1.2 µH	Radial Horizontal (Open)	1 kHz	0.41 in	10.41 mm	20 %
