ATS-02D Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

HEATSINK 30X30X35MM R-TAB T766

...

Part	Attachment Method	Type	Fin Height [custom]	Fin Height [custom]	Material	Shape	Width [x]	Width [x]	Package Cooled	Material Finish	Length	Length	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Shape [custom]	Shape [custom]	Length	Fin Height	Fin Height	Fin Height [z]	Fin Height [z]	Width [y]	Width [y]	Width	Width
Advanced Thermal Solutions Inc. ATS-02D-174-C2-R0	Push Pin	Top Mount	1.378 in	35 mm	Aluminum	Fins Square	30 mm	1.181 in	ASIC BGA CPU LGA	Blue Anodized	0.03 m	1.181 in
Advanced Thermal Solutions Inc. ATS-02D-200-C2-R0	Push Pin	Top Mount	0.394 "	10 mm	Aluminum	Fins Square	50 mm	1.969 in	ASIC BGA CPU LGA	Blue Anodized			9.78 °C/W	50 mm	1.969 in

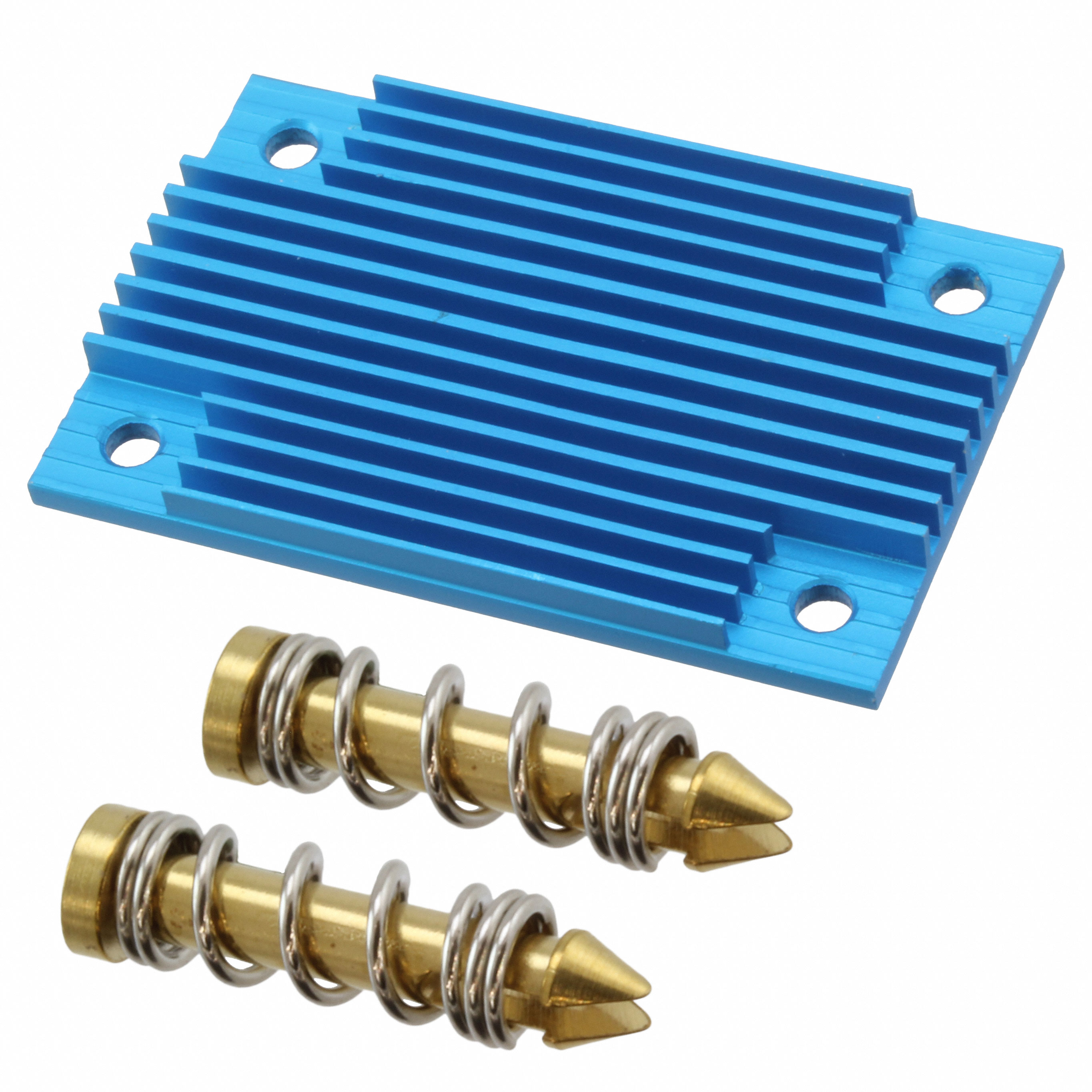

Advanced Thermal Solutions Inc. ATS-02D-31-C2-R0	Push Pin	Top Mount			Aluminum		36.83 mm	1.45 in	ASIC BGA CPU LGA	Blue Anodized	2.28 in		25.25 °C/W			Rectangular	Fins	57.9 mm	0.23 in	5.84 mm
Advanced Thermal Solutions Inc. ATS-02D-62-C1-R0	Push Pin	Top Mount			Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			16.45 °C/W								15 mm	0.59 in	1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02D-106-C2-R1	Push Pin	Top Mount			Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			26.6 °C/W	45 mm	1.772 in				0.5 "	12.7 mm					1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-02D-123-C1-R0	Push Pin	Top Mount			Aluminum	Fins Square	50 mm	1.969 in	ASIC BGA CPU LGA	Blue Anodized			4.14 °C/W	50 mm	1.969 in						20 mm	0.79 in
Advanced Thermal Solutions Inc. ATS-02D-05-C1-R0	Push Pin	Top Mount			Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			8.69 °C/W						0.984 in	25 mm			1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02D-102-C1-R0	Push Pin	Top Mount	1.378 in	35 mm	Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			5.22 °C/W	45 mm	1.772 in										1.772 in	45 mm
Advanced Thermal Solutions Inc. ATS-02D-193-C3-R0	Push Pin	Top Mount			Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			21.29 °C/W						0.236 "	6 mm			1.575 in	40 mm
Advanced Thermal Solutions Inc. ATS-02D-206-C3-R0	Push Pin	Top Mount	0.394 "	10 mm	Aluminum	Fins Square			ASIC BGA CPU LGA	Blue Anodized			7.79 °C/W	60 mm	2.362 in								2.362 in	60 mm
