329444 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

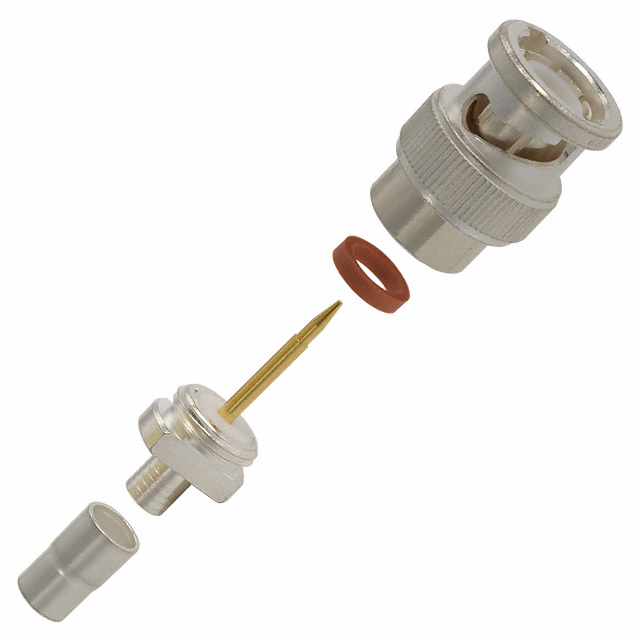

CONN BNC PLUG STR 50 OHM PUSH
| Part | Mating Cycles | Body Finish | Connector Style | Center Contact Plating | Center Contact Material | Body Material | Frequency - Max [Max] | Dielectric Material | Mounting Type | Cable Group | Fastening Type | Voltage Rating | Shield Termination | Impedance | Number of Ports | Connector Type | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 | Silver | BNC | Gold | Brass | Brass | 2.5 GHz | Polytetrafluoroethylene (PTFE) | Free Hanging (In-Line) | 58A 58B 58C RG-58 | Bayonet Lock | 500 V | Crimp | 50 Ohms | 1 | Male Pin Plug | 1 Connector 1 Contact 1 Ferrule 1 Gasket | 85 °C | -55 °C | Silver | Push On |
