PRPC007 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 14POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height	Insulation Height	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Insulation Color	Mounting Type	Shrouding	Contact Finish - Post	Contact Shape	Termination	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Number of Rows [custom]	Style	Contact Type	Insulation Material	Contact Finish - Mating	Number of Rows	Overall Contact Length	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PRPC007DFAN-RC	Flash	Flash	14	13.63 mm	0.537 in	0.098 "	2.5 mm	UL94 V-0	0.1 in	2.54 mm	8.08 mm	0.318 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	2	Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold

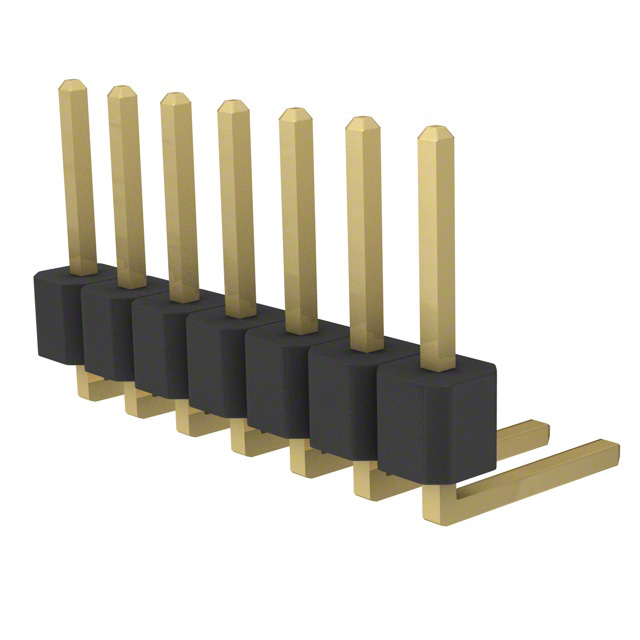

Sullins Connector Solutions PRPC007SBBN-M71RC	Flash	Flash	7			0.098 "	2.5 mm	UL94 V-0			5.84 mm	0.23 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Right Angle Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	5.58 mm	0.22 in		Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold	1

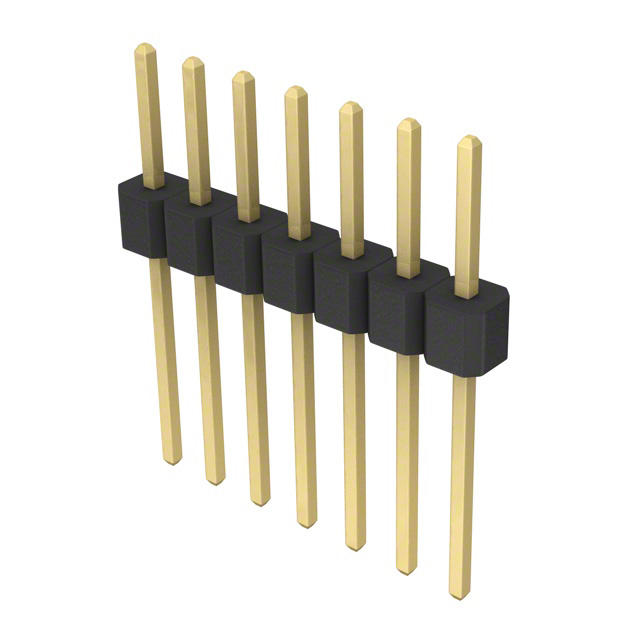

Sullins Connector Solutions PRPC007SADN-RC	Flash	Flash	7			0.098 "	2.5 mm	UL94 V-0			5.84 mm	0.23 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	10.67 mm	0.42 in		Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold	1	19.01 mm	0.748 in
Sullins Connector Solutions PRPC007DFBN-RC	Flash	Flash	14			0.098 "	2.5 mm	UL94 V-0	0.1 in	2.54 mm	8.08 mm	0.318 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	5.58 mm	0.22 in	2	Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold		0.637 in		16.17 mm

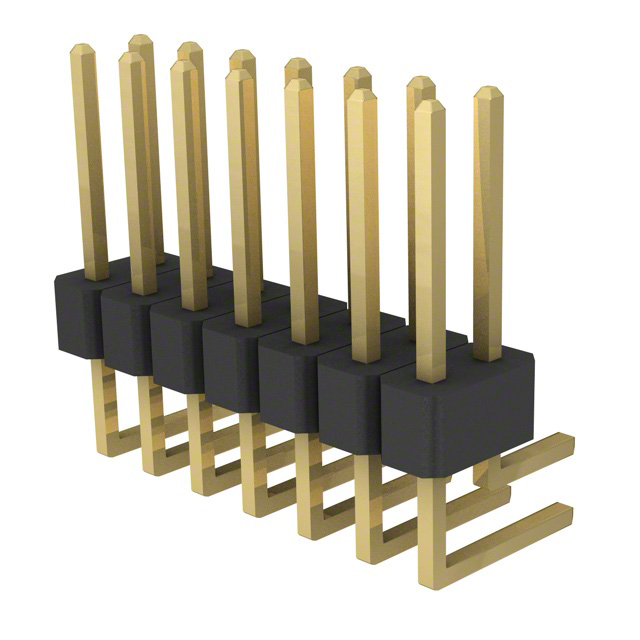

Sullins Connector Solutions PRPC007DGAN-M71RC	Flash	Flash	14			0.197 "	5 mm	UL94 V-0	0.1 in	2.54 mm	8.08 mm	0.318 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Right Angle Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	2	Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold
Sullins Connector Solutions PRPC007DAAN-RC	Flash	Flash	14			0.098 "	2.5 mm	UL94 V-0	0.1 in	2.54 mm	5.84 mm	0.23 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in	2	Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold		11.39 mm	0.448 in
Sullins Connector Solutions PRPC007SACN-RC	Flash	Flash	7	16.47 mm	0.648 in	0.098 "	2.5 mm	UL94 V-0			5.84 mm	0.23 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	8.13 mm	0.32 in		Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold	1

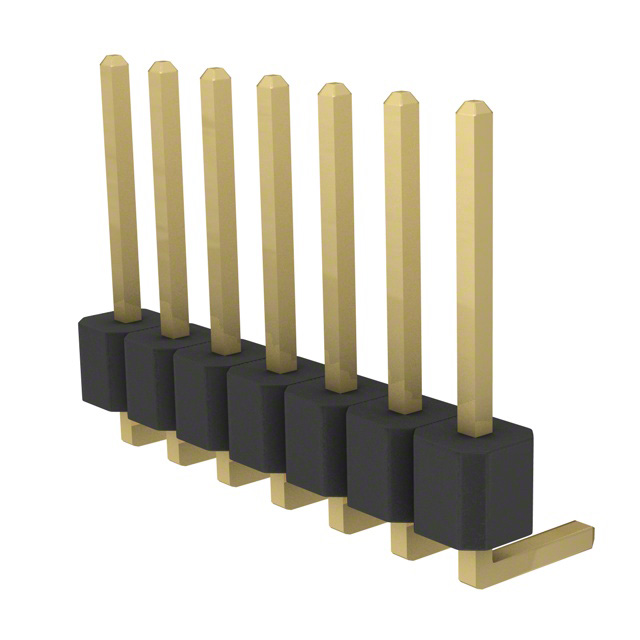

Sullins Connector Solutions PRPC007SGAN-M71RC	Flash	Flash	7			0.098 "	2.5 mm	UL94 V-0			8.08 mm	0.318 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Right Angle Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in		Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold	1
Sullins Connector Solutions PRPC007DABN-RC	Flash	Flash	14			0.098 "	2.5 mm	UL94 V-0	0.1 in	2.54 mm	5.84 mm	0.23 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	5.84 mm	0.23 "	2	Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold		14.18 mm	0.558 in
Sullins Connector Solutions PRPC007SFAN-RC	Flash	Flash	7	13.63 mm	0.537 in	0.098 "	2.5 mm	UL94 V-0			8.08 mm	0.318 in	Push-Pull	All	-40 C	105 ░C	3 A	Header Breakaway	Black	Through Hole	Unshrouded	Gold	Square	Solder	Brass	0.1 "	2.54 mm	3.05 mm	0.12 in		Board to Board Cable	Male Pin	Polybutylene Terephthalate (PBT)	Gold	1
