EE-SV3 Series

Catalog

SENSOR OPT SLOT PHOTOTRAN PCB MT

Part	Response Time	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Sensing Method	Sensing Distance	Sensing Distance	Current - DC Forward (If) (Max)	Output Configuration	Package / Case	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type

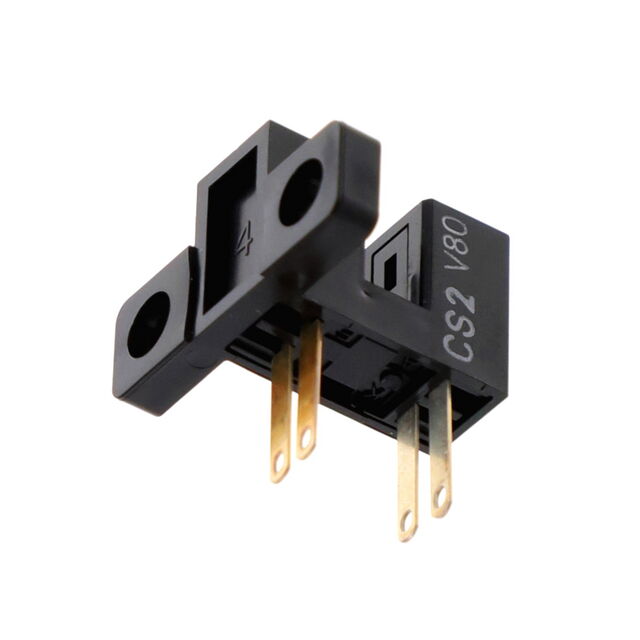

Omron Electronics Inc-EMC Div EE-SV3-CS	4 µs	20 mA	30 V	Through-Beam	0.134 in	3.4 mm	50 mA	Phototransistor	PCB Mount	Solder	-25 °C	85 °C	Unamplified

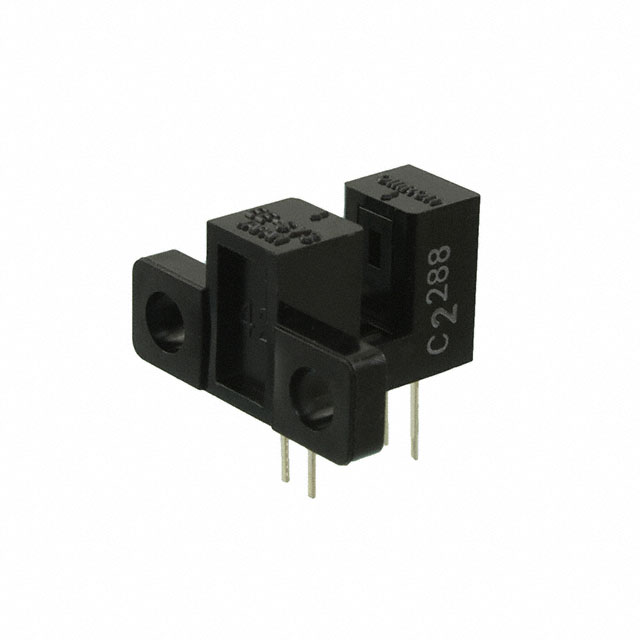

Omron Electronics Inc-EMC Div EE-SV3-C	4 µs	20 mA	30 V	Through-Beam	0.134 in	3.4 mm	50 mA	Phototransistor	PCB Mount	Through Hole	-25 °C	85 °C	Unamplified

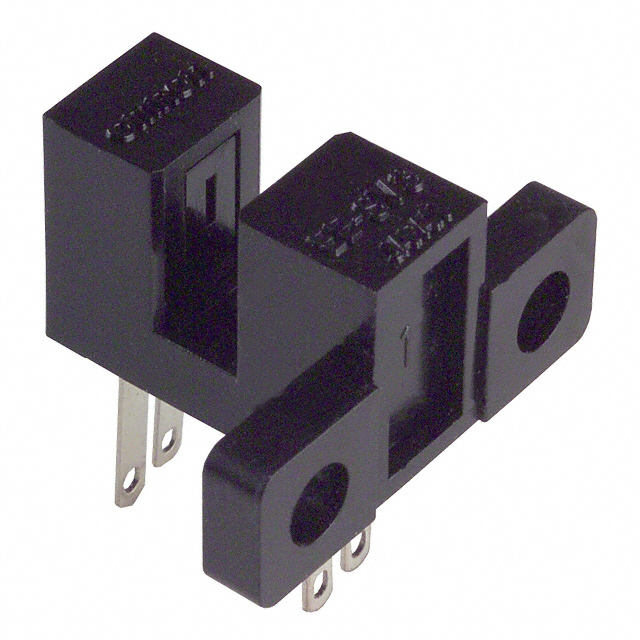

Omron Electronics Inc-EMC Div EE-SV3	4 µs	20 mA	30 V	Through-Beam	0.134 in	3.4 mm	50 mA	Phototransistor	Connector Module Slot Type	Chassis Mount	-25 °C	85 °C	Unamplified
