BQ24610 Series

Standalone 1-6 cell Buck battery charge controller with 5V-28V input

Catalog

Standalone 1-6 cell Buck battery charge controller with 5V-28V input

Part	Type	Contents	Supplied Contents	Secondary Attributes [Max]	Secondary Attributes [Min]	Primary Attributes	Primary Attributes	Utilized IC / Part	Function	Programmable Features	Supplier Device Package	Battery Chemistry	Current - Charging	Voltage - Supply (Max) [Max]	Mounting Type	Battery Pack Voltage	Charge Current - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Cells [Min]	Number of Cells [Max]	Package / Case	Fault Protection	Secondary Attributes	Primary Attributes [Max]

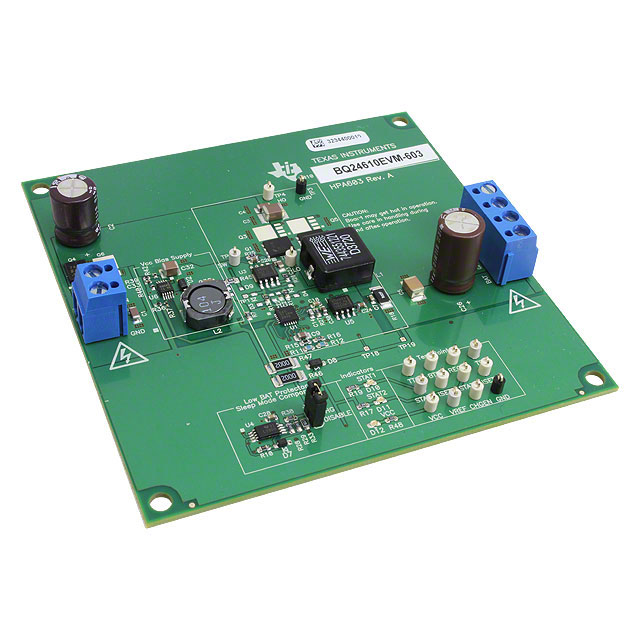

Texas Instruments BQ24610EVM-603	Power Management	Board(s)	Board(s)	60 V	33 V	Li-Ion Li-Pol	8 LDOs	BQ24610	Battery Charger
Texas Instruments BQ24610RGER										Current	24-VQFN (4x4)	Lithium Ion/Polymer	Constant - Programmable	28 V	Surface Mount	2.1 V	10 A	0 °C	125 ¯C	1	6	24-VFQFN Exposed Pad	Over Current Over Temperature Over Voltage Short Circuit

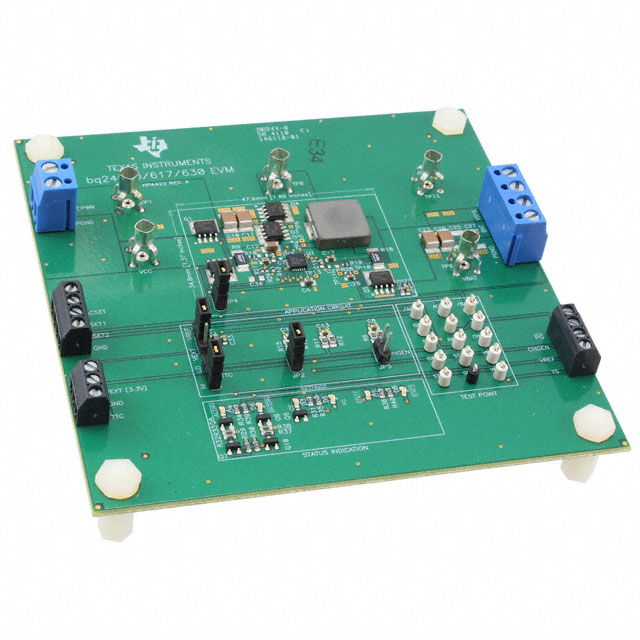

Texas Instruments BQ24610EVM	Power Management	Board(s)	Board(s)			Multi Cell-Li-ion / Li-Polymer		BQ24610	Battery Charger															On-Board LEDs	26 V

Catalog

Standalone 1-6 cell Buck battery charge controller with 5V-28V input

Key Features

• 600-kHz NMOS-NMOS Synchronous buck converterStand-alone charger support for li-ion or li-polymer5-V to 28-V VCC Input operating range and supports 1- to 6-battery cells (BQ24610)5-V to 24-V VCC Input operating range and supports 1- to 5-battery cells (BQ24617)Up to 10-A charge current and adapter currentHigh-accuracy voltage and current regulation±0.5% Charge voltage accuracy±3% Charge current accuracy±3% Adapter current accuracyIntegrationAutomatic system power selection from adapter or batteryNon Power Path option for low total BOM costInternal loop compensation and soft startDynamic power managementSafety protectionInput overvoltage protectionBattery thermistor sense hot and cold charge suspendBattery detectionReverse protection input FETProgrammable safety timerCharge overcurrent protectionBattery short protectionBattery overvoltage protectionThermal shutdownStatus OutputsAdapter presentCharger operation statusCharge enable pin6-V Gate drive for synchronous buck converterEnergy star low quiescent current Iq< 15-µA Off-state battery discharge current< 1.5-mA Off-state input quiescent current600-kHz NMOS-NMOS Synchronous buck converterStand-alone charger support for li-ion or li-polymer5-V to 28-V VCC Input operating range and supports 1- to 6-battery cells (BQ24610)5-V to 24-V VCC Input operating range and supports 1- to 5-battery cells (BQ24617)Up to 10-A charge current and adapter currentHigh-accuracy voltage and current regulation±0.5% Charge voltage accuracy±3% Charge current accuracy±3% Adapter current accuracyIntegrationAutomatic system power selection from adapter or batteryNon Power Path option for low total BOM costInternal loop compensation and soft startDynamic power managementSafety protectionInput overvoltage protectionBattery thermistor sense hot and cold charge suspendBattery detectionReverse protection input FETProgrammable safety timerCharge overcurrent protectionBattery short protectionBattery overvoltage protectionThermal shutdownStatus OutputsAdapter presentCharger operation statusCharge enable pin6-V Gate drive for synchronous buck converterEnergy star low quiescent current Iq< 15-µA Off-state battery discharge current< 1.5-mA Off-state input quiescent current

Description

The BQ2461x is a highly integrated Li-ion, Li-polymer or Lead-acid switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring. The BQ2461x charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The BQ2461x automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage. The BQ2461x is a highly integrated Li-ion, Li-polymer or Lead-acid switched-mode battery charge controller. The device offers a constant-frequency synchronous switching PWM controller with high-accuracy charge current and voltage regulation, charge preconditioning, termination, adapter current regulation, and charge status monitoring. The BQ2461x charges the battery in three phases: preconditioning, constant current, and constant voltage. Charge is terminated when the current reaches a minimum user-selectable level. A programmable charge timer provides a safety backup. The BQ2461x automatically restarts the charge cycle if the battery voltage falls below an internal threshold, and enters a low quiescent current sleep mode when the input voltage falls below the battery voltage.
