NRPN021 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

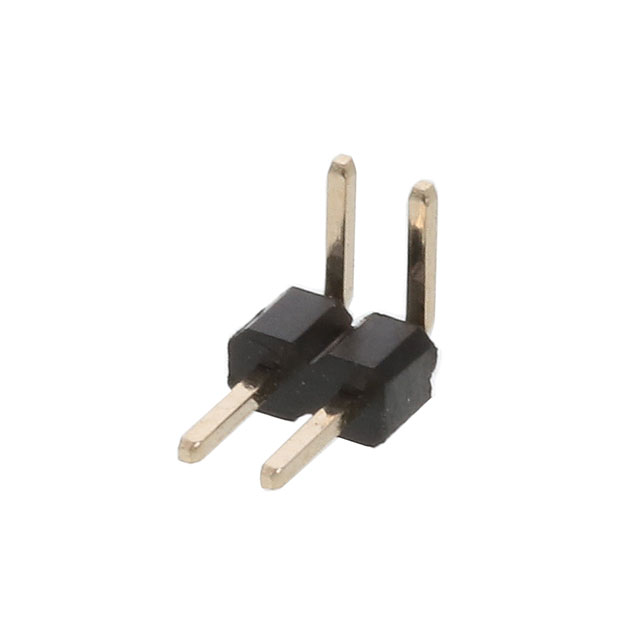

CONN HEADER R/A 2POS 2MM
| Part | Contact Finish Thickness - Post | Contact Length - Post [custom] | Contact Length - Post | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Number of Positions | Current Rating (Amps) | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Material Flammability Rating | Contact Finish - Mating | Contact Finish - Post | Contact Finish Thickness - Mating | Number of Rows | Insulation Material | Termination | Contact Type | Number of Positions Loaded | Contact Material | Mounting Type | Connector Type | Style | Insulation Color | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Flash | 0.11 in | 2.79 mm | Square | -40 C | 105 ░C | Push-Pull | 0.079 " | 2 mm | 2 mm | 0.079 in | 2 | 2 A | 150 VDC | 0.141 in | 3.6 mm | UL94 V-0 | Gold | Gold | Flash | 1 | Nylon 6T Polyamide (PA6T) | Solder | Male Pin | All | Brass | Right Angle Through Hole | Header | Board to Board Cable | Black | Unshrouded |
