HPH2-B Series

Manufacturer: Adam Tech

Catalog

CONN HEADER VERT 12POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Shape	Number of Rows [custom]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Contact Type	Mounting Type	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Contact Material	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Termination	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Voltage Rating	Number of Positions	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Mating

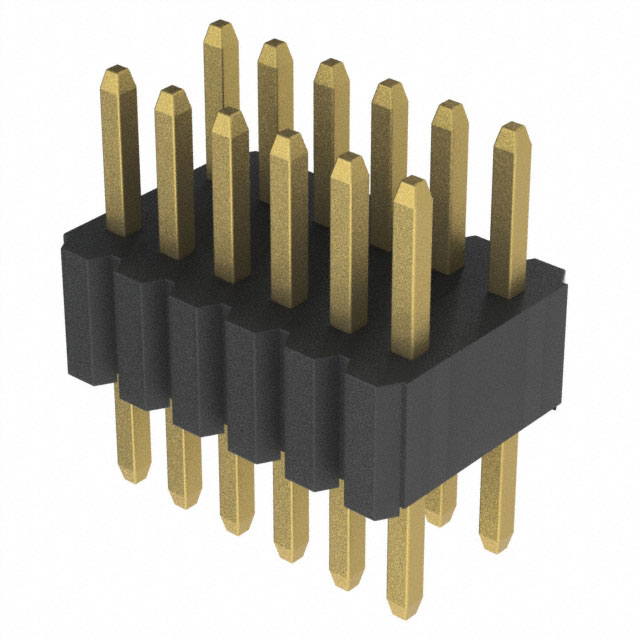

Adam Tech HPH2-B-12-UA	Flash	Square	2	Header	-40 C	105 ░C	Push-Pull	3 mm	0.118 in	All	Black	Male Pin	Through Hole	8.2 mm	0.323 in	Gold	Brass	UL94 V-0	2.67 mm	0.105 in	0.1 in	2.54 mm	Unshrouded	Solder	Flash	1.27 mm	0.05 in	250 VAC	12	Thermoplastic	0.1 in	2.54 mm	Gold

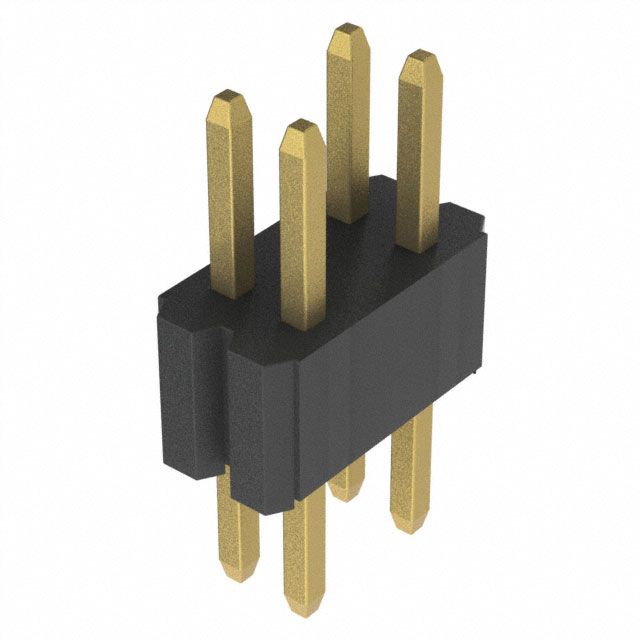

Adam Tech HPH2-B-04-UA	Flash	Square	2	Header	-40 C	105 ░C	Push-Pull	3 mm	0.118 in	All	Black	Male Pin	Through Hole	8.2 mm	0.323 in	Gold	Brass	UL94 V-0	2.67 mm	0.105 in	0.1 in	2.54 mm	Unshrouded	Solder	Flash	1.27 mm	0.05 in	250 VAC	4	Thermoplastic	0.1 in	2.54 mm	Gold
