AWG28-30 Series

Catalog

CBL RIBN 30COND 0.05 MULTI 10'

Part	Insulation Resistance	Spool Size [x]	Spool Size [x]	First Conductor Mark	Length	Conductor Material	Pitch	Pitch	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Operating Temperature	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Thickness	Ribbon Thickness	Shielding	Jacket Color	Length [x]	Length [x]	Ratings	Number of Conductors	Cable Type	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]

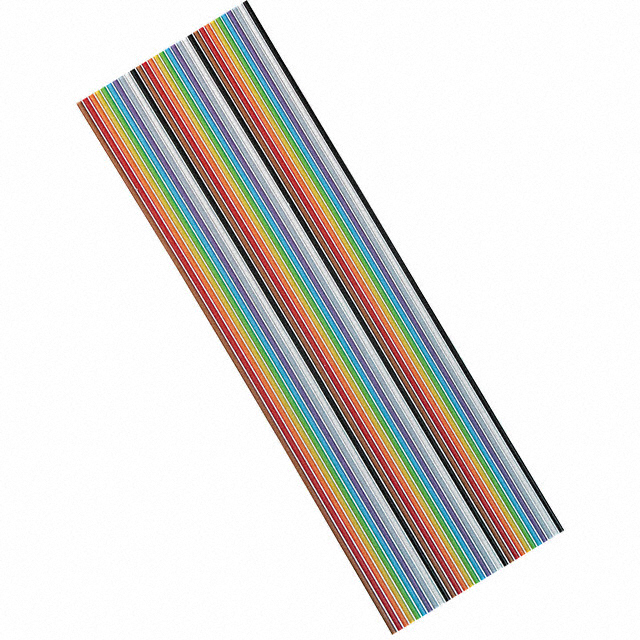

Assmann WSW Components AWG28-30/F/300	100 MOhms	300 ft	91.44 m	Red	Enter Number of Feet in Order Quantity	Copper Tinned	0.05 in	1.27 mm	300 VDC	Poly-Vinyl Chloride (PVC)	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	105 C	38.1 mm	1.5 in	0.89 mm	0.035 in	Unshielded	Multiple	50 ft	15.24 m	UL Style 2651	30	Flat Cable	28 AWG

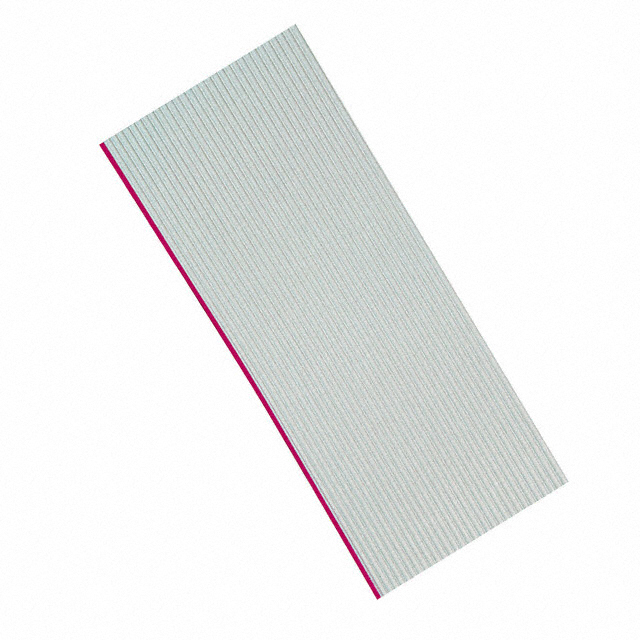

Assmann WSW Components AWG28-30/G/300	100 MOhms			Red		Copper Tinned	0.05 in	1.27 mm	300 VDC	Poly-Vinyl Chloride (PVC)	36 AWG	7 Strands	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in		38.1 mm	1.5 in	0.89 mm	0.035 in	Unshielded	Gray	50 ft	15.24 m	UL Style 2651	30	Flat Cable	28 AWG	-10 °C	105 ░C
Assmann WSW Components AWG28-30/G-1/300	100 MOhms			Red		Copper Tinned	0.039 in	1 mm	300 VDC	Poly-Vinyl Chloride (PVC)	36 AWG	7 Strands	91440 mm	3600 in		30 mm	1.181 in	0.89 mm	0.035 in	Unshielded	Gray			UL Style 2651	30	Flat Cable	28 AWG	-10 °C	105 ░C
