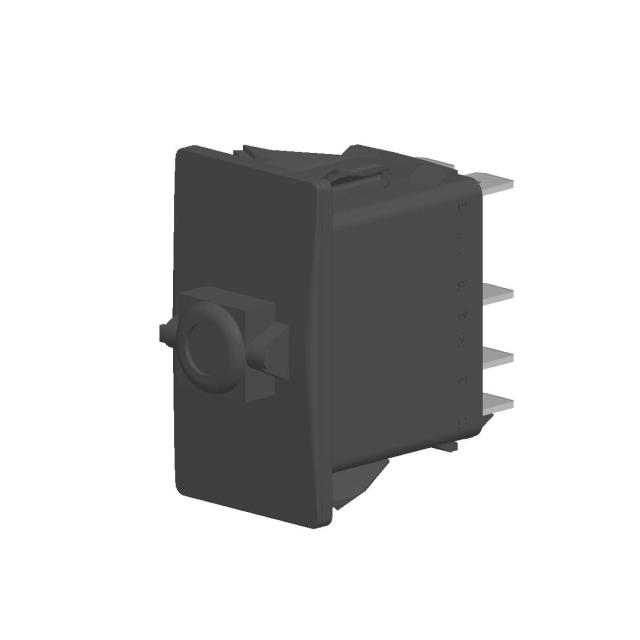

VAD2U66B Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH ROCKER DPST 20A 12V
| Part | Color - Actuator/Cap | Approval Agency | Ingress Protection | Actuator Type | Circuit | Voltage Rating - DC | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Mounting Type | Electrical Life | Mechanical Life | Termination Style | Current Rating (Amps) | Actuator Marking | Illumination Type, Color | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Illumination Voltage (Nominal) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Carling Technologies | Black | CSA UL VDE | IP66/IP68 | Convex (Reverse V) - Illuminated | DPST | 12 V | 85 °C | -40 °C | On-Off | Panel Mount Snap-In | 100000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | 20 A | No Marking | Green/Green Incandescent | 21.08 mm | 36.83 mm | 12 VAC/DC |
 Carling Technologies | CSA UL VDE | IP66/IP68 | Convex (Reverse V) - Illuminated | DPST | 12 V | 85 °C | -40 °C | On-Off | Panel Mount Snap-In | 100000 Cycles | 100000 Cycles | Quick Connect - 0.250" (6.3mm) | 20 A | Varies by Cap | Incandescent | 21.08 mm | 36.83 mm | 12 VAC/DC |
