1734261 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN HEADER SMD R/A 2POS 1.25MM

Part	Applications	Material Flammability Rating	Contact Shape	Number of Positions	Features	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Style	Pitch - Mating	Pitch - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Connector Type	Insulation Color	Number of Rows	Number of Positions Loaded	Shrouding	Voltage Rating	Contact Type	Insulation Material	Mounting Type

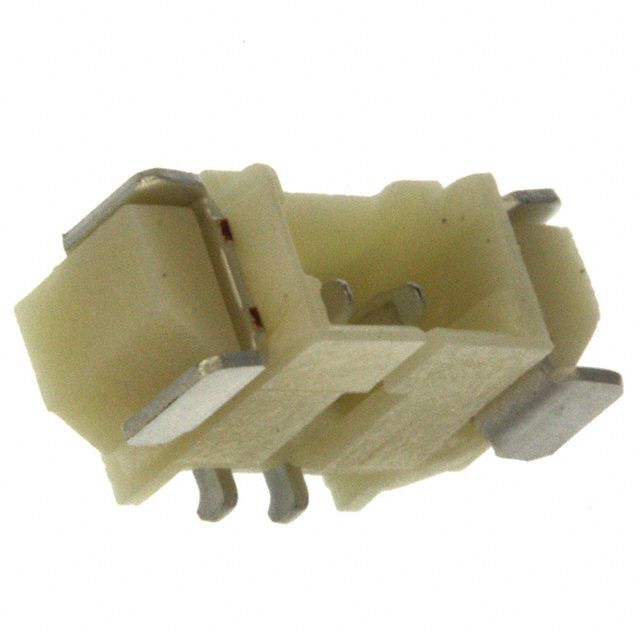

TE Connectivity AMP Connectors 1734261-2	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	2	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount
TE Connectivity AMP Connectors 1734261-5	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	5	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

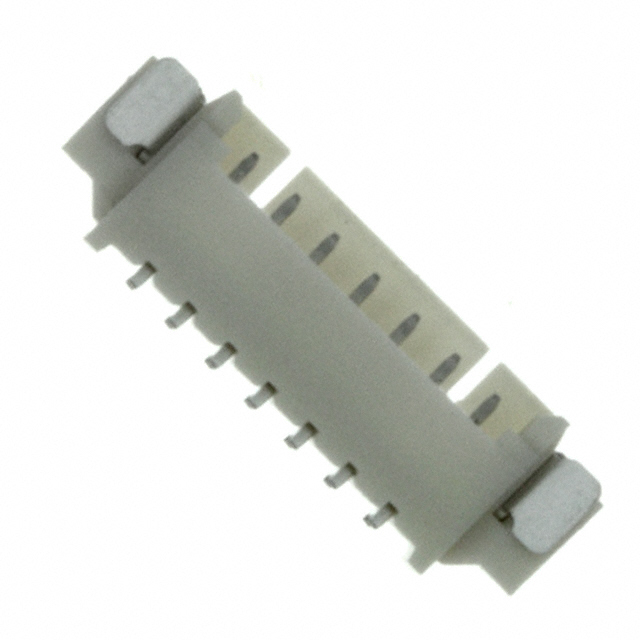

TE Connectivity AMP Connectors 1734261-7	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	7	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

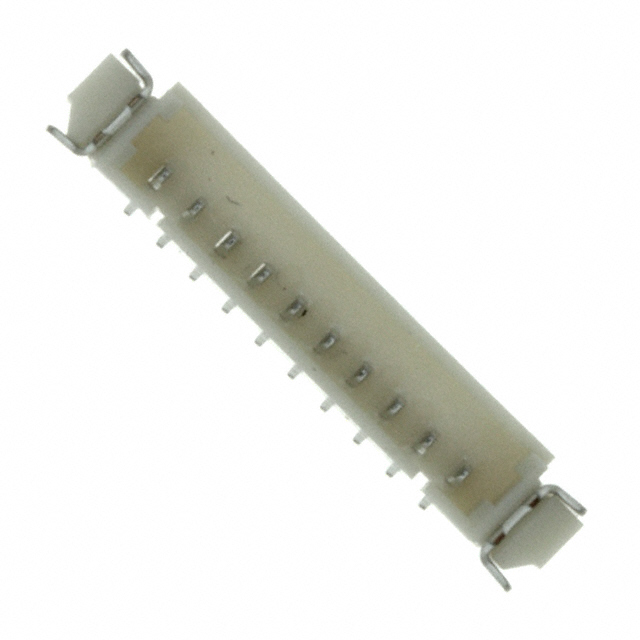

TE Connectivity AMP Connectors 1-1734261-0	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	10	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount
TE Connectivity AMP Connectors 1-1734261-1	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	11	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

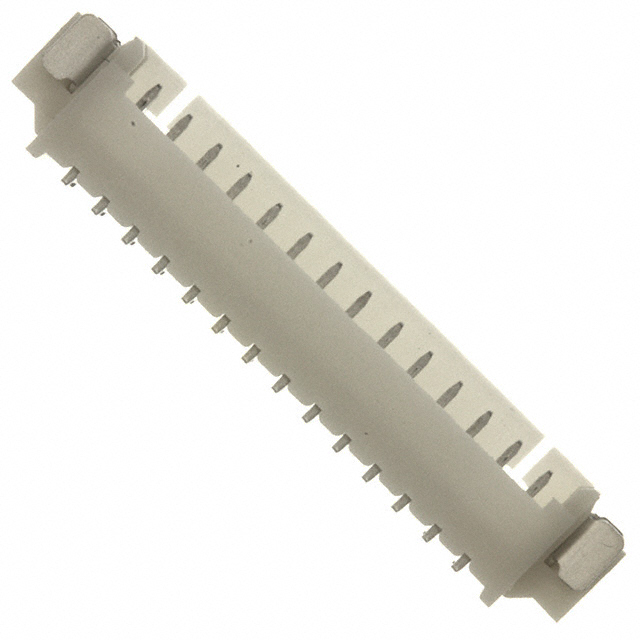

TE Connectivity AMP Connectors 1-1734261-4	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	14	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

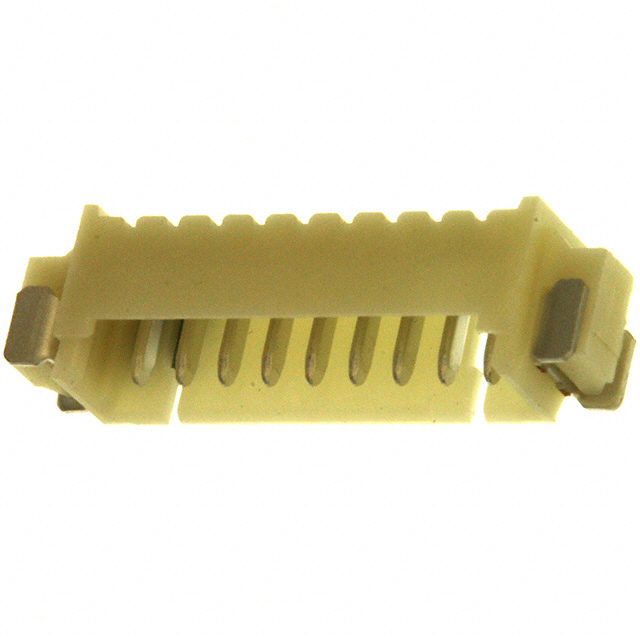

TE Connectivity AMP Connectors 1734261-9	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	9	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

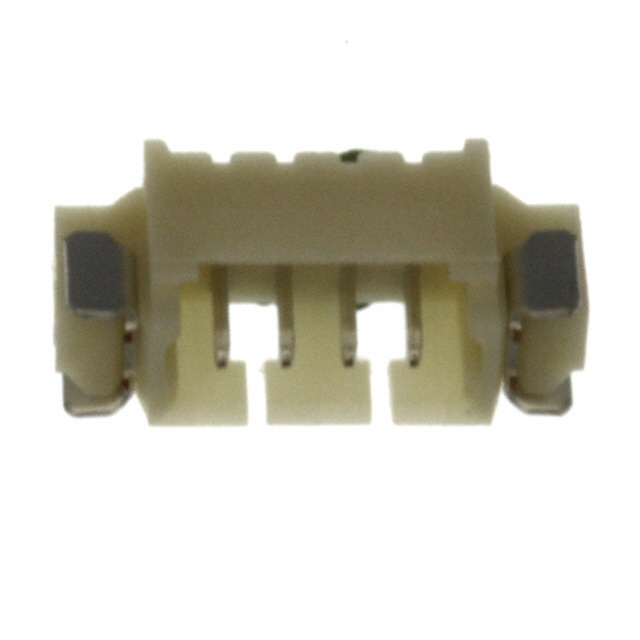

TE Connectivity AMP Connectors 1734261-4	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	4	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount
TE Connectivity AMP Connectors 1-1734261-3	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular	13	Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount

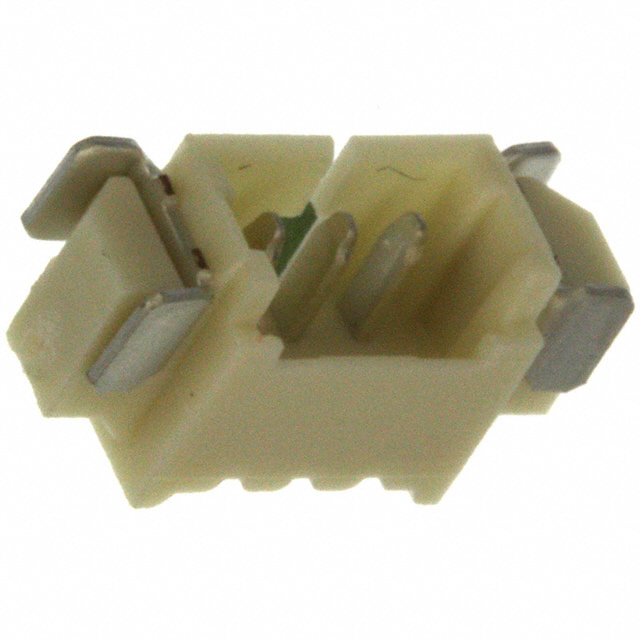

TE Connectivity AMP Connectors 1734261-3	Automotive General Purpose Industrial Medical	UL94 V-0	Rectangular		Solder Retention	Solder	100 çin	2.54 çm	Phosphor Bronze	Board to Cable/Wire	0.049 in	1.25 mm	85 °C	-25 °C	Tin	3.46 mm	0.136 in	Header	Natural	1	All	Shrouded - 4 Wall	100 VAC	Male Pin	Thermoplastic	Right Angle Surface Mount
