R14433 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

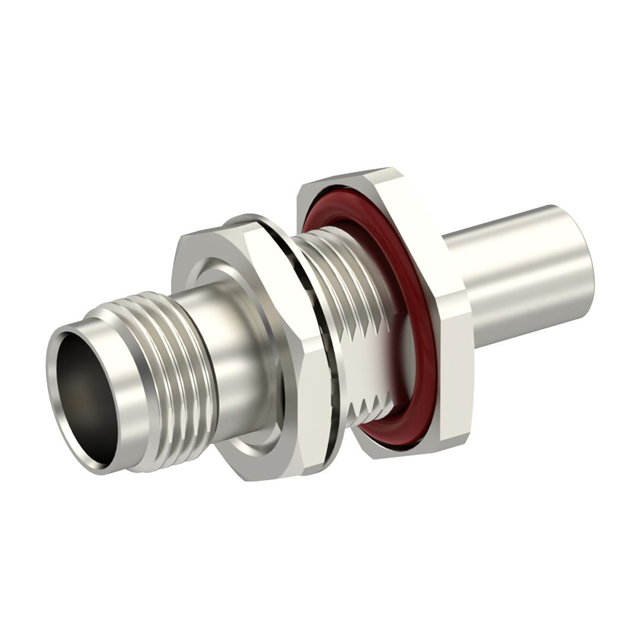

TNC / STRAIGHT BULKHEAD JACK CRI
| Part | Dielectric Material | Body Material | Body Finish | Insertion Loss | Mating Cycles | Voltage Rating | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Connector Style | Housing Color | Shield Termination | Impedance | Frequency - Max [Max] | Mounting Feature | Connector Type | Contact Termination | Cable Group | Cable Group | Mounting Type | Number of Ports | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Polytetrafluoroethylene (PTFE) | Brass | Nickel | 0.18 dB | 500 | 500 V | Gold | -35 °C | 70 °C | Threaded | TNC | Silver | Crimp | 75 Ohms | 1.5 GHz | Bulkhead - Front Side Nut | Female Socket Jack | Crimp | RG-59 | 62 | Panel Mount | 1 | Brass |
