CPMC Series
Manufacturer: Cinch Connectivity Solutions AIM-Cambridge
Beta
⌘K

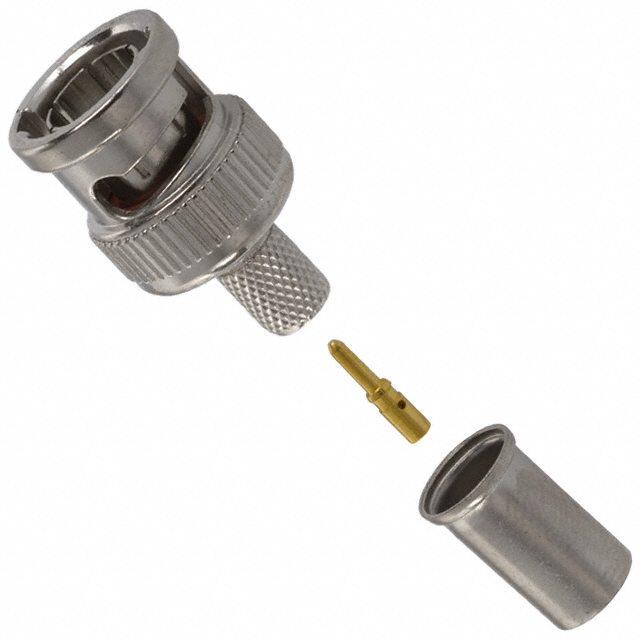

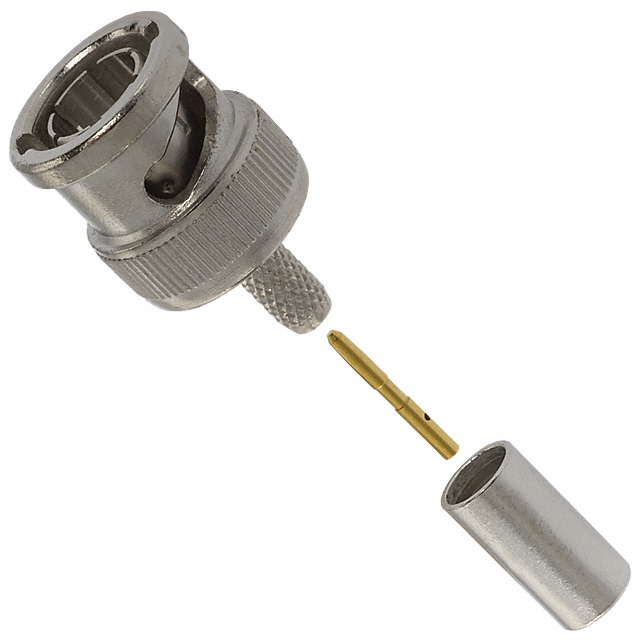

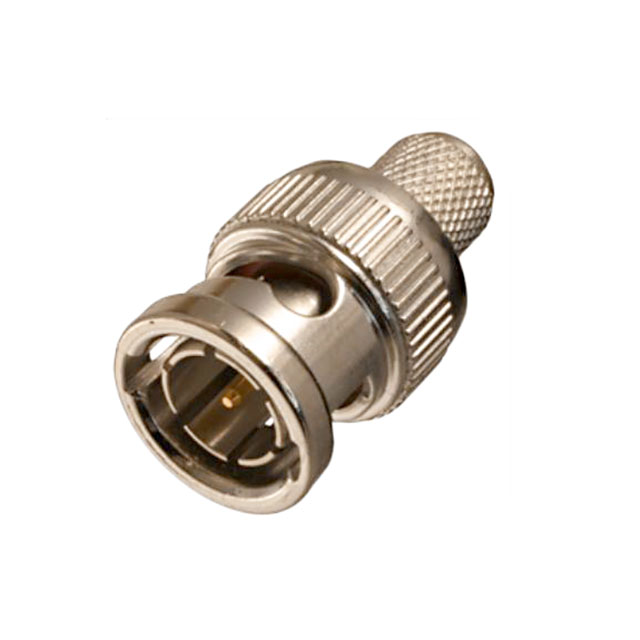

CONN BNC PLUG STR 75 OHM CRIMP
| Part | Voltage Rating | Body Finish | Dielectric Material | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Cable Group | Center Contact Material | Connector Type | Number of Ports | Shield Termination | Housing Color | Connector Style | Frequency - Max [Max] | Mounting Type | Fastening Type | Contact Termination | Impedance | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions AIM-Cambridge | 500 V | Nickel | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | Brass | 1505A Belden 734A | Brass | Plug Male Pin | 1 | Crimp | Silver | BNC | 3 GHz | Free Hanging (In-Line) | Bayonet Lock | Crimp Solder | 75 Ohms | |
 Cinch Connectivity Solutions AIM-Cambridge | 500 V | Nickel | Polytetrafluoroethylene (PTFE) | 500 | -55 C | 85 °C | Gold | Brass | 62 Belden 1505A RG-59 | Brass | Plug Male Pin | 1 | Crimp | Silver | BNC | 2 GHz | Free Hanging (In-Line) | Bayonet Lock | Crimp Solder | 75 Ohms | |
 Cinch Connectivity Solutions AIM-Cambridge | 500 V | Nickel | Polytetrafluoroethylene (PTFE) | 500 | -65 ░C | 165 °C | Gold | Brass | Belden 735A | Brass | Plug Male Pin | 1 | Crimp | Silver | BNC | 3 GHz | Free Hanging (In-Line) | Bayonet Lock | Crimp Solder | 75 Ohms | |
 Cinch Connectivity Solutions AIM-Cambridge | Nickel | Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | AT&T 735A Belden 8218 | Brass | Plug Male Pin | 1 | Crimp | Silver | BNC | 2 GHz | Free Hanging (In-Line) | Bayonet Lock | Crimp | 75 Ohms | 1 Connector 1 Contact 1 Ferrule |
