CPC1001 Series
Manufacturer: Littelfuse/Commercial Vehicle Products
Beta
⌘K
UNIDIRECTIONAL SINGLE TRANSISTOR OPTO/ TUBE ROHS COMPLIANT: YES
| Part | Package / Case | Turn On / Turn Off Time (Typ) | Current Transfer Ratio (Max) | Vce Saturation (Max) [Max] | Voltage - Output (Max) [Max] | Current Transfer Ratio (Min) [Min] | Mounting Type | Number of Channels | Output Type | Input Type | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

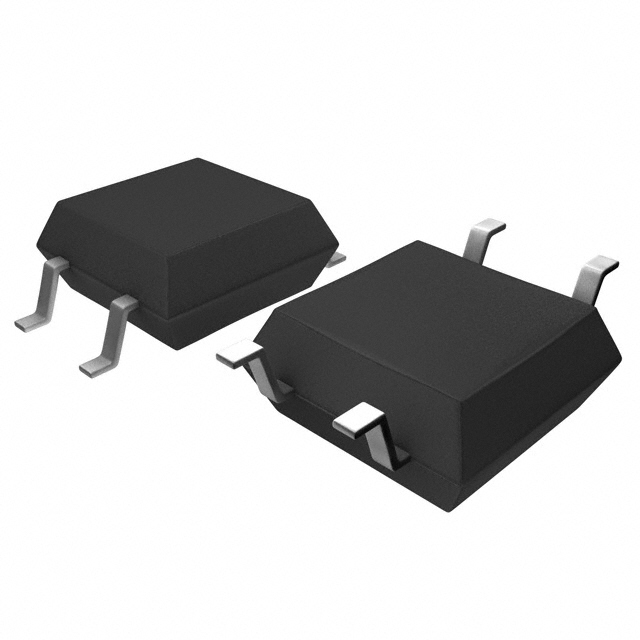

 Littelfuse/Commercial Vehicle Products | 4-SMD Gull Wing | 1 µs 30 µs | 800 % | 300 mV | 30 V | 100 % | Surface Mount | 1 | 1.81 mOhm | DC | 1500 VAC | 85 °C | -40 °C |
