M2015ES Series

Catalog

SWITCH TOGGLE SPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Voltage Rating - AC	Illumination	Switch Function	Termination Style	Actuator Type	Voltage Rating - DC	Features	Bushing Thread	Actuator Length [x]	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]

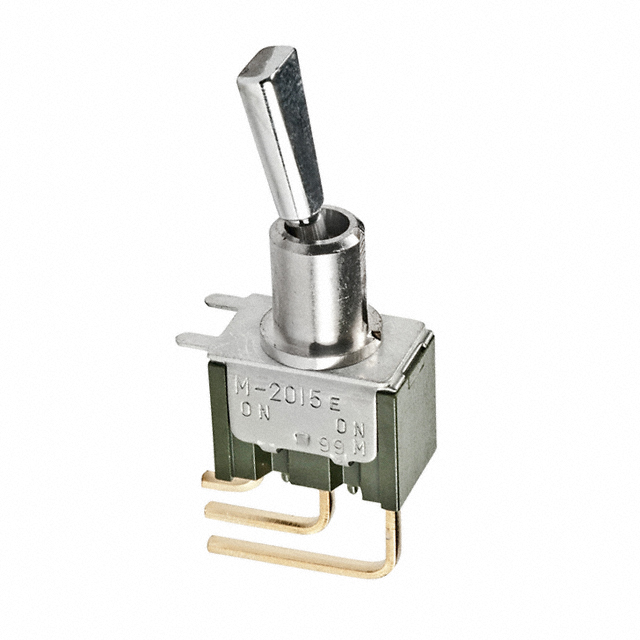

NKK Switches M2015ES2G45	Brass Chrome Plated	50000 Cycles	28 V	Non-Illuminated	On-Mom	PC Pin	Flatted	28 V	Epoxy Sealed Terminals	Unthreaded	11.4 mm	6.5 mm	SPDT	Right Angle Through Hole Vertical	0.4 VA	85 °C	-30 ░C

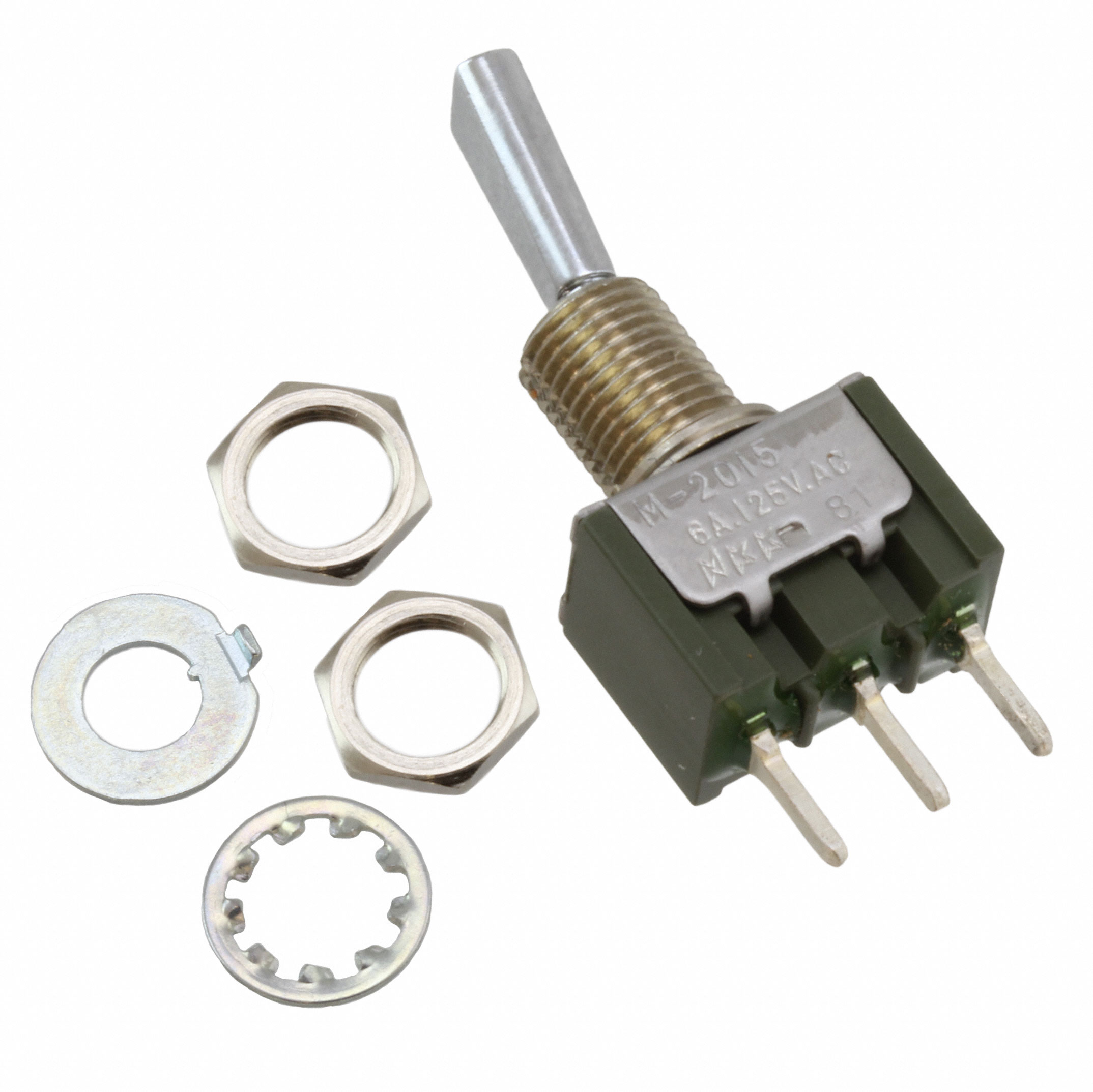

NKK Switches M2015ES1W03	Brass Chrome Plated	25000 Steps	125 V	Non-Illuminated	On-Mom	PC Pin	Flatted	30 V	Epoxy Sealed Terminals	1/4-40	11.4 mm	6.5 mm	SPDT	Panel Mount	3 A 6 A	85 °C	-30 ░C
NKK Switches M2015ES1G40	Brass Chrome Plated	50000 Cycles	28 V	Non-Illuminated	On-Mom	PC Pin	Flatted	28 V	Epoxy Sealed Terminals	1/4-40	11.4 mm	6.5 mm	SPDT	Panel Mount Right Angle Vertical	0.4 VA	85 °C	-30 ░C
NKK Switches M2015ES1W01	Brass Chrome Plated	25000 Steps	125 V	Non-Illuminated	On-Mom	Solder Lug	Flatted	30 V	Epoxy Sealed Terminals	1/4-40	11.4 mm	6.5 mm	SPDT	Panel Mount	3 A 6 A	85 °C	-30 ░C
